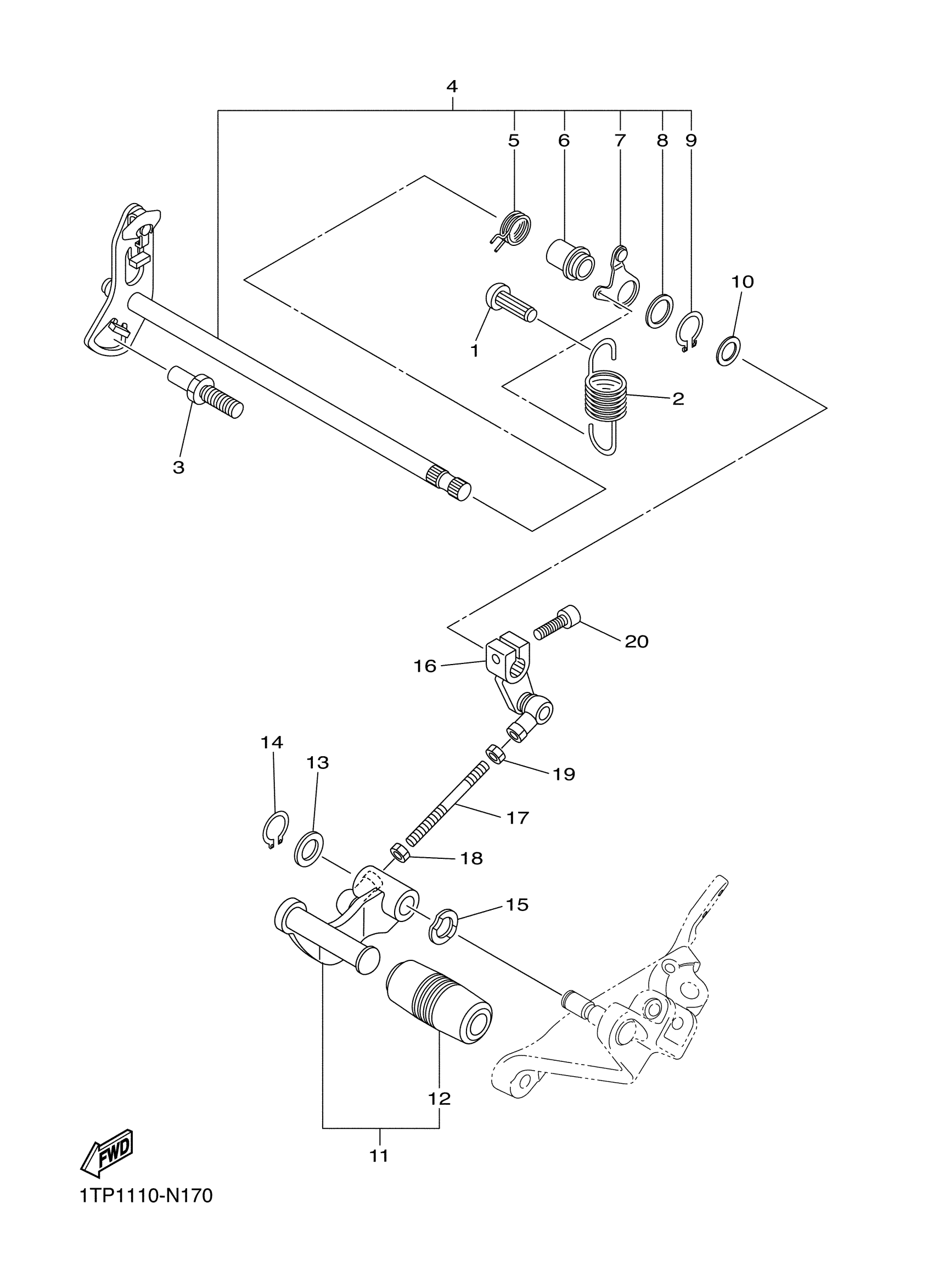

Find the part on the Shift Shaft diagram for your 2015 Yamaha Bolt R Spec (XVS95CFS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Yamaha Bolt R Spec (XVS95CFS) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOOK, SPRING

132-16346-00-00

1
Out of stock

2

SPRING, TENSION

90506-18015-00

—
Out of stock

3

STOPPER, SCREW

5VK-18127-00-00

—
Out of stock

4

SHIFT SHAFT ASSY

3D8-18101-01-00

1
Out of stock

5

SPRING, TORSION

90508-32040-00

1
Out of stock

6

SPACER

3D8-18175-00-00

—
Out of stock

7

STOPPER LEVER ASSY

3D8-18140-00-00

1
Out of stock

8

WASHER, PLATE (30X)

90201-177G4-00

1
Out of stock

9

CIRCLIP(1EY)

99009-17400-00

1
Out of stock

10

WASHER, PLATE (5N6)

90201-127E1-00

1
Out of stock

11

SHIFT PEDAL ASSY

1TP-18110-00-00

1
Out of stock

12

COVER, SHIFT PEDAL

5VN-18113-00-00

1
Out of stock

13

WASHER, PLATE (5K7)

90201-124E4-00

1
Out of stock

14

CIRCLIP(10Y)

99009-12400-00

1
Out of stock

15

WASHER, WAVE (17W)

90206-12074-00

1
Out of stock

16

ARM, SHIFT

1TP-18112-00-00

—
Out of stock

17

ROD, SHIFT

1TP-18115-00-00

—
Out of stock

18

NUT

90170-06024-00

—
Out of stock

19

NUT, HEXAGON

95314-06600-00

—
Out of stock

20

BOLT,SOCKET HEAD

91314-06020-00

—
Out of stock
