2015 Yamaha Bolt R Spec (XVS95CFS) Intake 2 Diagram

← All diagrams

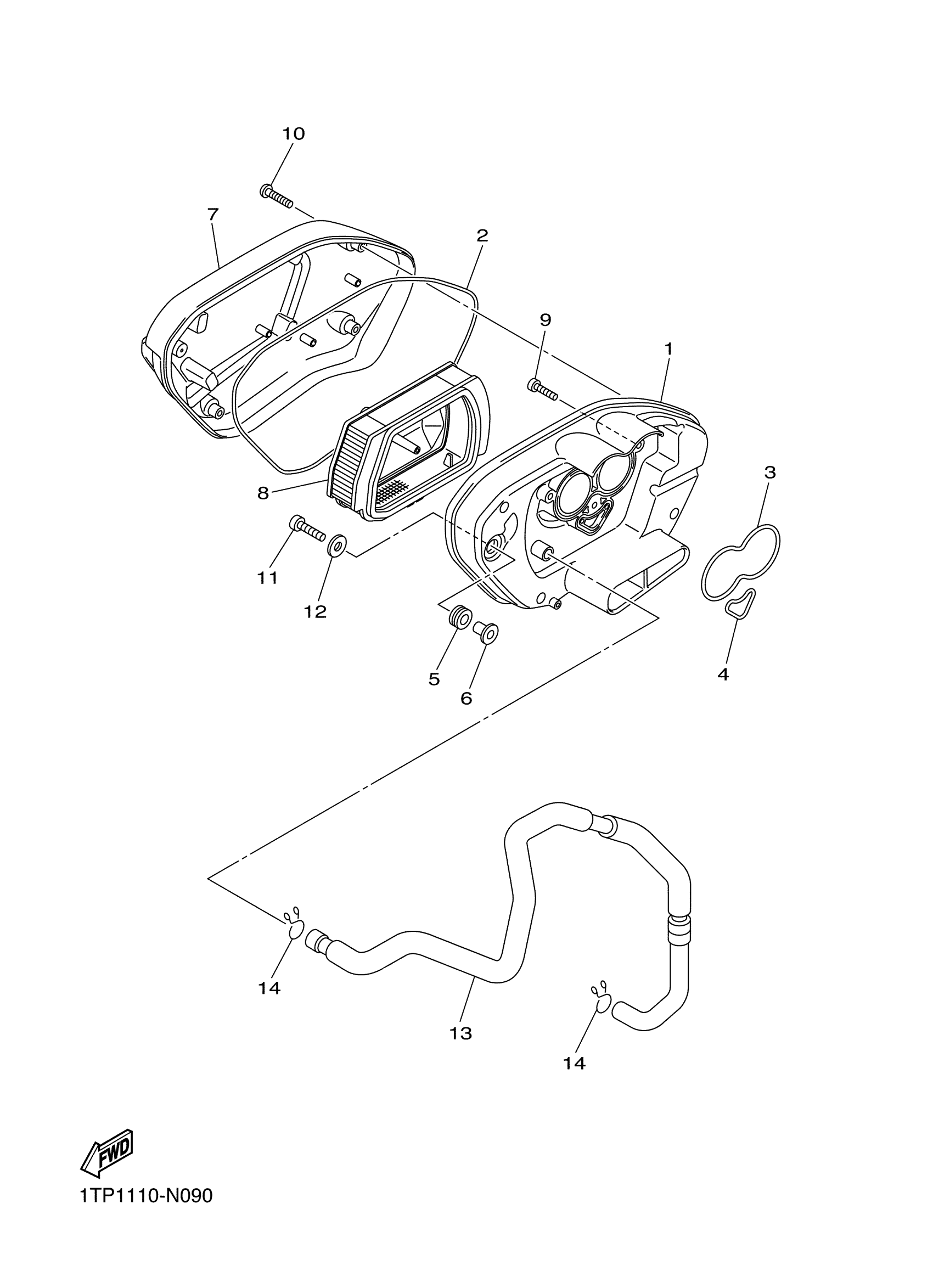

Find the part on the Intake 2 diagram for your 2015 Yamaha Bolt R Spec (XVS95CFS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Yamaha Bolt R Spec (XVS95CFS) Intake 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

1TP-14411-00-00

—

$80.49

In stock

2

SEAL

1TP-14452-00-00

1

$15.55

In stock

3

SEAL

3D8-14457-00-00

1

$5.93

In stock

4

SEAL

3D8-14462-00-00

1

$5.93

In stock

5

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

6

COLLAR

90387-06158-00

1

$6.17

In stock

7

CAP ASSY, AIR CLEANER

1TP-14402-00-00

—

$398.89

In stock

8

ELEMENT, AIR CLEANER

1TP-14451-00-00

1

$39.59

In stock

9

BOLT

91312-05025-00

1

$6.25

In stock

10

BOLT,HEX. SOCKET BUTTON

90111-05024-00

1

$3.56

In stock

11

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

12

WASHER PLATE 256216150000

90201-06062-00

1

$7.09

In stock

13

PIPE, BREATHER 1

1TP-11166-00-00

—
Out of stock

14

CLIP(62Y)

90467-15M14-00

1

$3.46

In stock
