2015 Yamaha Bolt R Spec (XVS95CFS) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2015 Yamaha Bolt R Spec (XVS95CFS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

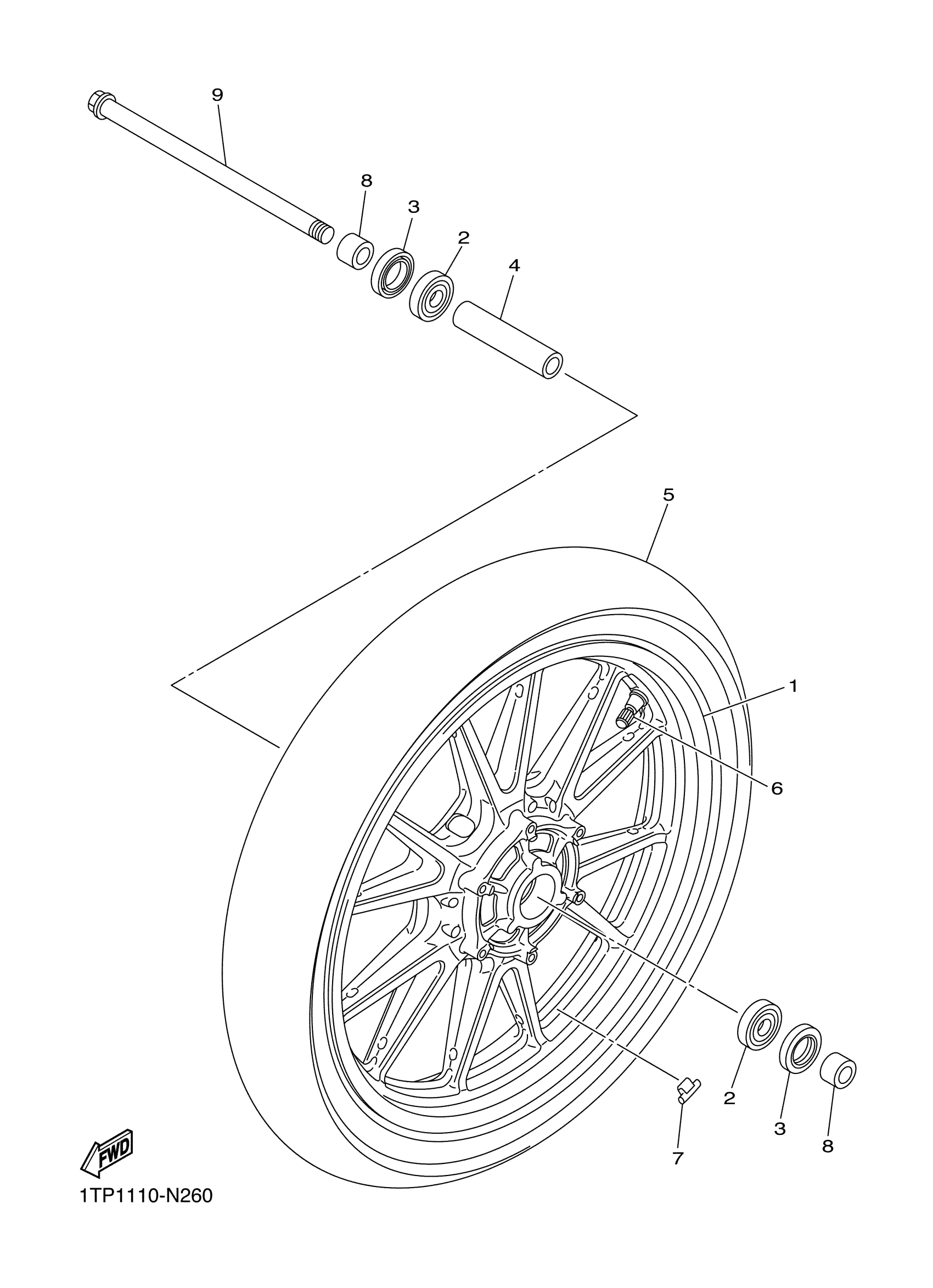

2015 Yamaha Bolt R Spec (XVS95CFS) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAST WHEEL, FRONT

1TP-25168-10-0X

—
Out of stock

2

BEARING(4HM)

93306-30317-00

1
Out of stock

3

OIL SEAL (28X47X7-102)

93102-28022-00

1
Out of stock

4

COLLAR (4H7)

90387-172A5-00

1
Out of stock

5

TIRE(100/90-19 M/C 57H EXEDRA)

94110-19025-00

1
Out of stock

6

VALVE, RIM(2GH)

93900-00030-00

1
Out of stock

7

BALANCER, WHEEL

5MT-25398-00-00

1
Out of stock

7

BALANCER, WHEEL

5MT-25398-10-00

1
Out of stock

7

BALANCER, WHEEL

5MT-25398-20-00

—
Out of stock

8

COLLAR(1UR)

90387-173R6-00

1
Out of stock

9

AXLE, WHEEL

3MA-25181-10-00

1
Out of stock
