- XVS95CFR (BOLT) 1TP50 2015
ELECTRICAL 1

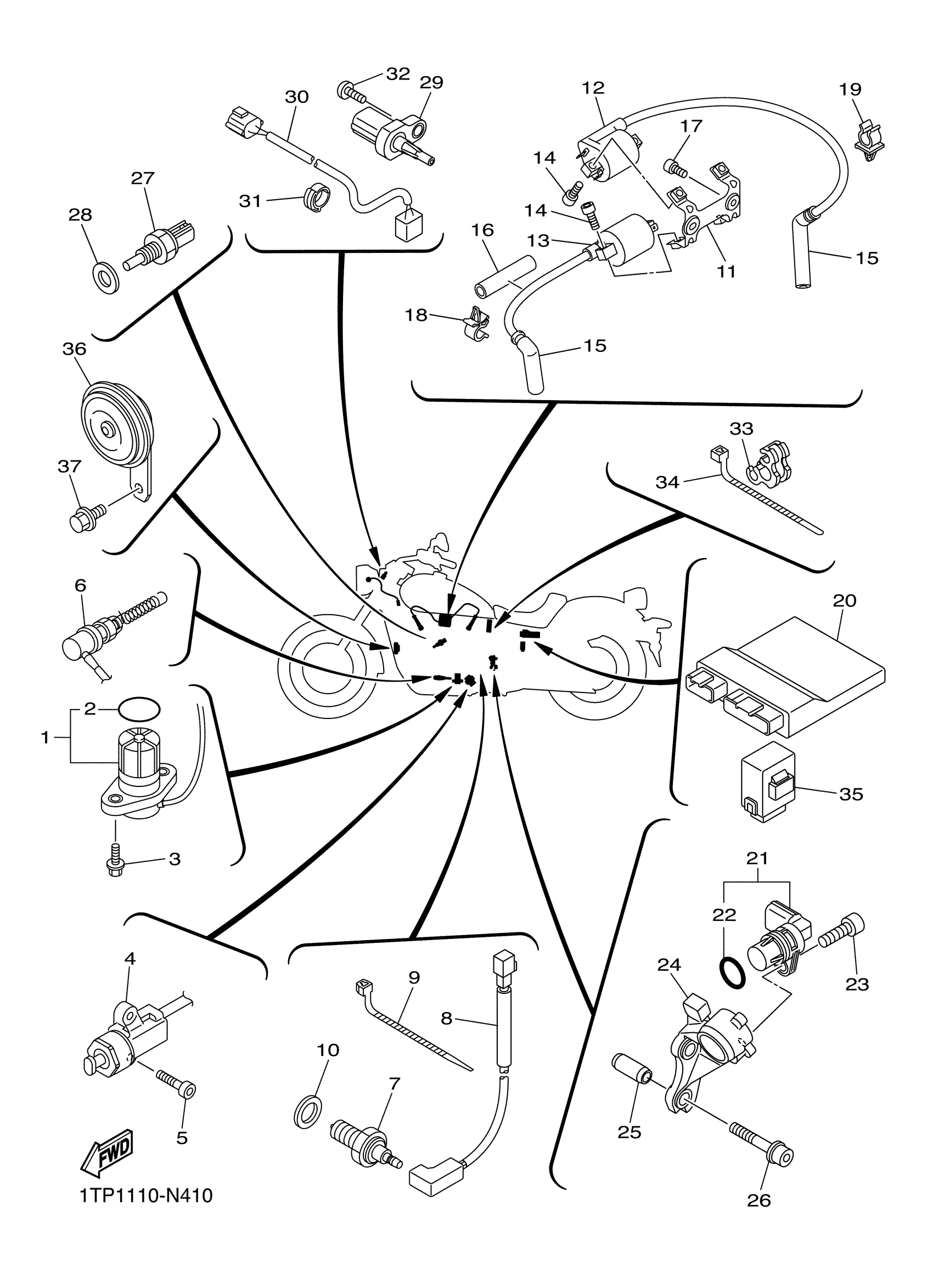

2015 Yamaha Bolt (XVS95CFR) Electrical 1 Diagram
Find the part on the Electrical 1 diagram for your 2015 Yamaha Bolt (XVS95CFR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
12
IGNITION COIL ASSY
1TP-82310-00-00
1
Out of stock
27
THERMO UNIT
52B-H3591-00-00
—
Out of stock
30
WIRE, SUB LEAD
1TP-82509-00-00
—
Out of stock
