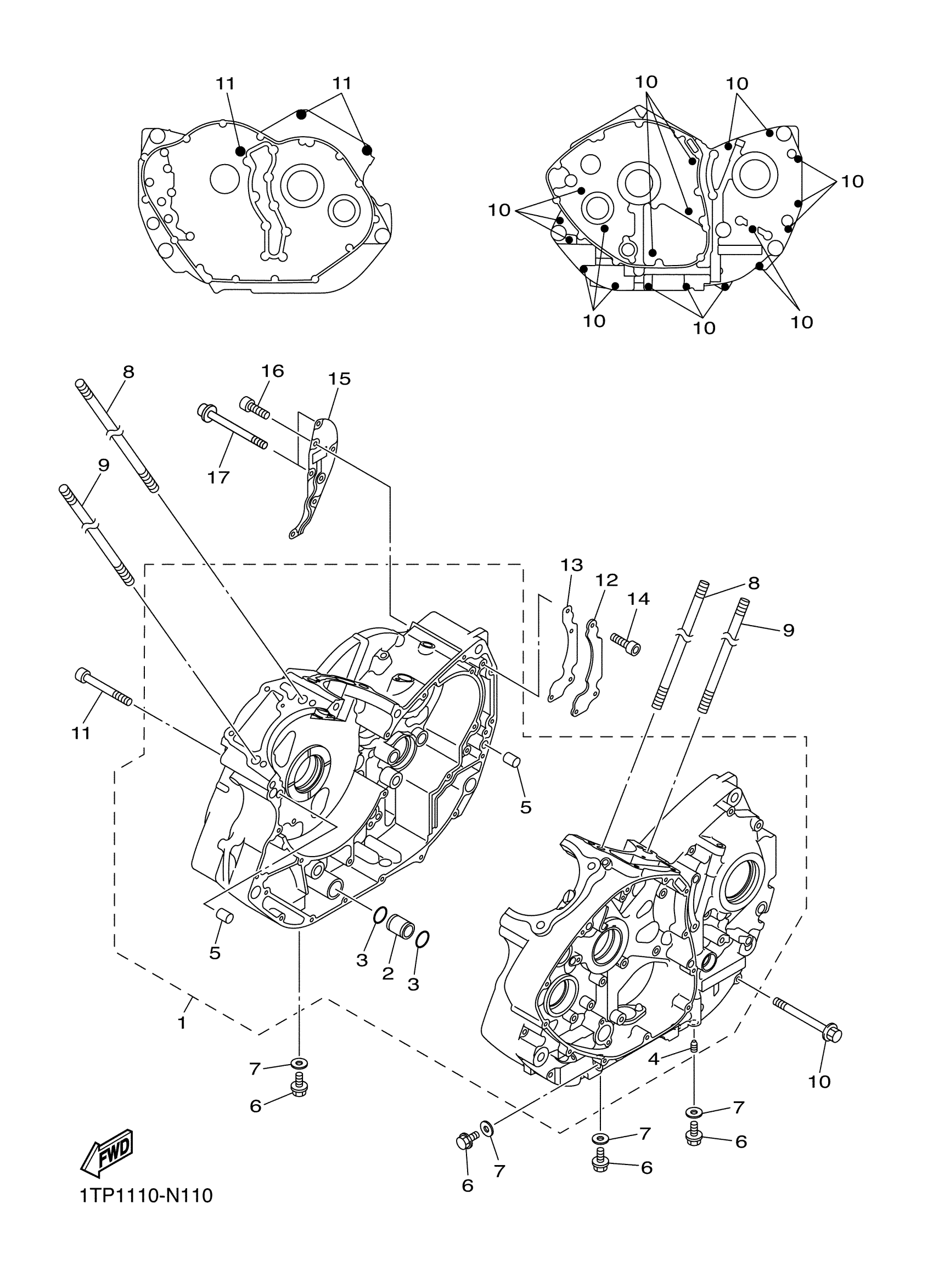

Find the part on the Crankcase diagram for your 2015 Yamaha Bolt (XVS95CFR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Yamaha Bolt (XVS95CFR) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

5S7-15100-09-00

—

$1,482.99

In stock

2

NOZZLE ASSY., 2

3D8-15154-00-00

1

$18.45

In stock

3

O-RING (1J7)

93210-18319-00

1

$6.85

In stock

4

NOZZLE 1

2H7-15138-00-00

—

$4.11

In stock

5

PIN, DOWEL(2VG)

99530-10116-00

1

$3.37

In stock

6

BOLT, FLANGE

95022-10016-00

1

$6.28

In stock

7

GASKET (5R6)

90430-10171-00

1

$3.17

In stock

8

BOLT, STUD

90116-12012-00

—

$14.68

In stock

9

BOLT, STUD

90116-12011-00

—

$13.80

In stock

10

BOLT, FLANGE

90105-06144-00

—

$2.09

In stock

11

BOLT, HEXAGON SOCKET HEAD

90110-10030-00

1

$7.55

In stock

12

SEPARATOR, OIL

3D8-15358-00-00

—

$3.91

In stock

13

GASKET, DRAIN

3D8-15353-00-00

—

$5.32

In stock

14

BOLT,SOCKET

91317-06016-00

1

$1.16

In stock

15

SEPERATOR, OIL

3D8-15368-00-00

—

$41.48

In stock

16

BOLT,SOCKET

91317-06016-00

1

$1.16

In stock

17

BOLT, HEXAGON SOCKET HEAD

90110-06250-00

—

$4.51

In stock
