2014 Yamaha Bolt (XVS95CEW) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2014 Yamaha Bolt (XVS95CEW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

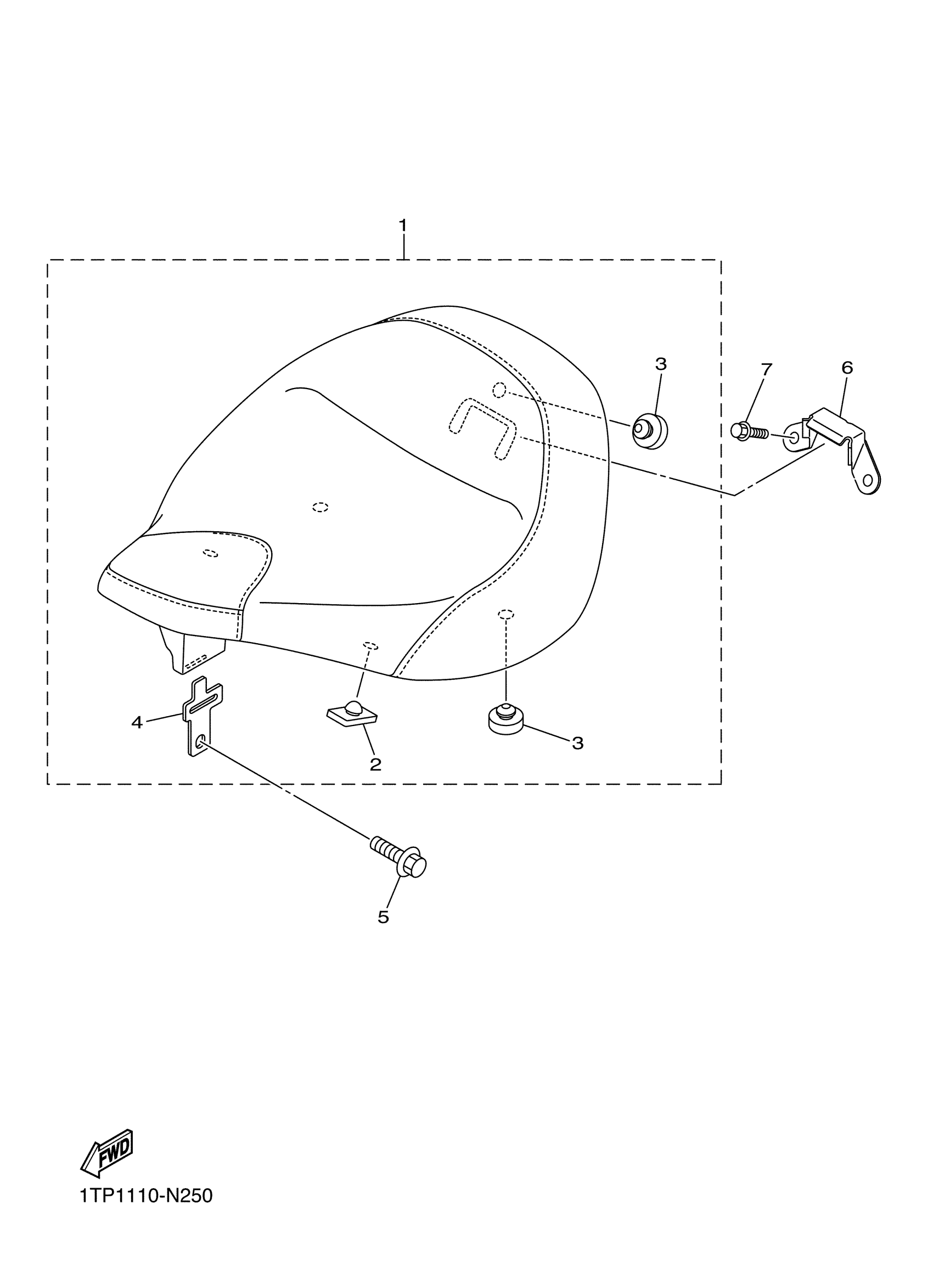

2014 Yamaha Bolt (XVS95CEW) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSY

1TP-24710-01-00

—
Out of stock

2

DAMPER, SEAT

509-24724-00-00

1

$9.46

In stock

3

PAD, SEAT

22W-24741-00-00

1

$7.72

In stock

4

BRACKET, SEAT

1TP-24718-00-00

1

$3.98

In stock

5

BOLT, FLANGE

95022-08014-00

1

$6.25

In stock

6

BRACKET

1TP-2475N-00-00

—

$8.68

In stock

7

BOLT, FLANGE

95022-08012-00

1

$9.51

In stock
