2014 Yamaha Bolt (XVS95CEW) Rear Wheel Diagram

← All diagrams

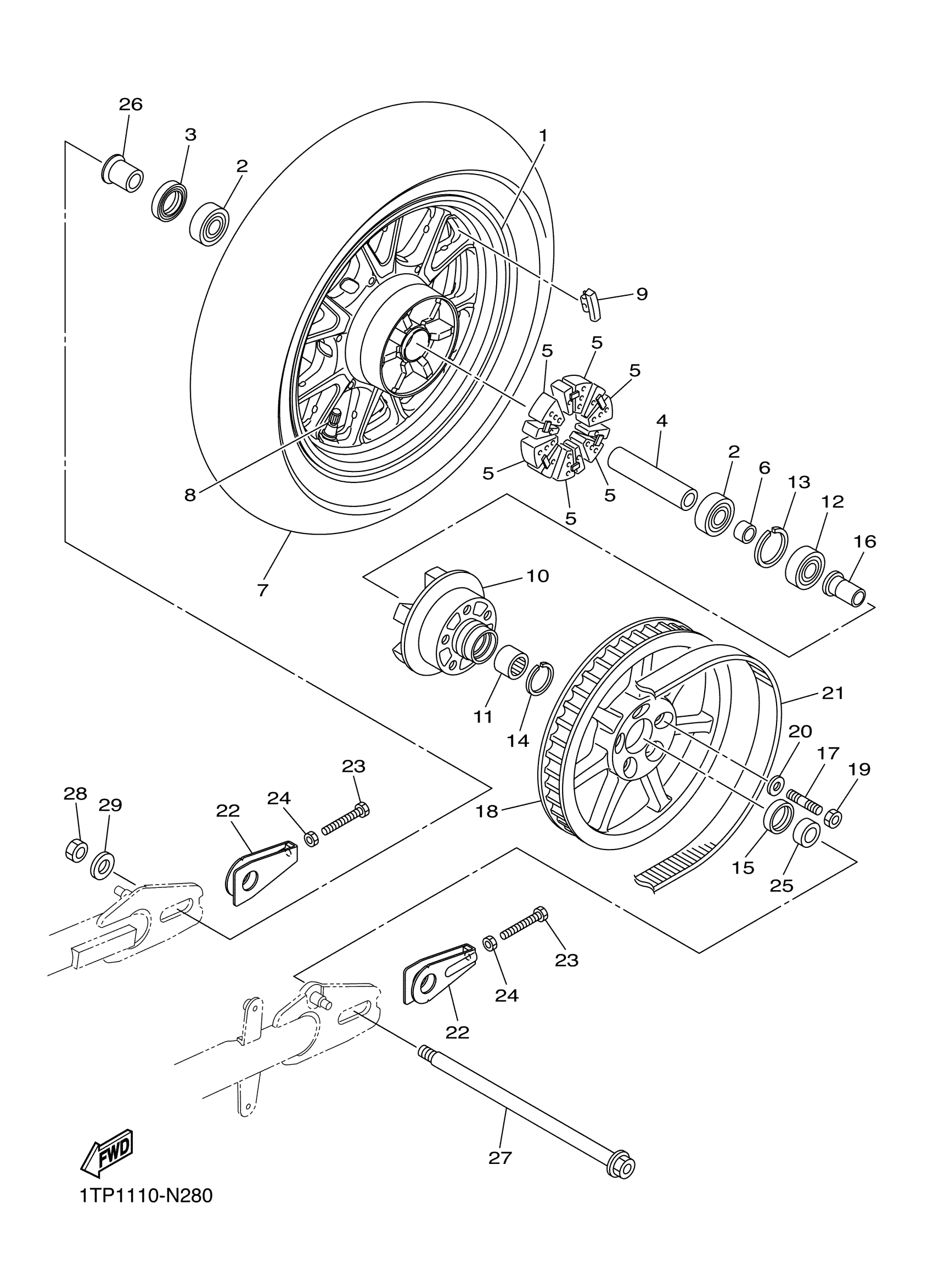

Find the part on the Rear Wheel diagram for your 2014 Yamaha Bolt (XVS95CEW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Yamaha Bolt (XVS95CEW) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAST WHEEL, REAR

1TP-25338-00-00

—
Out of stock

2

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

1
Out of stock

3

OIL SEAL(39X)

93106-28023-00

1
Out of stock

4

SPACER, BEARING

1TP-25317-00-00

1
Out of stock

5

DAMPER

4WM-25364-00-00

—
Out of stock

6

COLLAR, WHEEL

1TP-25383-00-00

1
Out of stock

7

TIRE (150/80B16 M/C 71H EXEDR)

94115-16025-00

1
Out of stock

8

VALVE, RIM(2GH)

93900-00030-00

1
Out of stock

9

BALANCER, WHEEL

5MT-25398-00-00

1
Out of stock

9

BALANCER, WHEEL

5MT-25398-10-00

1
Out of stock

9

BALANCER, WHEEL

5MT-25398-20-00

—
Out of stock

10

CLUTCH, HUB

1TP-25366-00-00

—
Out of stock

11

BEARING

93311-32698-00

1
Out of stock

12

BEARING(3BC)

93306-30437-00

1
Out of stock

13

CIRCLIP(26H)

99009-52500-00

1
Out of stock

14

CIRCLIP

93450-35163-00

—
Out of stock

15

OIL SEAL (30X42X8-102)

93106-30004-00

—
Out of stock

16

COLLAR, WHEEL

4WM-25376-10-00

—
Out of stock

17

BOLT, STUD

95612-12630-00

—
Out of stock

18

SPROCKET, DRIVEN (70T)

1TP-25470-00-00

—
Out of stock

19

NUT, U

95614-12100-00

—
Out of stock

20

WASHER, PLATE

90201-12045-00

—
Out of stock

21

V-BELT

1TP-46241-10-00

—
Out of stock

22

PULLER, CHAIN 1

1TP-25388-00-00

—
Out of stock

23

BOLT(4SR)

90101-08777-00

—
Out of stock

24

NUT, HEXAGON SMALL

95317-08700-00

—
Out of stock

25

COLLAR

90387-20034-00

—
Out of stock

26

COLLAR

90387-2000B-00

1
Out of stock

27

AXLE, WHEEL

1TP-25381-00-00

—
Out of stock

28

NUT, SELF-LOCKING

90185-18009-00

—
Out of stock

29

WASHER, PLATE

90201-18020-00

—
Out of stock
