2014 Yamaha Bolt (XVS95CEW) Intake 1 Diagram

← All diagrams

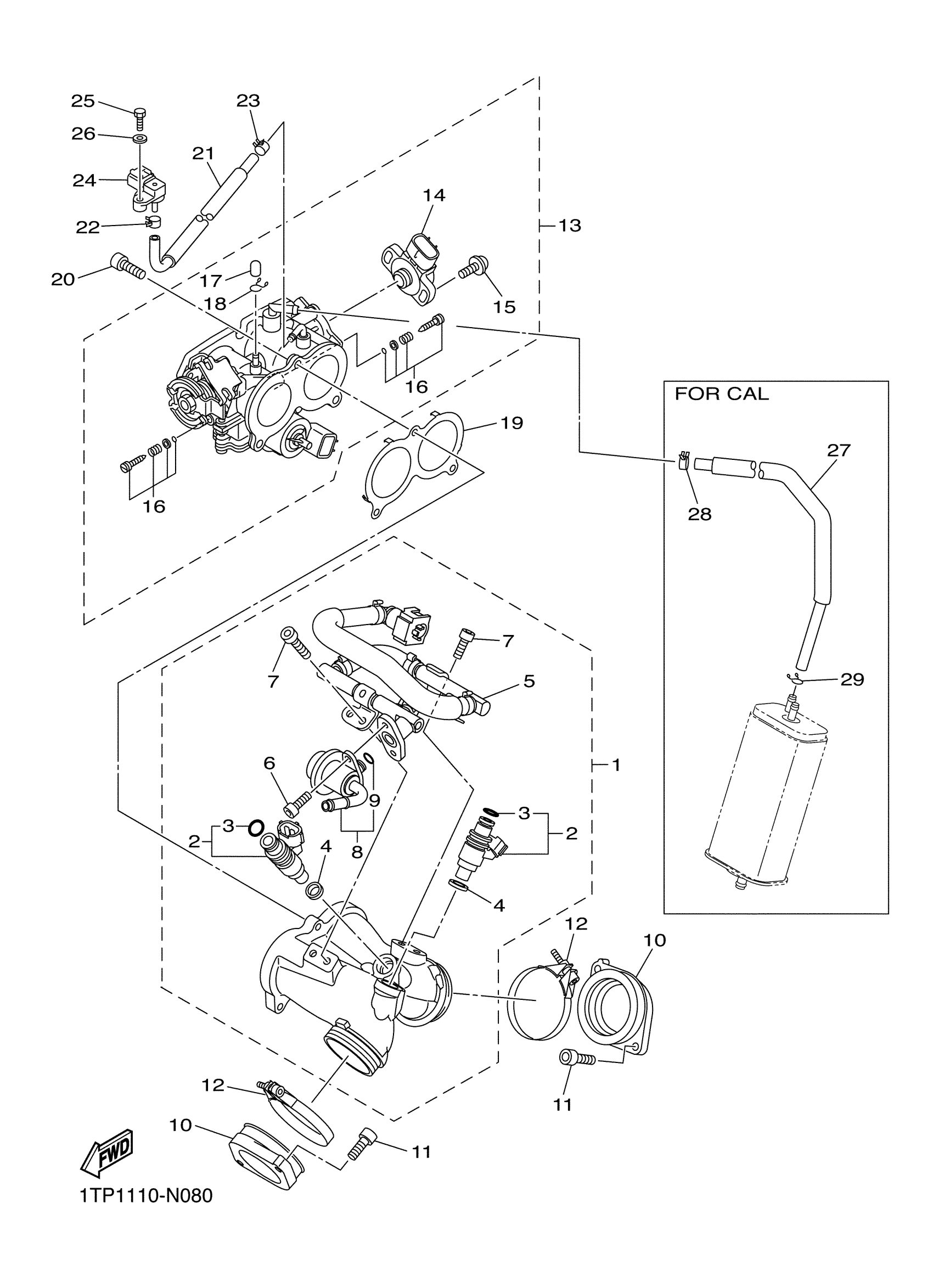

Find the part on the Intake 1 diagram for your 2014 Yamaha Bolt (XVS95CEW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Yamaha Bolt (XVS95CEW) Intake 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR JOINT ASSY

1TP-13590-00-00

—
Out of stock

2

INJECTOR

5S7-13761-00-00

1

$172.65

In stock

3

O-RING

5PS-14147-00-00

1

$10.95

In stock

4

GASKET, MANIFOLD

8FP-13556-00-00

1

$12.27

In stock

5

PIPE INLET ASSEMBLY

1TP-13930-00-00

—

$369.06

In stock

6

BOLT

91312-05010-00

1

$4.92

In stock

7

BOLT (33M)

91312-06014-00

1

$4.74

In stock

8

REGULATOR, PRESSURE

1TP-13906-10-00

1

$121.49

In stock

9

O-RING

5S7-13769-00-00

1

$29.77

In stock

10

JOINT, CARBURETOR 1

5S7-13586-00-00

1

$102.95

In stock

11

BOLT,SOCKET HEAD

91314-06020-00

1

$2.05

In stock

12

HOSE CLAMP ASSY

90450-54006-00

1

$12.80

In stock

13

THROTTLE BODY ASSY

1TP-13750-02-00

—

$582.99

In stock

14

THROTTLE SENSOR AS

8GL-85885-01-00

1

$76.17

In stock

15

SCREW

4KM-24453-00-00

1

$4.85

In stock

16

AIR SCREW SET

3D8-14104-00-00

—

$14.75

In stock

17

CAP

895-14169-00-00

—

$4.02

In stock

18

CLIP, PIPE

8A7-14139-00-00

—

$6.80

In stock

19

SEAL

BL3-14467-00-00

—

$11.25

In stock

20

BOLT,SOCKET HEAD

91314-06020-00

1

$2.05

In stock

21

HOSE, AIR

1TP-13895-00-00

—

$11.72

In stock

22

CLIP(42X)

90467-07093-00

—

$1.72

In stock

23

CLIP(41W)

90467-08092-00

—

$6.86

In stock

24

SENSOR, PRESSURE

5S7-82380-00-00

—

$161.56

In stock

25

BOLT(3JK)

97027-05020-00

—

$2.48

In stock

26

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock
