2012 Yamaha V Star 950 (XVS95BS) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2012 Yamaha V Star 950 (XVS95BS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

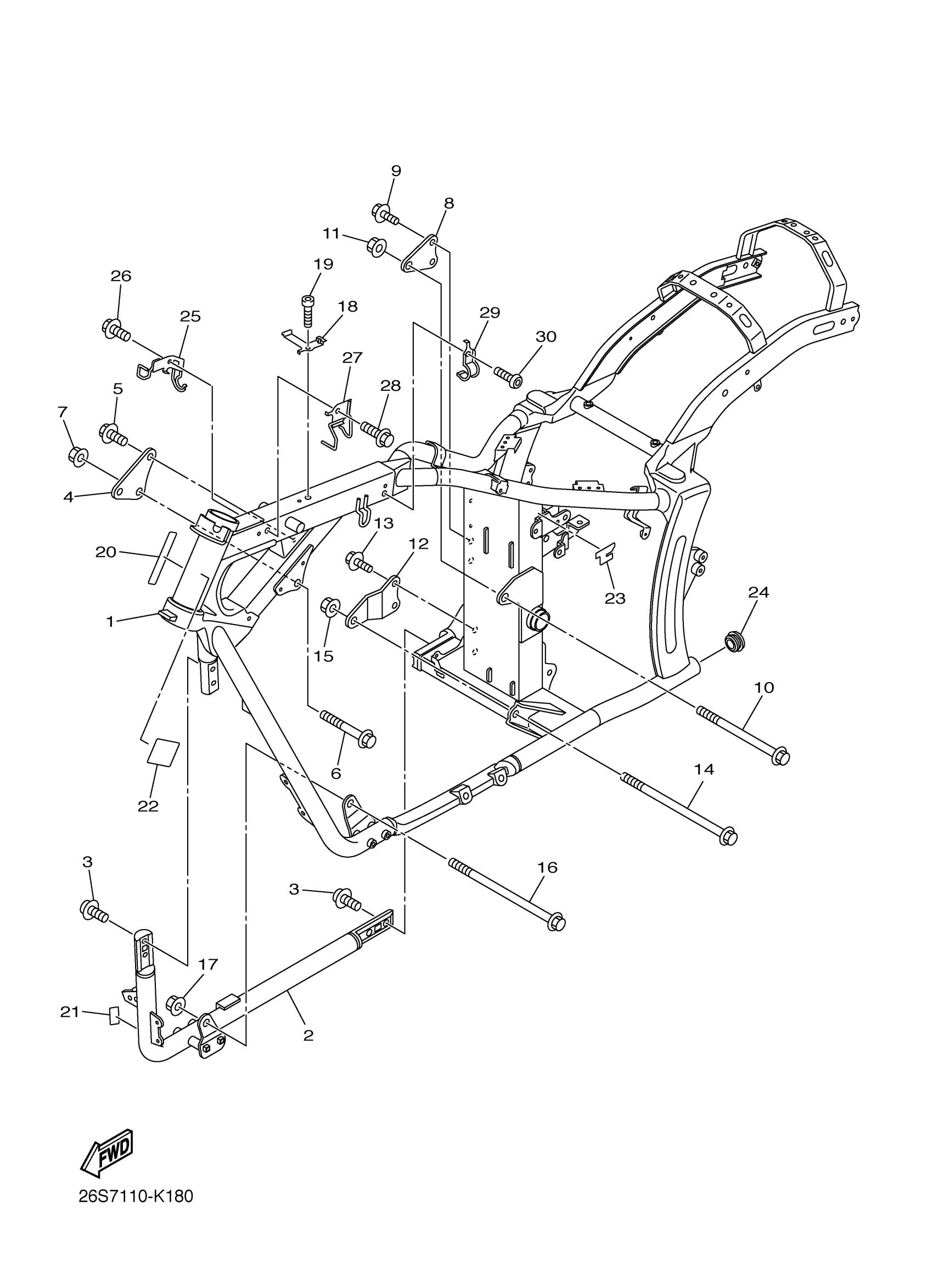

2012 Yamaha V Star 950 (XVS95BS) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

5S7-21110-10-00

1
Out of stock

2

DOWNTUBE COMP.

5S7-21280-10-00

—
Out of stock

3

BOLT, HEXAGON SOCKET HEAD

90110-10017-00

1
Out of stock

4

STAY, ENGINE 3

5S7-21317-00-00

1
Out of stock

5

BOLT, WASHER BASED

90105-102A3-00

1

$6.97

In stock

6

BOLT, WASHER BASED (26H)

90105-12252-00

1
Out of stock

7

NUT, SELF-LOCKING

90185-12002-00

1
Out of stock

8

STAY, ENGINE 5

5S7-21314-00-00

—
Out of stock

9

BOLT, WASHER BASED

90105-102A3-00

1

$6.97

In stock

10

BOLT, FLANGE

90105-12043-00

—
Out of stock

11

NUT, SELF-LOCKING

90185-12002-00

1
Out of stock

12

STAY, ENGINE 3

5S7-21316-00-00

—
Out of stock

13

BOLT, WASHER BASED

90105-102A3-00

1

$6.97

In stock

14

BOLT, FLANGE

90105-12044-00

1
Out of stock

15

NUT, SELF-LOCKING

90185-12002-00

1
Out of stock

16

BOLT, FLANGE

90105-12069-00

—
Out of stock

17

NUT, SELF-LOCKING

90185-12002-00

1
Out of stock

18

BRACKET

5S7-21158-00-00

—
Out of stock

19

BOLT,SOCKET HEAD

91314-06020-00

—

$2.05

In stock

20

PROTECTOR

3D8-2117G-00-00

1

$5.40

In stock

21

SEAL

5PX-21268-00-00

—

$6.23

In stock

22

SEAL

1D7-2639G-00-00

—
Out of stock

23

SEAL 1

5S7-21732-00-00

—
Out of stock

24

PLUG

90338-27007-00

—
Out of stock

25

GUIDE, CABLE

5S7-26279-00-00

—
Out of stock

26

BOLT, WASHER BASED(JA9)

90105-06696-00

—

$6.29

In stock

27

HOLDER

5S7-26475-00-00

—
Out of stock

28

BOLT, WASHER BASED(JA9)

90105-06696-00

—

$6.29

In stock

29

CLAMP

90462-16005-00

—
Out of stock

30

BOLT, BUTTON HEAD

92012-06016-00

—
Out of stock
