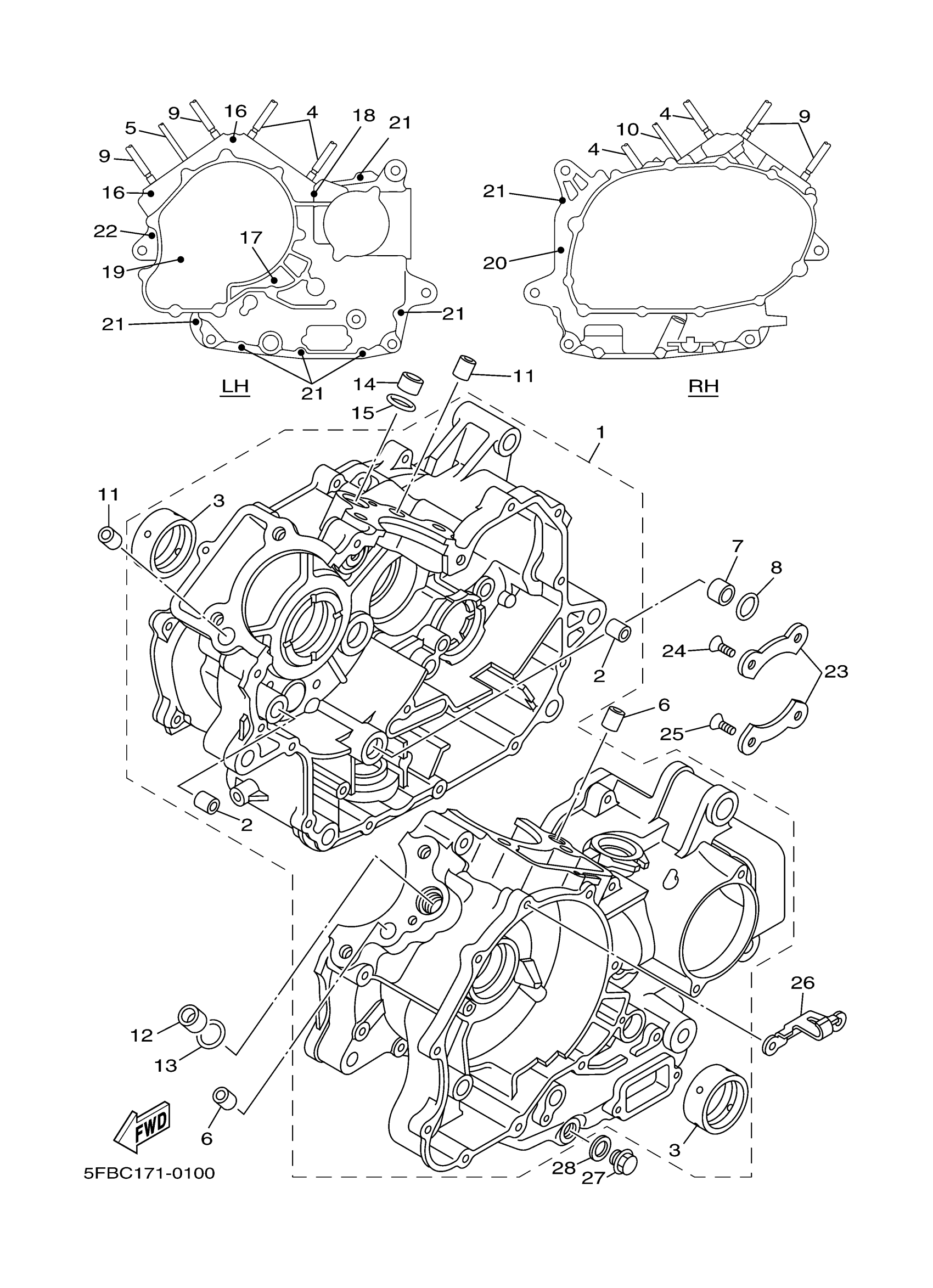

Yamaha XVS65VC (V STAR 650 CUSTOM CA) 3B65 2006 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

4TR-15100-29-00

$863.99

2

PIN, DOWEL(MH0)

91815-16017-00

$6.82

3

PLANE BEARING, CRANKSHAFT 1

22U-11416-80-00

$42.83

3

PLANE BEARING, CRANKSHAFT 1

22U-11416-90-00

$66.09

4

BOLT, STUD(4TR)

90116-10611-00

$14.35

5

BOLT, STUD (22U)

90116-08404-00

$7.74

6

PIN, DOWEL

99530-14016-00

$3.20

7

COLLAR (1L9)

90387-16547-00

$8.31

8

O-RING (1L9)

93210-18322-00

$4.77

9

BOLT, STUD (22U)

90116-10405-00

$15.25

10

BOLT, STUD (22U)

90116-08404-00

$7.74

11

PIN, DOWEL

99530-14016-00

$3.20

12

COLLAR (1L9)

90387-16547-00

$8.31

13

O-RING (1L9)

93210-18322-00

$4.77

14

COLLAR (1L9)

90387-16547-00

$8.31

15

O-RING (1L9)

93210-18322-00

$4.77

16

BOLT, SOCKET

91314-08060-00

$6.77

17

BOLT, HEXAGON SOCKET HEAD

90110-08003-00

$3.80

18

BOLT, SOCKET

91314-08100-00

$11.75

19

BOLT,SOCKET

91317-06095-00

$4.03

20

BOLT,SOCKET

91380-06045-00

$2.25

21

BOLT,SOCKET

91317-06045-00

$3.37

22

BOLT,SOCKET

91314-06055-00

$6.82

23

PLATE, BEARING COVER

11H-15383-02-00

$11.03

24

SCREW, COUNTERSUNK (22U)

90151-08022-00

$2.92

25

SCREW

90149-08013-00

$6.25

26

HOLDER, CLUTCH CABLE

22U-15441-02-00

Unavailable

27

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$2.65

28

GASKET

214-11198-01-00

$2.66
