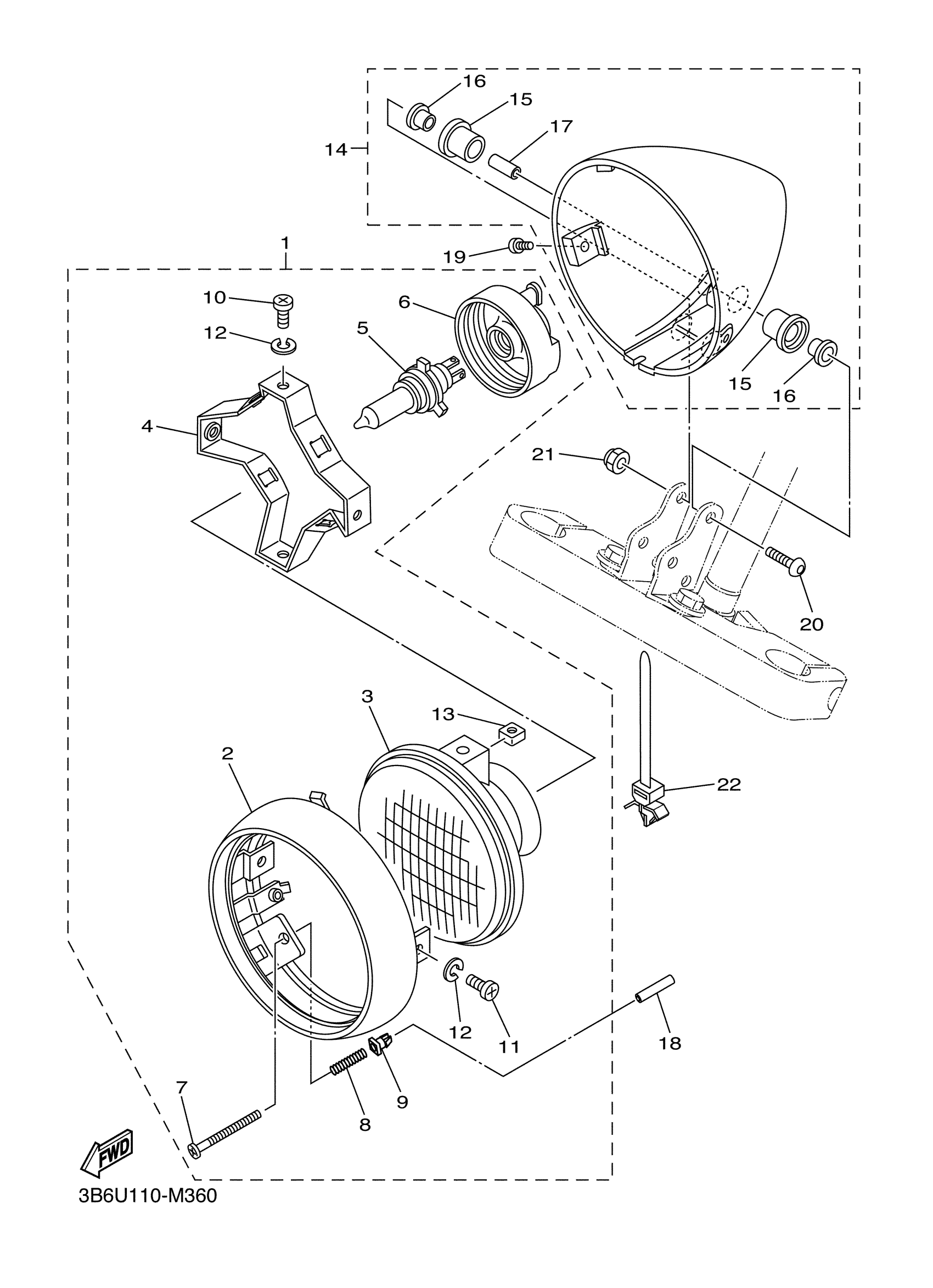

Find the part on the Headlight diagram for your 2015 Yamaha V Star 650 Custom CA (XVS65FCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Yamaha V Star 650 Custom CA (XVS65FCB) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSY

5KP-84310-01-00

—

$323.88

In stock

2

RIM, HEADLIGHT

5JX-84315-01-00

—

$152.45

In stock

3

LENS ASSY

5KP-84321-00-00

—

$118.72

In stock

4

BRACKET

5JX-84316-00-00

—

$25.29

In stock

5

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

6

COVER, SOCKET

4JG-84397-00-00

—

$12.89

In stock

7

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

8

SPRING, ADJUST

341-84332-60-00

1

$8.54

In stock

9

. NUT, ADJUSTING

47J-84334-00-00

1

$6.69

In stock

10

SCREW

4KG-84365-00-00

1

$1.54

In stock

11

COLLAR, SCREW

50W-84333-00-00

1
Out of stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

NUT, ADJUSTING

4KG-84334-00-00

1

$6.37

In stock

14

BODY ASSY

5JX-84330-10-00

—

$137.29

In stock

15

DAMPER, HEADLIGHT

42X-84345-00-00

1

$4.98

In stock

16

COLLAR, BODY FITTING

1FK-84338-00-00

—

$2.92

In stock

17

COLLAR 1

5JX-84388-00-00

—

$4.86

In stock

18

CAP,1

3B7-84385-00-00

—

$3.08

In stock

19

SCREW, PAN HEAD

90157-05011-00

—

$1.88

In stock

20

BOLT, BUTTON HEAD(4TR)

92014-06045-00

—

$2.51

In stock

21

NUT, CROWN (35R)

90176-06047-00

—
Out of stock

22

CLAMP(2TV)

90464-10112-00

—

$6.18

In stock
