2014 Yamaha V Star 650 Custom (XVS65ES) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2014 Yamaha V Star 650 Custom (XVS65ES), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

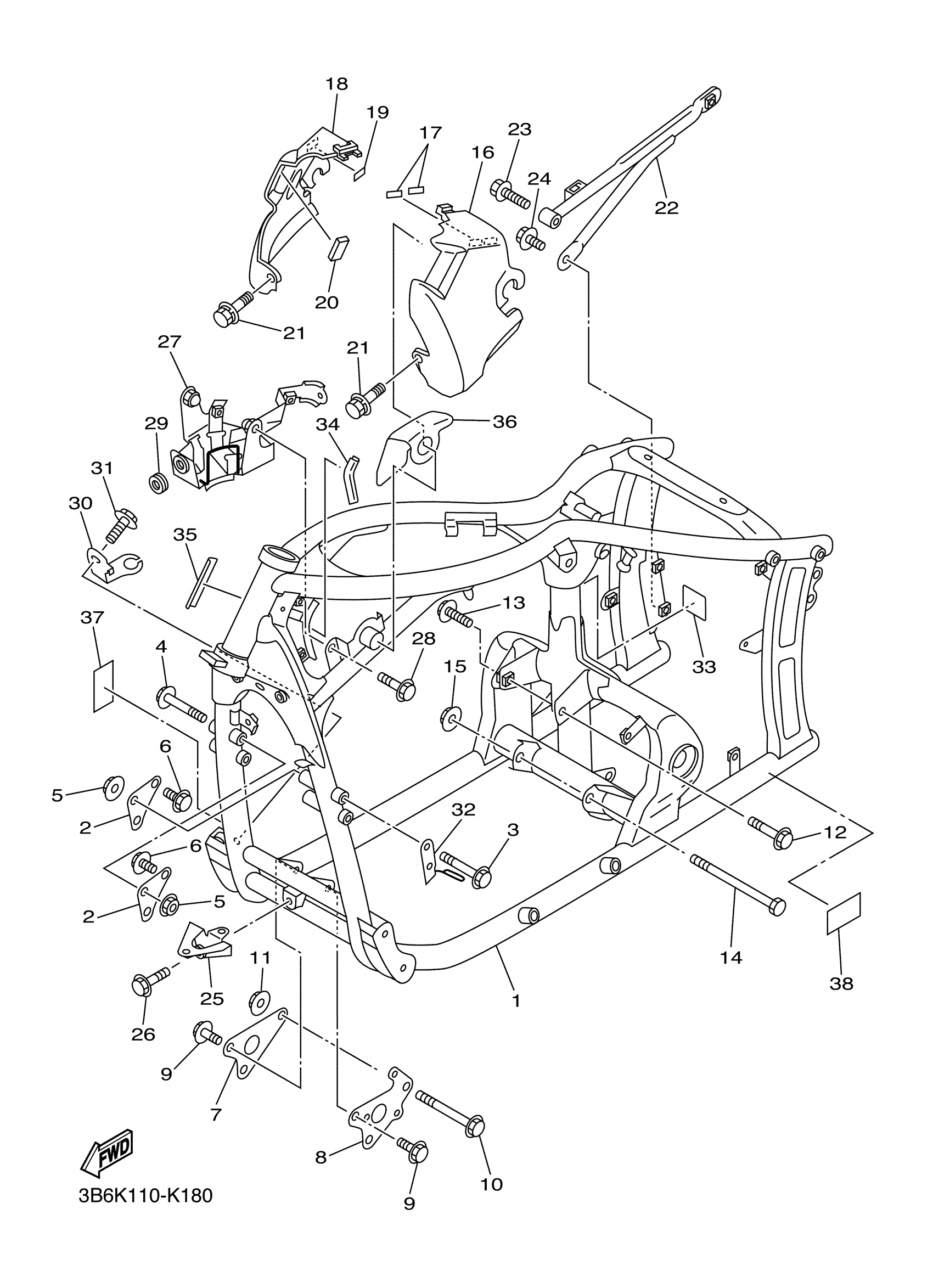

2014 Yamaha V Star 650 Custom (XVS65ES) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

4VR-21110-41-00

1
Out of stock

2

STAY, ENGINE 2

4VR-21315-00-00

—
Out of stock

3

BOLT, WASHER BASED

90105-082A4-00

1
Out of stock

4

BOLT, WASHER BASED

90105-084A1-00

1
Out of stock

5

NUT

90179-08684-00

1
Out of stock

6

BOLT, FLANGE(3GD)

95817-10025-00

1
Out of stock

7

STAY, ENGINE 3

4VR-21317-00-00

—
Out of stock

8

STAY, ENGINE 3

5BN-21317-00-00

1
Out of stock

9

BOLT, WASHER BASED(36Y)

90105-08307-00

1
Out of stock

10

BOLT, FLANGE(4TR)

95814-10100-00

1
Out of stock

11

NUT(4KG)

90179-10658-00

1
Out of stock

12

BOLT, WASHER BASED(4EB)

90105-10788-00

1
Out of stock

13

BOLT, WASHER BASED (4K0)

90105-10169-00

1
Out of stock

14

BOLT(3GG)

90101-12694-00

1
Out of stock

15

Nut

90179-12004-00

1
Out of stock

16

COVER, SIDE 5

4TR-2171E-01-00

—
Out of stock

17

DAMPER 1

3TB-28217-00-00

—
Out of stock

18

COVER, SIDE 6

4TR-2171X-00-00

—
Out of stock

19

DAMPER 1

3TB-28217-00-00

—
Out of stock

20

DAMPER

4SV-28372-00-00

—
Out of stock

21

BOLT, WITH WASHER

90119-06236-00

—
Out of stock

22

STAY, MUFFLER

4TR-21460-20-00

—
Out of stock

23

BOLT, FLANGE(JN5)

95817-08045-00

—
Out of stock

24

BOLT, FLANGE(8AB)

95817-08020-00

—
Out of stock

25

STAY 1

4VR-28356-01-00

—
Out of stock

26

BOLT, FLANGE

95817-06012-00

—
Out of stock

27

BRACKET, FUEL PUMP

4TR-24491-10-00

—
Out of stock

28

BOLT, FLANGE

95817-06014-00

—
Out of stock

29

GROMMET

90480-12320-00

—
Out of stock

30

STAY, STOP SWITCH

5KP-2144G-00-00

—
Out of stock

31

BOLT, FLANGE

95817-06012-00

—
Out of stock

32

HOLDER, CABLE

4VR-21161-00-00

—
Out of stock

33

SEAL 1

3FY-21575-01-00

—
Out of stock

34

DAMPER 1

35C-2214F-00-00

—
Out of stock

35

PROTECTOR, FUEL TANK

3HA-24141-00-00

—
Out of stock

36

SHEET 1

5KP-21266-00-00

—
Out of stock

37

PLATE, ROUTING 2

10D-21686-00-00

—
Out of stock

38

LABEL, TIRE

3B6-21668-00-00

—
Out of stock
