2004 Yamaha V Star Classic CA (XVS65ASC) Headlight Diagram

← All diagrams

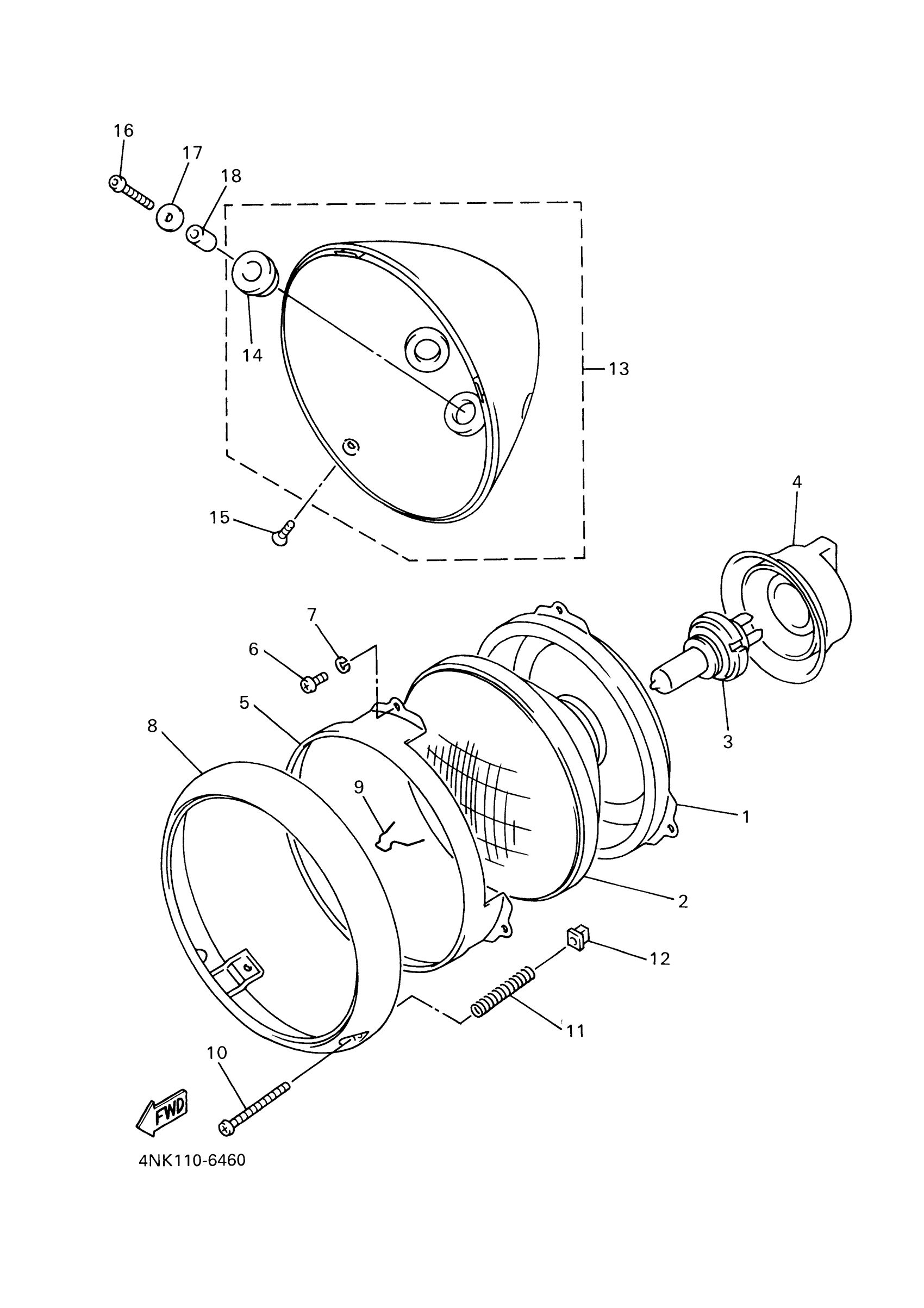

Find the part on the Headlight diagram for your 2004 Yamaha V Star Classic CA (XVS65ASC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Yamaha V Star Classic CA (XVS65ASC) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RING, MOUNTING

4NK-84394-00-00

1
Out of stock

2

LENS ASSY

4NK-84320-00-00

1
Out of stock

3

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

4

COVER, SOCKET

3SX-84397-00-00

—
Out of stock

5

RING, RETAINING

2F9-84395-00-00

1
Out of stock

6

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

7

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

8

RIM, HEADLIGHT

4NK-84315-00-00

1
Out of stock

9

SPRING, REFLECTOR SET (FRAN)

290-84124-21-00

—
Out of stock

10

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

11

SPRING, ADJUST

341-84332-60-00

1

$8.54

In stock

12

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

13

BODY ASSY

5BN-84330-00-00

—
Out of stock

14

DAMPER, HEADLIGHT 1

42X-84366-00-00

1

$18.66

In stock

15

SCREW, FLAT

98704-05012-00

1
Out of stock

16

BOLT, BUTTON HEAD

92017-06025-00

—

$6.68

In stock

17

WASHER, PLATE

90201-06086-00

—
Out of stock

18

COLLAR(4NK)

90387-0610J-00

—
Out of stock
