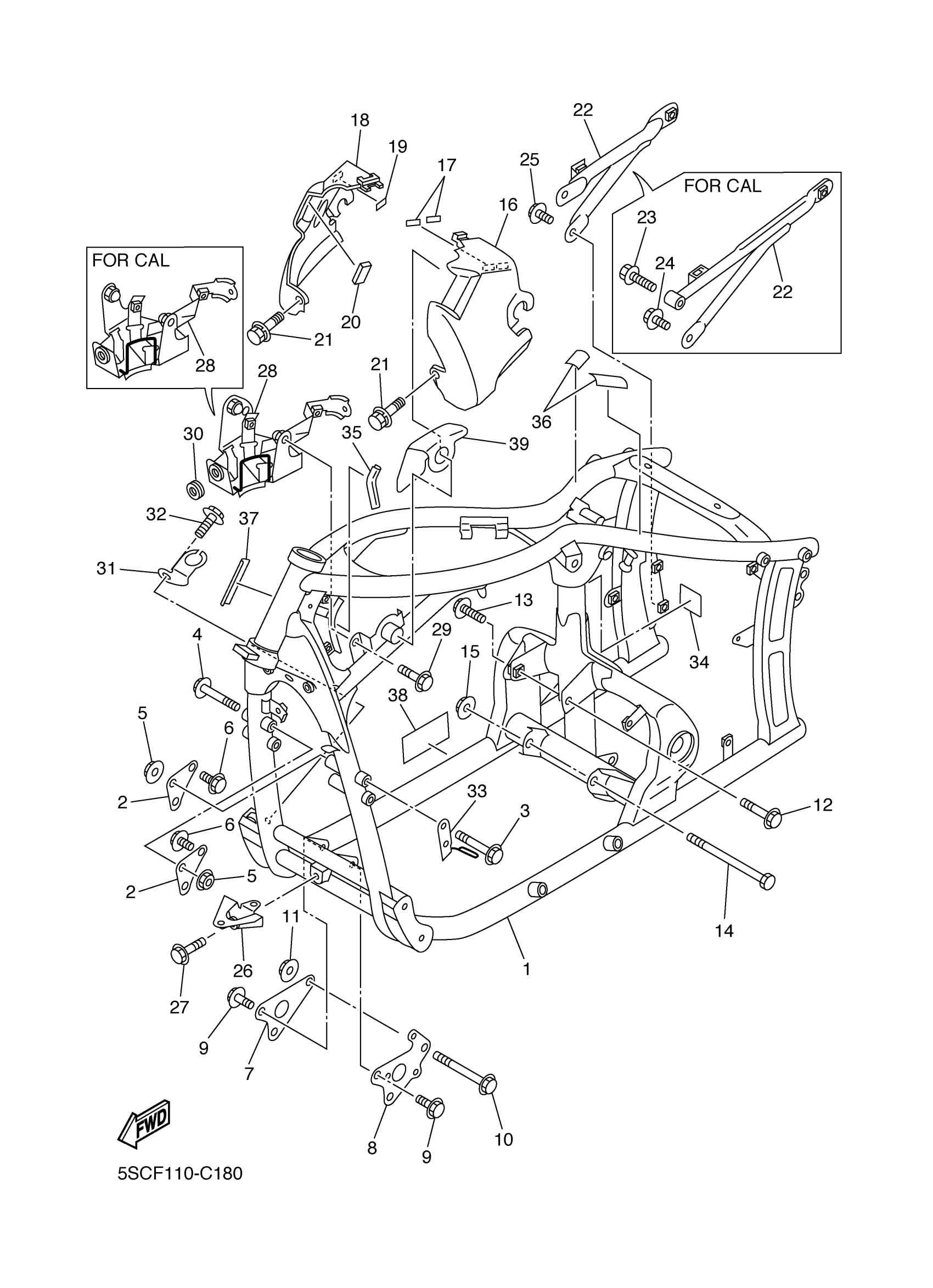

2004 Yamaha V Star Classic CA (XVS65ASC) Frame Diagram
Find the part on the Frame diagram for your 2004 Yamaha V Star Classic CA (XVS65ASC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRAME COMP.
4VR-21110-20-00
1
FRAME COMP.
4VR-21110-40-00
12
BOLT, WASHER BASED(4EB)
90105-10788-00
14
BOLT(3GG)
90101-12694-00
22
STAY, MUFFLER
4TR-21460-30-00
23
BOLT, FLANGE(JN5)
95817-08045-00
28
BRACKET, FUEL PUMP
4TR-24491-02-00
31
STAY, STOP SWITCH
4TR-2144G-01-00
34
SEAL 1
3FY-21575-01-00
35
DAMPER 1
4GY-2214F-00-00
36
SEAL 1
3SP-21732-00-00
38
PLATE, EPA 2 (CALIFORNIA)
5FB-2179R-30-00
38
PLATE, EPA 1 (NON CALIFORNIA)
5FB-2179V-30-00
