2003 Yamaha V-Star Custom CA (XVS650RC) Side Cover Diagram

← All diagrams

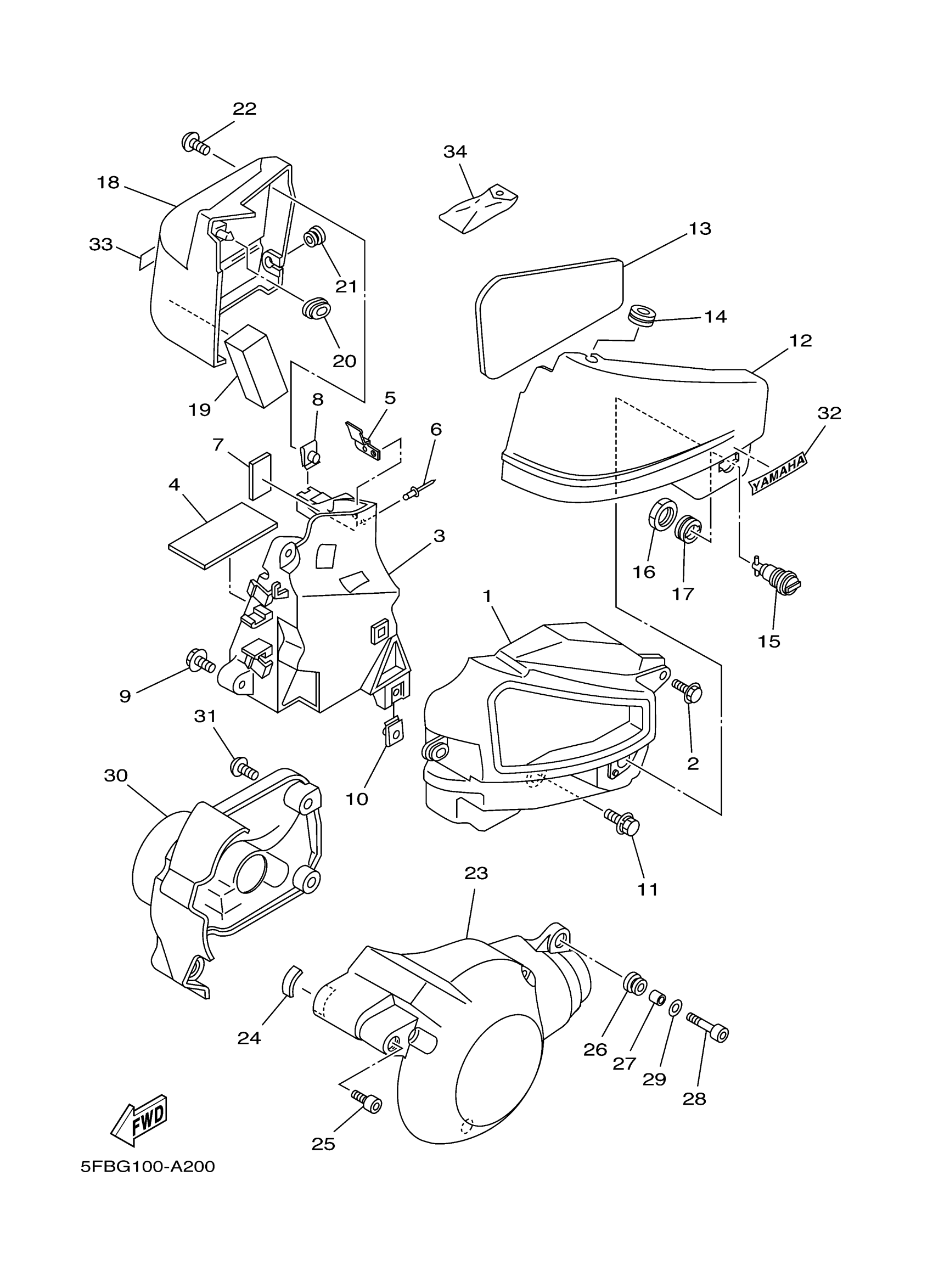

Find the part on the Side Cover diagram for your 2003 Yamaha V-Star Custom CA (XVS650RC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Yamaha V-Star Custom CA (XVS650RC) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOX COMP.

4TR-2160A-00-00

—
Out of stock

2

BOLT, WITH WASHER(81H)

90119-06118-00

1
Out of stock

3

BOX, BATTERY

4TR-2177G-02-00

—
Out of stock

4

SEAT, BATTERY

5Y1-82122-00-00

1
Out of stock

5

STAY, SIDE COVER 1

5BN-2172E-00-00

—
Out of stock

6

RIVET, BLIND (15A)

90267-32071-00

1
Out of stock

7

DAMPER

22F-2139X-00-00

1
Out of stock

8

NUT, SPRING(4ES)

90183-06069-00

1
Out of stock

9

BOLT, WITH WASHER(81H)

90119-06118-00

1
Out of stock

10

NUT, SPRING (26H)

90183-06023-00

1
Out of stock

11

BOLT, WITH WASHER(2WG)

90119-06172-00

1
Out of stock

12

COVER, SIDE 1

5BN-21711-11-33

—
Out of stock

12

COVER, SIDE 1

5BN-21711-10-P6

—
Out of stock

13

DAMPER

4TR-21717-00-00

—
Out of stock

14

GROMMET

90480-12320-00

1
Out of stock

15

SIDE COVER LOCK ASSY

55K-21708-00-00

—
Out of stock

16

NUT, HEXAGON (1E6)

90170-22187-00

—
Out of stock

17

GROMMET (1E6)

90480-24186-00

—
Out of stock

18

COVER, SIDE 2

5BN-21721-01-33

—
Out of stock

18

COVER, SIDE 2 (DARK GRAYISH PURPLE METALLIC 1)

5BN-21721-00-P6

1
Out of stock

19

PROTECTOR 5

84M-77555-00-00

—
Out of stock

20

GROMMET(4BH)

90480-01559-00

—
Out of stock

21

GROMMET

90480-12320-00

1
Out of stock

22

SCREW(4DN)

90149-06302-00

—
Out of stock

23

COVER, SIDE 3

4TR-21731-00-00

—
Out of stock

24

DAMPER

5G3-21747-00-00

1
Out of stock

25

BOLT,SOCKET HEAD

91314-06012-00

—
Out of stock

26

GROMMET (4N0)

90480-10289-00

—
Out of stock

27

COLLAR

90387-06113-00

—
Out of stock

28

BOLT,SOCKET HEAD

91314-06020-00

—
Out of stock

29

WASHER PLATE 256216150000

90201-06062-00

—
Out of stock

30

COVER, SIDE 4

4VR-21741-00-00

—
Out of stock

31

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

—
Out of stock

32

EMBLEM, YAMAHA

99247-00080-00

—
Out of stock

33

EMBLEM, YAMAHA

99247-00080-00

—
Out of stock

34

IGNITION COIL ASSY

4TR-28100-01-00

—
Out of stock
