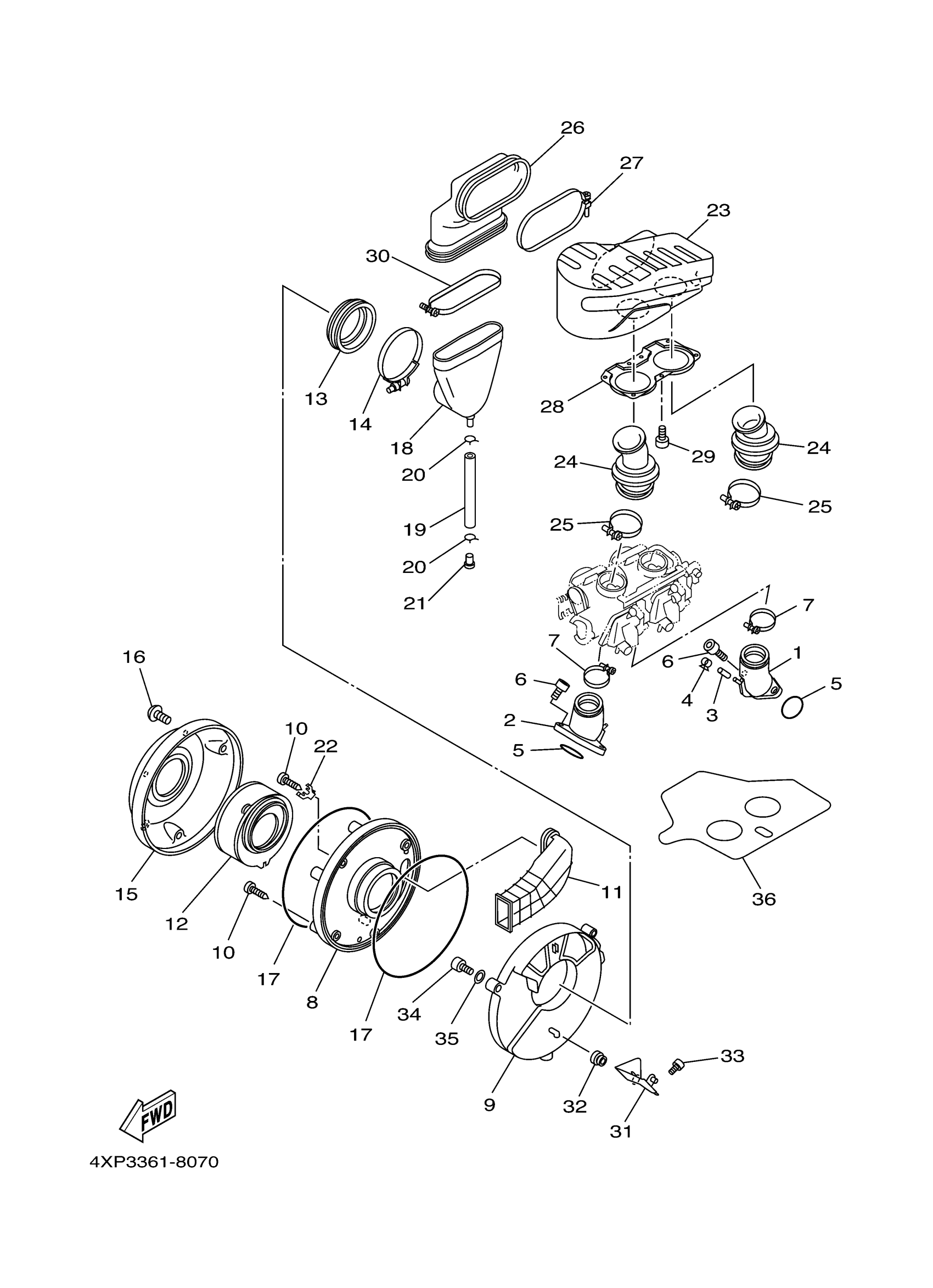

2003 Yamaha V-Star Custom CA (XVS650RC) Intake Diagram
Find the part on the Intake diagram for your 2003 Yamaha V-Star Custom CA (XVS650RC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
3
PLUG, BLIND
16G-13569-00-00
1
Out of stock
4
CLIP (3G0)
90467-10039-00
1
Out of stock
5
O-RING(2TY)
93210-36769-00
1
Out of stock
10
SCREW, PAN TAP.2
97707-50525-00
1
Out of stock
15
CASE, AIR CLEANER 2
4TR-14421-00-00
1
Out of stock
16
BOLT, BUTTON HEAD(4TR)
92014-05016-00
—
Out of stock
20
CLIP(1JH)
90467-11106-00
—
Out of stock
36
PROTECTOR, HEAT
4TR-12682-02-00
—
Out of stock
More Air & Fuel diagrams
