2002 Yamaha V-Star Custom CA (XVS650PC) Frame Diagram

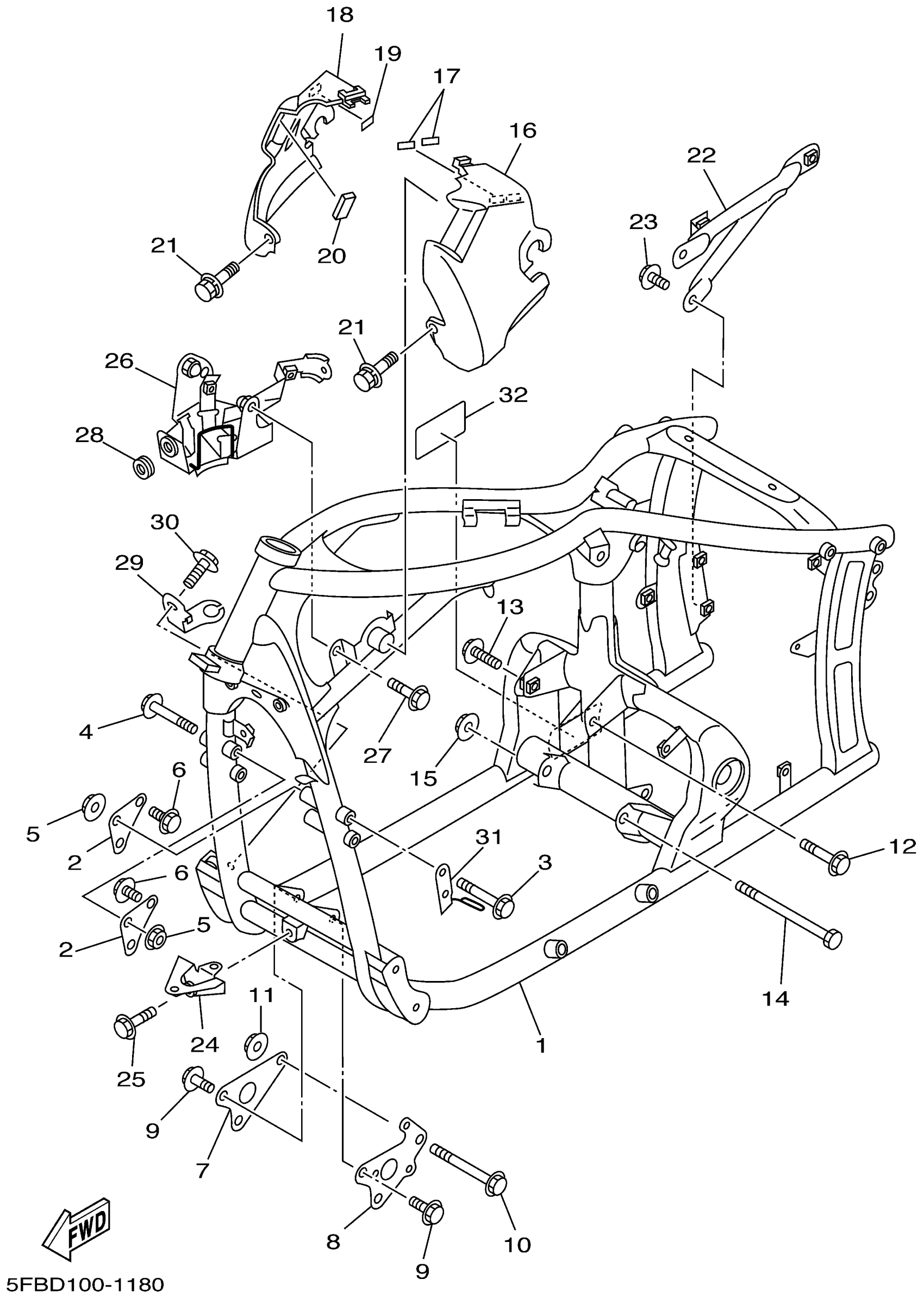

Find the part on the Frame diagram for your 2002 Yamaha V-Star Custom CA (XVS650PC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
1
FRAME COMP.
4VR-21110-20-00
1
Out of stock
9
BOLT, FLANGE(4HM)
95814-08020-00
1
Out of stock
12
BOLT, WASHER BASED(4EB)
90105-10788-00
1
Out of stock
13
BOLT, WASHER BASED(4EB)
90105-10788-00
1
Out of stock
14
BOLT(3GG)
90101-12694-00
1
Out of stock
22
STAY, MUFFLER
4TR-21460-30-00
—
Out of stock
26
BRACKET, FUEL PUMP
4TR-24491-02-00
—
Out of stock
32
PLATE, EPA 2 (CALIFORNIA)
5FB-2179R-10-00
1
Out of stock
32
PLATE, EPA 1 (NON CALIFORNIA)
5FB-2179V-10-00
1
Out of stock
