2001 Yamaha V-Star Custom CA (XVS650NC) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 2001 Yamaha V-Star Custom CA (XVS650NC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

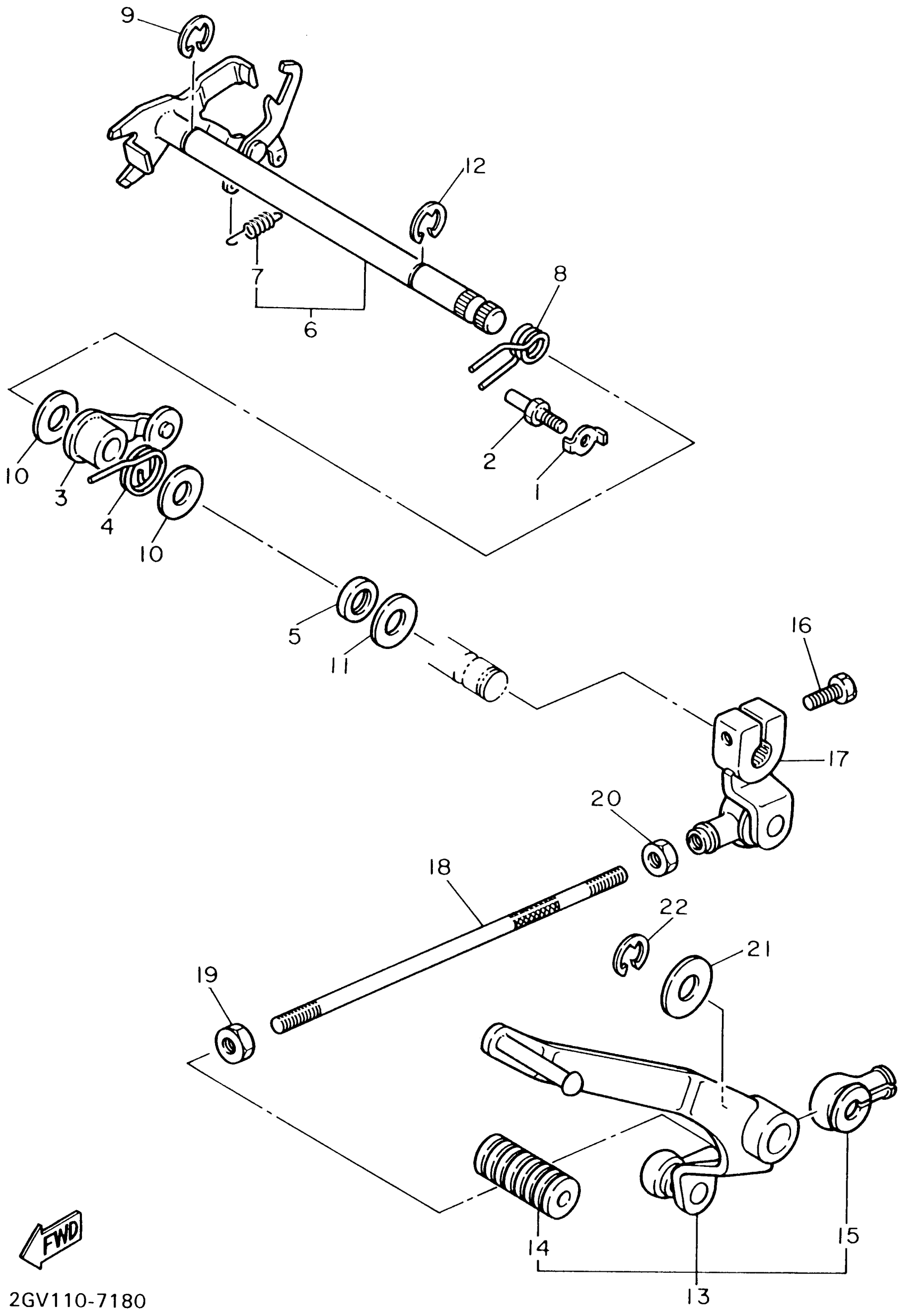

2001 Yamaha V-Star Custom CA (XVS650NC) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WASHER, LOCK (4G0)

90215-18178-00

—

$2.12

In stock

2

STOPPER, SCREW

5VK-18127-00-00

—

$10.89

In stock

3

STOPPER LEVER ASSY

4TR-18140-00-00

—

$45.08

In stock

4

SPRING, TORSION(4TR)

90508-290B5-00

1

$4.02

In stock

5

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

6

SHIFT LEVER ASSY

4TR-18120-00-00

—

$46.17

In stock

7

SPRING, TENSION (4H7)

90506-08227-00

1

$2.85

In stock

8

SPRING, TORSION (11H)

90508-32536-00

1

$10.52

In stock

9

CIRCLIP

99006-10600-00

1

$6.91

In stock

10

WASHER

90201-12588-00

1

$6.37

In stock

11

WASHER, PLATE (353)

90201-12575-00

1
Out of stock

12

CIRCLIP

99006-10600-00

1

$6.91

In stock

13

SHIFT PEDAL ASSY

4TR-18110-01-00

1
Out of stock

14

COVER, SHIFT PEDAL

22N-18113-00-00

1

$6.46

In stock

15

COVER, DUST

2H9-18154-00-00

1
Out of stock

16

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

17

ARM, SHIFT

4TR-18112-00-00

—

$72.12

In stock

18

ROD, SHIFT

3SX-18115-10-00

—

$14.45

In stock

19

NUT (2H9)

90170-06228-00

—

$5.20

In stock

20

NUT

9538R-06700-00

1
Out of stock

21

WASHER PLATE 278111750000

90201-12362-00

—

$6.42

In stock

22

CIRCLIP(10Y)

99009-12400-00

—

$3.08

In stock
