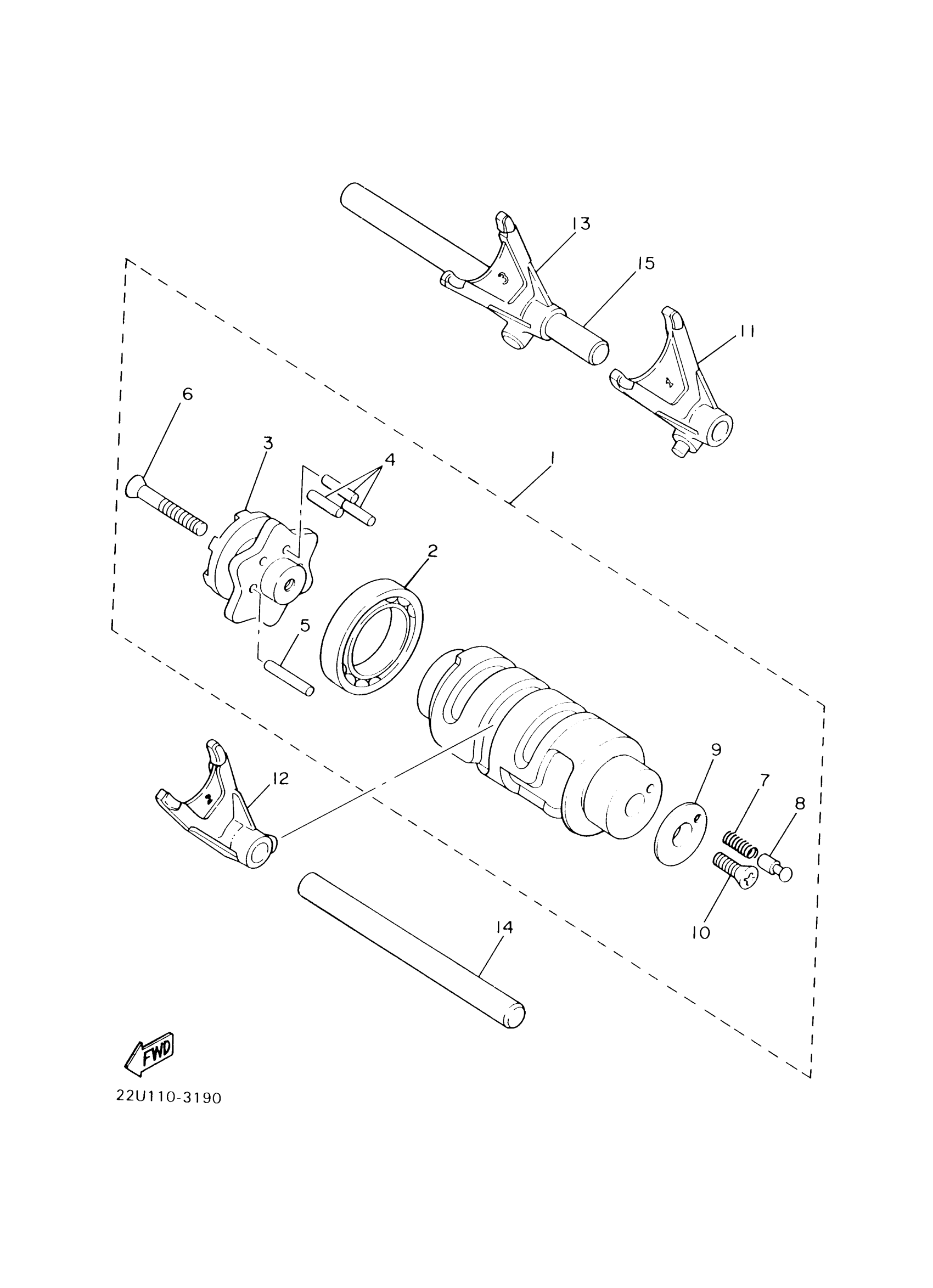

2000 Yamaha V-Star Custom CA (XVS650MC) Shift CAM Fork Diagram

← All diagrams

Find the part on the Shift CAM Fork diagram for your 2000 Yamaha V-Star Custom CA (XVS650MC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha V-Star Custom CA (XVS650MC) Shift CAM Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSY

4TR-18540-02-00

—

$155.32

In stock

2

BRG,R-B (4X7)

93306-90602-00

1

$40.58

In stock

3

. SEGMENT

16G-18185-00-00

1
Out of stock

4

PIN, DOWEL (409)

93604-16092-00

1

$1.94

In stock

5

PIN, DOWEL (4H7)

93604-20156-00

1

$2.22

In stock

6

SCREW, FLAT

98707-05035-00

1

$6.69

In stock

7

1

$6.17

In stock

8

POINT, NEUTRAL

4UN-18542-00-00

1

$8.44

In stock

9

PLATE, SIDE 2

4UN-18566-00-00

1

$17.29

In stock

10

SCREW(3HX)

90149-05245-00

1

$6.18

In stock

11

FORK, SHIFT 1

4TR-18511-00-00

—

$42.31

In stock

12

FORK, SHIFT 2

4TR-18512-00-00

—

$42.68

In stock

13

FORK, SHIFT 3

4TR-18513-00-00

—

$42.31

In stock

14

BAR, SHIFT FORK GUIDE 1

3YF-18531-00-00

—

$14.02

In stock

15

BAR, SHIFT FORK GUIDE 2

4TR-18535-00-00

—

$23.29

In stock
