2000 Yamaha V-Star Custom CA (XVS650MC) Carburetor Diagram

← All diagrams

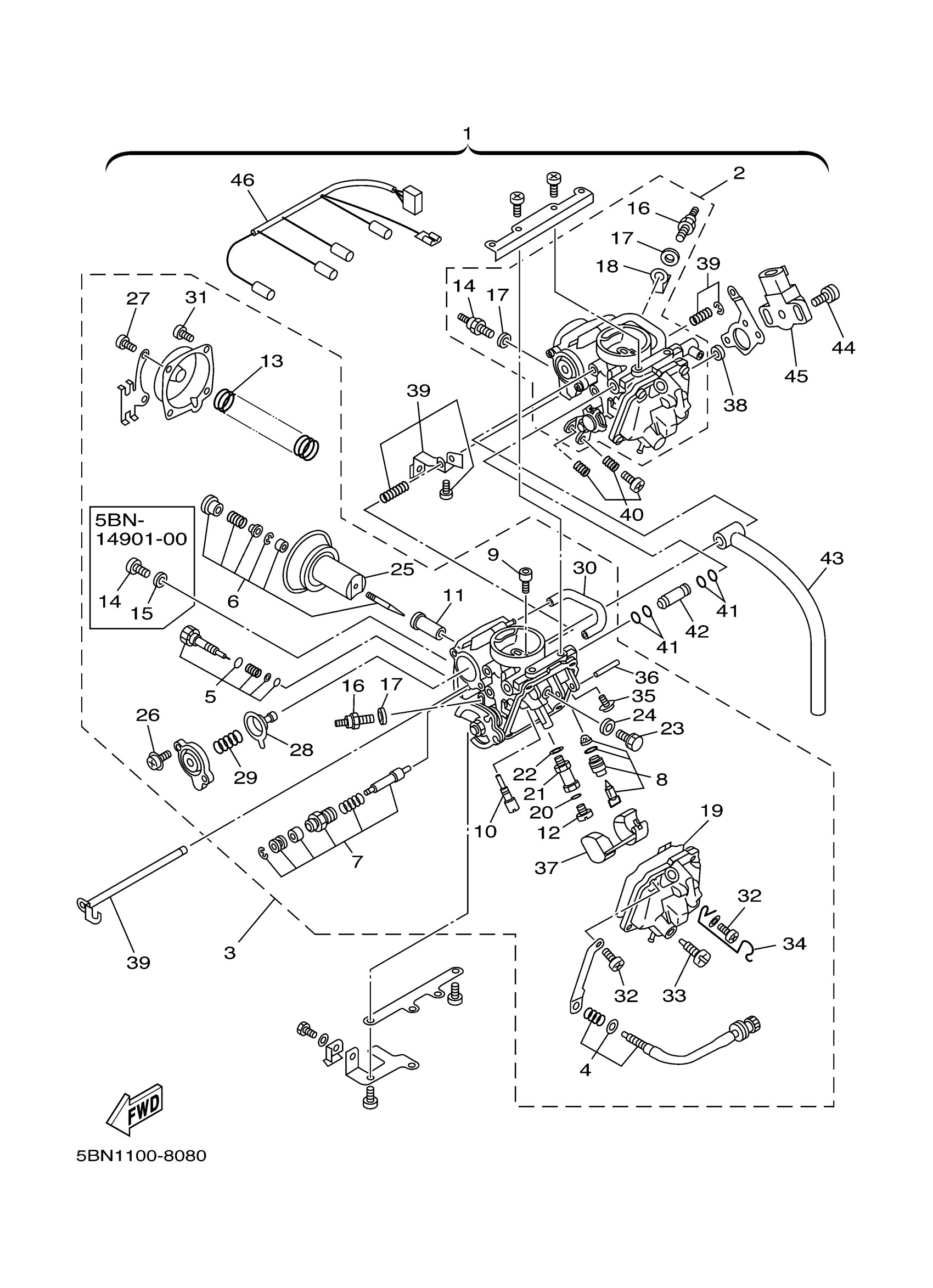

Find the part on the Carburetor diagram for your 2000 Yamaha V-Star Custom CA (XVS650MC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha V-Star Custom CA (XVS650MC) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY

5BN-14900-01-00

1
Out of stock

1

CARBURETOR ASSY

5BN-14900-11-00

1
Out of stock

2

CARBURETOR ASSY 1

5BN-14901-01-00

1
Out of stock

2

CARBURETOR ASSY 1

5BN-14901-10-00

—
Out of stock

3

CARBURETOR ASSY 2

5BN-14902-01-00

1
Out of stock

3

. CARBURETOR ASSY 2

5BN-14902-10-00

1
Out of stock

4

THROTTLE SCREW SET

4TR-14103-00-00

—
Out of stock

5

PILOT SCREW SET

4LA-14105-00-00

1
Out of stock

6

NEEDLE SET

5BN-1490J-00-00

—
Out of stock

7

STARTER SET

4DN-1410A-01-00

1
Out of stock

8

NEEDLE VALVE SET

3CF-14107-10-00

1

$31.67

In stock

9

JET, MAIN (#100)

1HX-14231-20-00

1
Out of stock

10

JET, PILOT (# 20)

4KM-14142-20-00

1
Out of stock

11

NOZZLE, MAIN

5BN-14141-34-00

—

$42.02

In stock

12

JET, MAIN (# 90)

3G2-14231-18-00

—

$10.92

In stock

13

SPRING, DIAPHRAGM

4VR-14933-00-00

—
Out of stock

14

SCREW

3DM-14216-00-00

—

$6.66

In stock

14

HEATER ASSY

5FU-83790-01-00

—
Out of stock

15

GASKET

127-14198-00-00

—
Out of stock

16

HEATER ASSY

4EB-83790-00-00

—
Out of stock

17

WASHER, PLATE

90201-08016-00

—

$6.25

In stock

17

WASHER, PLATE

90201-08016-00

—

$6.25

In stock

18

TERMINAL 1

4DH-82103-00-00

—
Out of stock

19

O-RING

1HX-14147-00-00

—

$15.83

In stock

20

O-RING

1AE-14227-00-00

—

$8.70

In stock

21

HOLDER

1AE-14261-00-00

—

$23.89

In stock

22

GASKET

1AE-14237-00-00

—

$6.38

In stock

23

SCREW

1HX-14565-00-00

—

$16.95

In stock

24

WASHER,MAIN JET

137-14153-00-00

—
Out of stock

25

DIAPHRAGM ASSY

4TR-14940-00-00

—
Out of stock

26

SCREW, PAN HEAD

98517-04012-00

—

$3.28

In stock

27

SCREW, ROD

3KW-14486-00-00

—
Out of stock

28

DIAPHRAGM ASSY

22V-14940-00-00

—
Out of stock

29

SPRING

26H-14275-00-00

—
Out of stock

30

PIPE 1

4TR-14348-00-00

—
Out of stock

31

SCREW, PAN HEAD(JG1)

98507-04008-00

—

$1.45

In stock

31

SCREW, PAN HEAD(JG1)

98507-04008-00

—

$1.45

In stock

32

SCREW, PAN HEAD(N15)

98507-04014-00

—

$1.32

In stock

33

PLUG, DRAIN

12R-14191-00-00

—

$14.25

In stock

34

CLIP

4TR-14937-00-00

—
Out of stock

35

SCREW

1FN-14565-00-00

—

$6.43

In stock

36

PIN, FLOAT

353-14186-00-00

—

$6.72

In stock

37

FLOAT

1HX-14985-00-00

—

$72.85

In stock

38

SEAL

4HM-14239-00-00

—
Out of stock

39

STARTER LEVER SET, 1

4TR-1490L-00-00

—
Out of stock

40

STOP SCREW SET

3KW-1490K-00-00

—
Out of stock

41

O-RING

36Y-14147-00-00

—
Out of stock

42

NIPPLE

1WG-14251-00-00

—
Out of stock

43

HOSE

4TR-14987-00-00

—
Out of stock

44

SCREW

4KM-24453-00-00

—

$4.85

In stock

45

THROTTLE SENSOR ASSY

4NK-85885-00-00

—
Out of stock

46

. WIRE, SUB LEAD

5BN-81517-00-00

1
Out of stock
