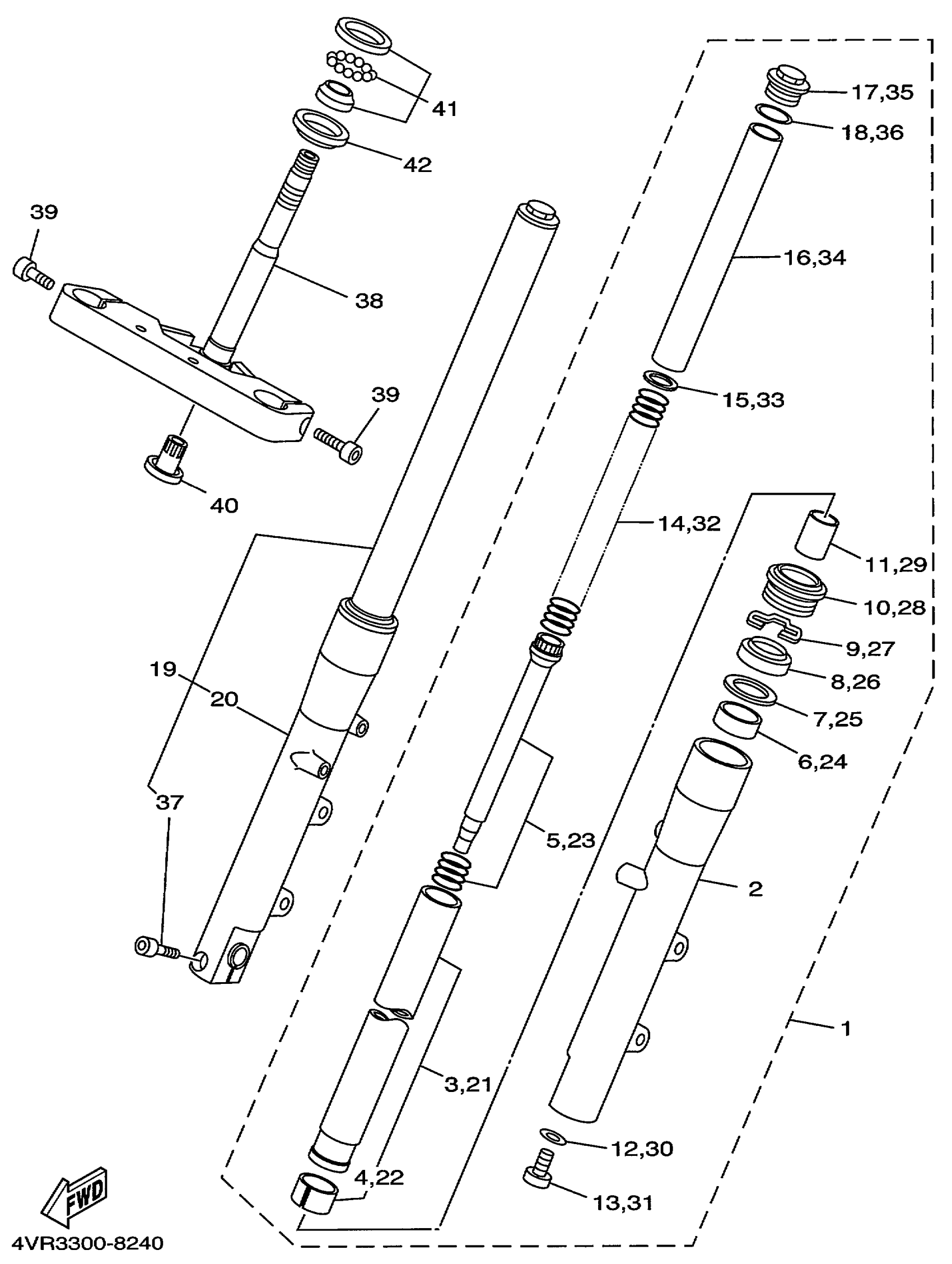

Yamaha XVS650LC (V-STAR CUSTOM CA) 5FB8 1999 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

4VR-23102-02-00

Unavailable

2

TUBE, OUTER (LEFT)

4TR-23126-00-00

Unavailable

3

INNER TUBE COMP.1

4TR-23110-00-00

Unavailable

4

METAL, SLIDE

4FM-23171-40-00

$19.02

5

. CYLINDER COMP, FRONT FORK

4VR-23170-00-00

Unavailable

6

METAL, SLIDE 1

4FM-23125-40-00

$27.32

7

WASHER, OIL SEAL

36Y-23146-10-00

$20.60

8

OIL SEAL

4EB-23145-01-00

$22.64

9

CLIP, OIL SEAL

26H-23156-00-00

$6.17

10

SEAL, DUST

4EB-23144-00-00

$18.18

11

. SPINDLE, TAPER

4VR-23173-00-00

Unavailable

12

GASKET

509-23158-L0-00

$13.39

13

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

14

. SPRING, FRONT FORK

4TR-23141-00-00

Unavailable

15

WASHER, SPRING UPPER

4DW-23149-40-00

$6.33

16

SPACER

4TR-23118-00-00

Unavailable

17

BOLT, CAP

1D0-23111-00-00

Unavailable

18

O-RING

43F-23188-10-00

Unavailable

19

FRONT FORK ASSY (R.H)

4VR-23103-02-00

Unavailable

20

. TUBE, OUTER (RIGHT)

4TR-23136-00-00

Unavailable

21

INNER TUBE COMP.1

4TR-23110-00-00

Unavailable

22

METAL, SLIDE

4FM-23171-40-00

$19.02

23

. CYLINDER COMP, FRONT FORK

4VR-23170-00-00

Unavailable

24

METAL, SLIDE 1

4FM-23125-40-00

$27.32

25

WASHER, OIL SEAL

36Y-23146-10-00

$20.60

26

OIL SEAL

4EB-23145-01-00

$22.64

27

CLIP, OIL SEAL

26H-23156-00-00

$6.17

28

SEAL, DUST

4EB-23144-00-00

$18.18

29

. SPINDLE, TAPER

4VR-23173-00-00

Unavailable

30

GASKET

509-23158-L0-00

$13.39

31

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

32

. SPRING, FRONT FORK

4TR-23141-00-00

Unavailable

33

WASHER, SPRING UPPER

4DW-23149-40-00

$6.33

34

SPACER

4TR-23118-00-00

Unavailable

35

BOLT, CAP

1D0-23111-00-00

Unavailable

36

O-RING

43F-23188-10-00

Unavailable

37

BOLT,SOCKET

91314-08040-00

Unavailable

38

UNDER BRACKET COMP.

5KP-23340-11-00

Unavailable

39

BOLT,SOCKET

91314-10030-00

Unavailable

40

COVER, LOWER 1

4KM-23123-01-00

Unavailable

41

BEARING(3FV)

93399-99932-00

Unavailable

42

SEAL, STEERING

3FV-23462-00-00

Unavailable

43

FORK SEAL KIT (TWO FORKS)

4EB-W003B-00-00

Unavailable
