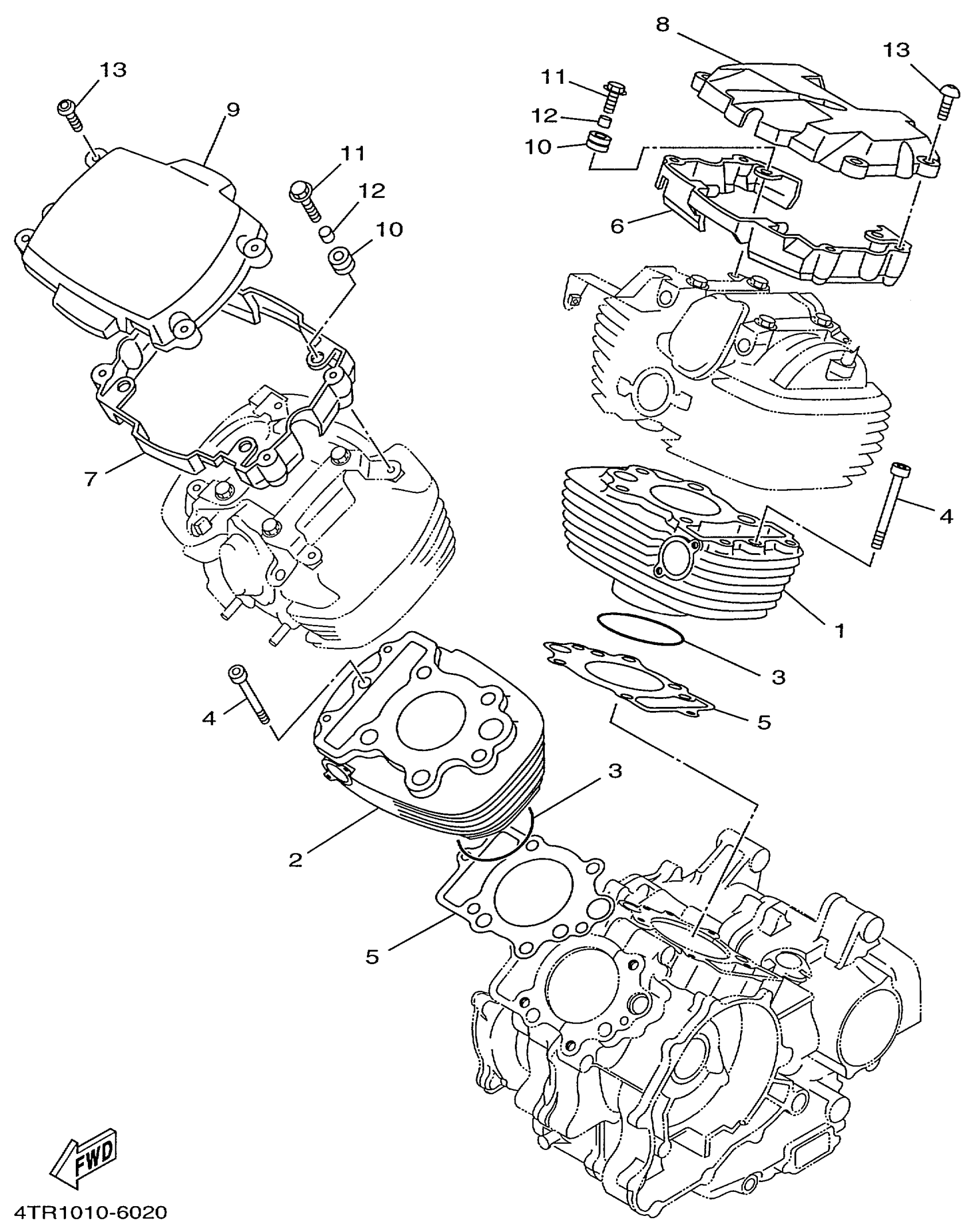

Yamaha XVS650KC (V-STAR CUSTOM CA) 5FB2C 1998 CYLINDER Diagram

#

Description
Price

1

CYLINDER

4VR-11310-11-00

Unavailable

2

CYLINDER 2

4VR-11320-11-00

Unavailable

3

O-RING(4ES)

93210-84724-00

$7.94

4

BOLT, SOCKET

91317-06085-00

Unavailable

5

GASKET, CYLINDER

4VR-11351-01-00

$17.39

6

COVER, CYLINDER HEAD 1

4VR-11191-00-00

Unavailable

7

COVER, CYLINDER HEAD 2

4VR-11192-00-00

Unavailable

8

COVER, CYLINDER HEAD 1

4VR-11190-00-00

$102.80

9

COVER 2

4VR-1111N-00-00

Unavailable

10

GROMMET (462)

90480-13018-00

$5.81

11

BOLT, WITH WASHER(81H)

90119-06118-00

$5.75

12

COLLAR

90387-06043-00

$6.58

13

SCREW(4DN)

90149-06302-00

Unavailable
