2003 Yamaha V-Star Classic CA (XVS650ARC) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2003 Yamaha V-Star Classic CA (XVS650ARC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

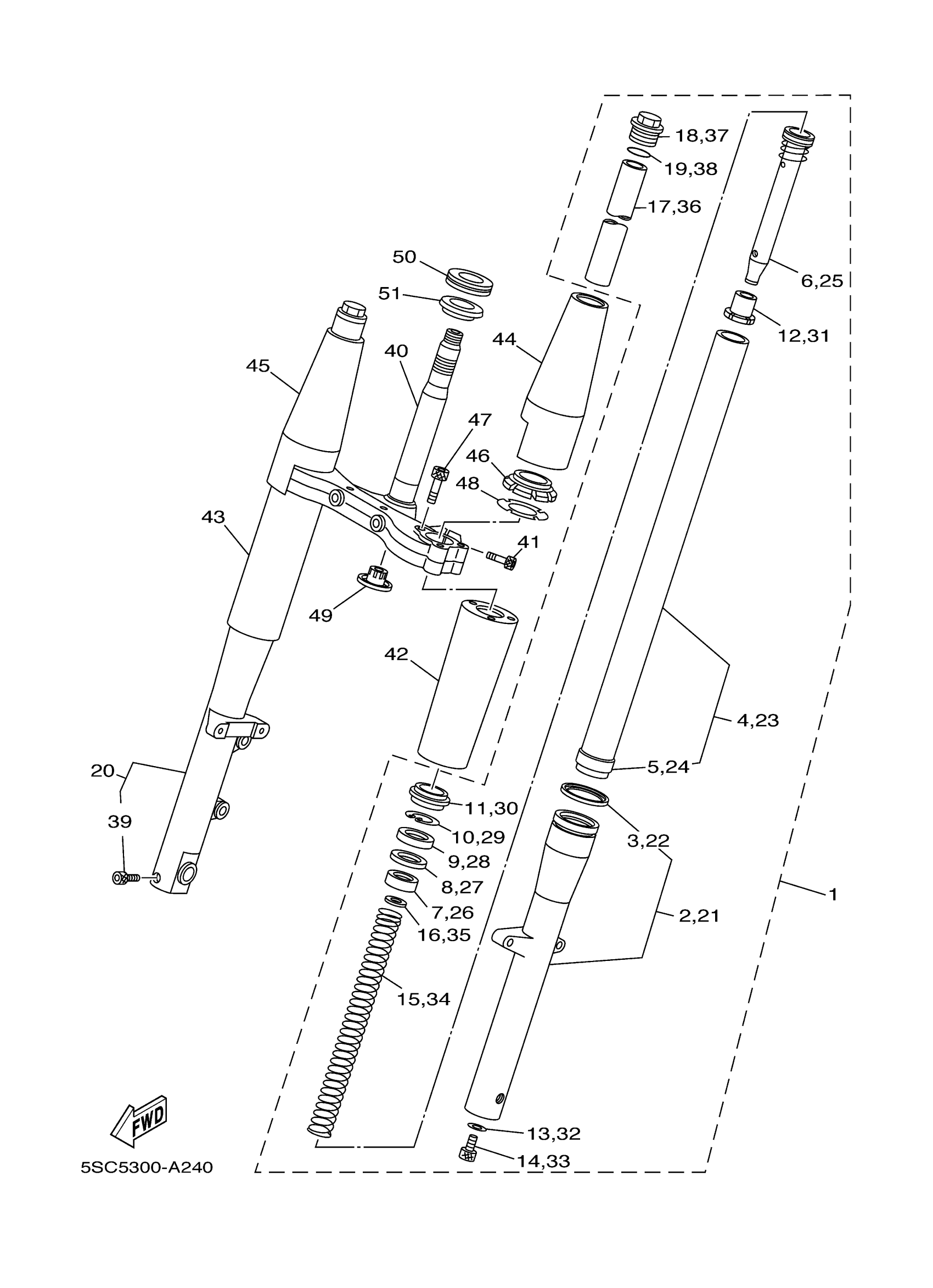

2003 Yamaha V-Star Classic CA (XVS650ARC) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

5BN-23102-12-00

—
Out of stock

2

TUBE, OUTER (LEFT)

5BN-23126-10-00

—
Out of stock

3

GUIDE, BOOT

5BN-23193-00-00

1
Out of stock

4

INNER TUBE COMP.1

5BN-23110-01-00

—
Out of stock

5

PISTON, FRONT FORK

5BN-23171-00-00

1
Out of stock

6

CYLINDER COMP., FRONT FORK

5BN-23170-00-00

—
Out of stock

7

METAL, SLIDE 1

4FM-23125-40-00

1
Out of stock

8

WASHER, OIL SEAL

36Y-23146-10-00

1
Out of stock

9

OIL SEAL

4EB-23145-01-00

1
Out of stock

10

CLIP, OIL SEAL

26H-23156-00-00

1
Out of stock

11

SEAL, DUST

4EB-23144-00-00

1
Out of stock

12

SPINDLE, TAPER

4YR-23173-00-00

—
Out of stock

13

GASKET

509-23158-L0-00

1
Out of stock

14

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

1
Out of stock

15

SPRING, FRONT FORK

5BN-23141-00-00

—
Out of stock

16

WASHER, SPRING UPPER

4DW-23149-40-00

—
Out of stock

17

SPACER

4TR-23118-00-00

—
Out of stock

18

BOLT, CAP

1D0-23111-00-00

—
Out of stock

19

O-RING

43F-23188-10-00

—
Out of stock

20

FRONT FORK ASSY (R.H)

5BN-23103-12-00

—
Out of stock

21

TUBE, OUTER (RIGHT)

5BN-23136-10-00

—
Out of stock

22

GUIDE, BOOT

5BN-23193-00-00

1
Out of stock

23

INNER TUBE COMP.1

5BN-23110-01-00

—
Out of stock

24

PISTON, FRONT FORK

5BN-23171-00-00

1
Out of stock

25

CYLINDER COMP., FRONT FORK

5BN-23170-00-00

—
Out of stock

26

METAL, SLIDE 1

4FM-23125-40-00

1
Out of stock

27

WASHER, OIL SEAL

36Y-23146-10-00

1
Out of stock

28

OIL SEAL

4EB-23145-01-00

1
Out of stock

29

CLIP, OIL SEAL

26H-23156-00-00

1
Out of stock

30

SEAL, DUST

4EB-23144-00-00

1
Out of stock

31

SPINDLE, TAPER

4YR-23173-00-00

—
Out of stock

32

GASKET

509-23158-L0-00

1
Out of stock

33

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

1
Out of stock

34

SPRING, FRONT FORK

5BN-23141-00-00

—
Out of stock

35

WASHER, SPRING UPPER

4DW-23149-40-00

—
Out of stock

36

SPACER

4TR-23118-00-00

—
Out of stock

37

BOLT, CAP

1D0-23111-00-00

—
Out of stock

38

O-RING

43F-23188-10-00

—
Out of stock

39

BOLT,SOCKET

91314-08040-00

—
Out of stock

40

UNDER BRACKET COMP.

5KS-23340-10-00

—
Out of stock

41

BOLT,SOCKET

91314-08020-00

—
Out of stock

42

COVER, LOWER 1

5BN-23123-01-00

—
Out of stock

43

COVER, LOWER 2

5BN-23133-01-00

—
Out of stock

44

COVER, UPPER 1

5KS-23121-10-00

—
Out of stock

45

COVER, UPPER 2

5KS-23131-10-00

—
Out of stock

46

GASKET

5BN-23163-00-00

—
Out of stock

47

BOLT, SPECIAL

5BN-23394-01-00

1
Out of stock

48

WASHER, FELT

5BN-23165-00-00

1
Out of stock

49

COVER, LOWER 1

4KM-23123-01-00

—
Out of stock

50

BEARING(3FV)

93399-99932-00

—
Out of stock

51

SEAL, STEERING

3FV-23462-00-00

—
Out of stock

52

FORK SEAL KIT (TWO FORKS)

4EB-W003B-00-00

—
Out of stock
