2002 Yamaha V-Star Classic CA (XVS650APC) Front Fork Diagram

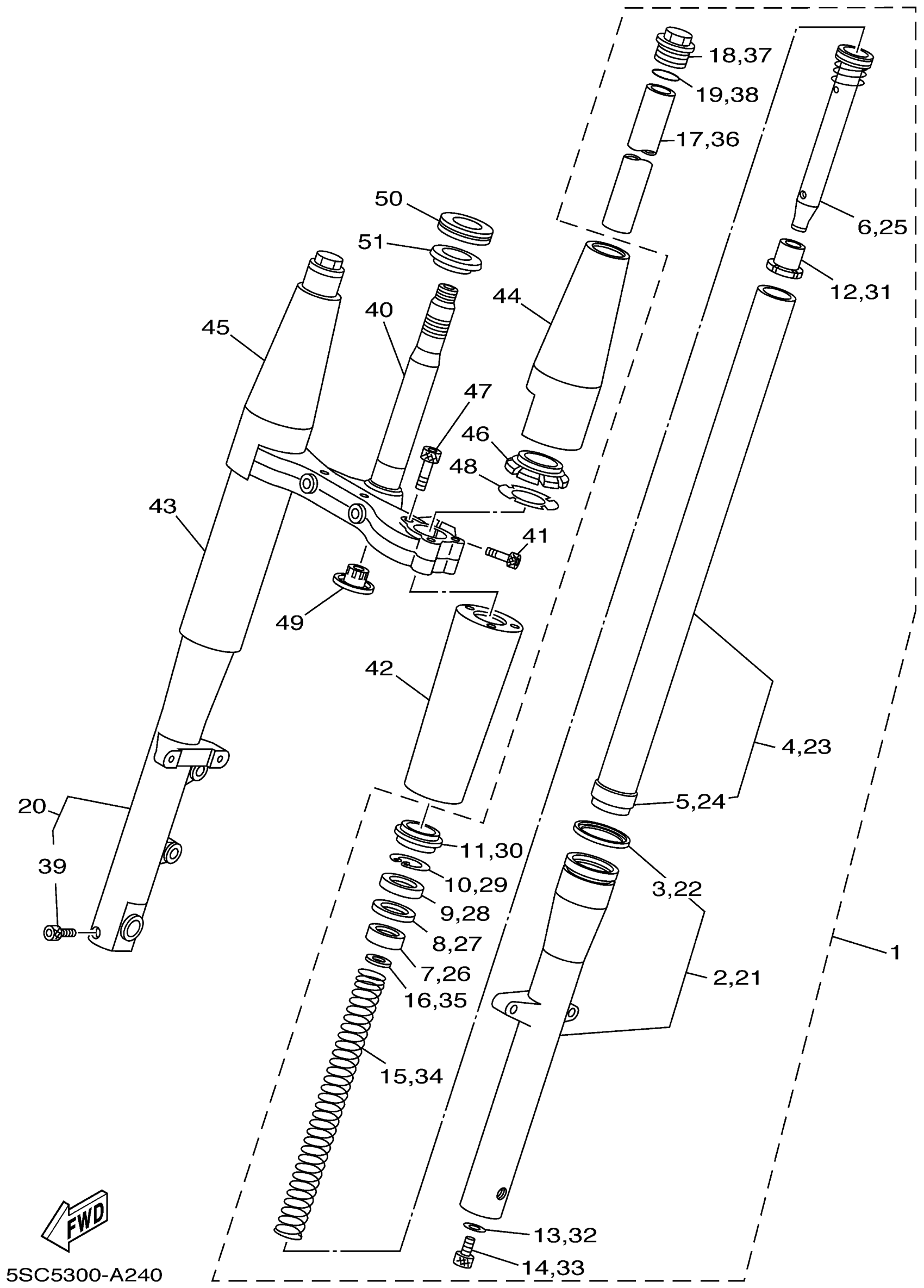

Find the part on the Front Fork diagram for your 2002 Yamaha V-Star Classic CA (XVS650APC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FORK ASSY (L.H)
5BN-23102-12-00
3
GUIDE, BOOT
5BN-23193-00-00
4
INNER TUBE COMP.1
5BN-23110-01-00
6
CYLINDER COMP., FRONT FORK
5BN-23170-00-00
15
SPRING, FRONT FORK
5BN-23141-00-00
20
FRONT FORK ASSY (R.H)
5BN-23103-12-00
22
GUIDE, BOOT
5BN-23193-00-00
23
INNER TUBE COMP.1
5BN-23110-01-00
25
CYLINDER COMP., FRONT FORK
5BN-23170-00-00
34
SPRING, FRONT FORK
5BN-23141-00-00
39
BOLT,SOCKET
91314-08040-00
40
UNDER BRACKET COMP.
5KS-23340-10-00
42
COVER, LOWER 1
5BN-23123-01-00
43
COVER, LOWER 2
5BN-23133-01-00
44
COVER, UPPER 1
5KS-23121-10-00
45
COVER, UPPER 2
5KS-23131-10-00
46
GASKET
5BN-23163-00-00
47
BOLT, SPECIAL
5BN-23394-01-00
48
WASHER, FELT
5BN-23165-00-00
