2002 Yamaha V-Star Classic CA (XVS650APC) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2002 Yamaha V-Star Classic CA (XVS650APC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

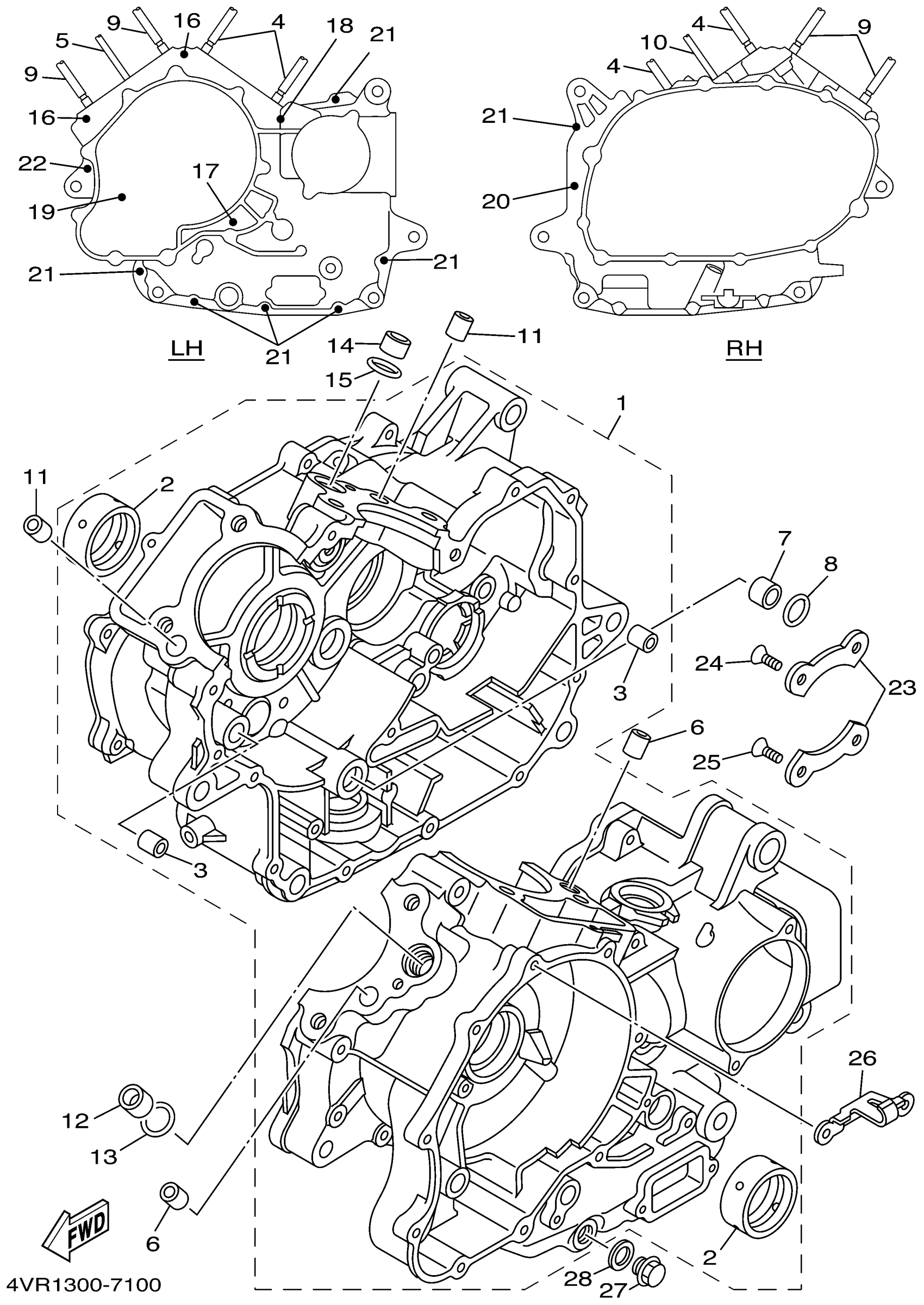

2002 Yamaha V-Star Classic CA (XVS650APC) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

4TR-15100-19-00

1
Out of stock

2

PIN, DOWEL(MH0)

91815-16017-00

1
Out of stock

3

PLANE BEARING, CRANKSHAFT 1

22U-11416-80-00

1
Out of stock

3

PLANE BEARING, CRANKSHAFT 1

22U-11416-90-00

—
Out of stock

4

BOLT, STUD(4TR)

90116-10611-00

—
Out of stock

5

BOLT, STUD (583 CYLINDER)

90116-08190-00

1
Out of stock

6

PIN, DOWEL

99530-14016-00

1
Out of stock

7

COLLAR (1L9)

90387-16547-00

1
Out of stock

8

O-RING (1L9)

93210-18322-00

1
Out of stock

9

BOLT, STUD (22U)

90116-10405-00

1
Out of stock

10

BOLT, STUD (583 CYLINDER)

90116-08190-00

1
Out of stock

11

PIN, DOWEL

99530-14016-00

1
Out of stock

12

COLLAR (1L9)

90387-16547-00

1
Out of stock

13

O-RING (1L9)

93210-18322-00

1
Out of stock

14

COLLAR (1L9)

90387-16547-00

1
Out of stock

15

O-RING (1L9)

93210-18322-00

1
Out of stock

16

BOLT, SOCKET

91314-08060-00

—
Out of stock

17

BOLT, HEXAGON SOCKET HEAD

90110-08003-00

—
Out of stock

18

BOLT, SOCKET

91314-08100-00

—
Out of stock

19

BOLT,SOCKET

91317-06095-00

—
Out of stock

20

BOLT,SOCKET

91380-06045-00

—
Out of stock

21

BOLT,SOCKET

91317-06045-00

—
Out of stock

22

BOLT,SOCKET

91314-06055-00

—
Out of stock

23

PLATE, BEARING COVER

11H-15383-02-00

—
Out of stock

24

SCREW, COUNTERSUNK (22U)

90151-08022-00

—
Out of stock

25

SCREW

90149-08013-00

—
Out of stock

26

HOLDER, CLUTCH CABLE

22U-15441-02-00

—
Out of stock

27

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

—
Out of stock

28

GASKET

214-11198-01-00

—
Out of stock
