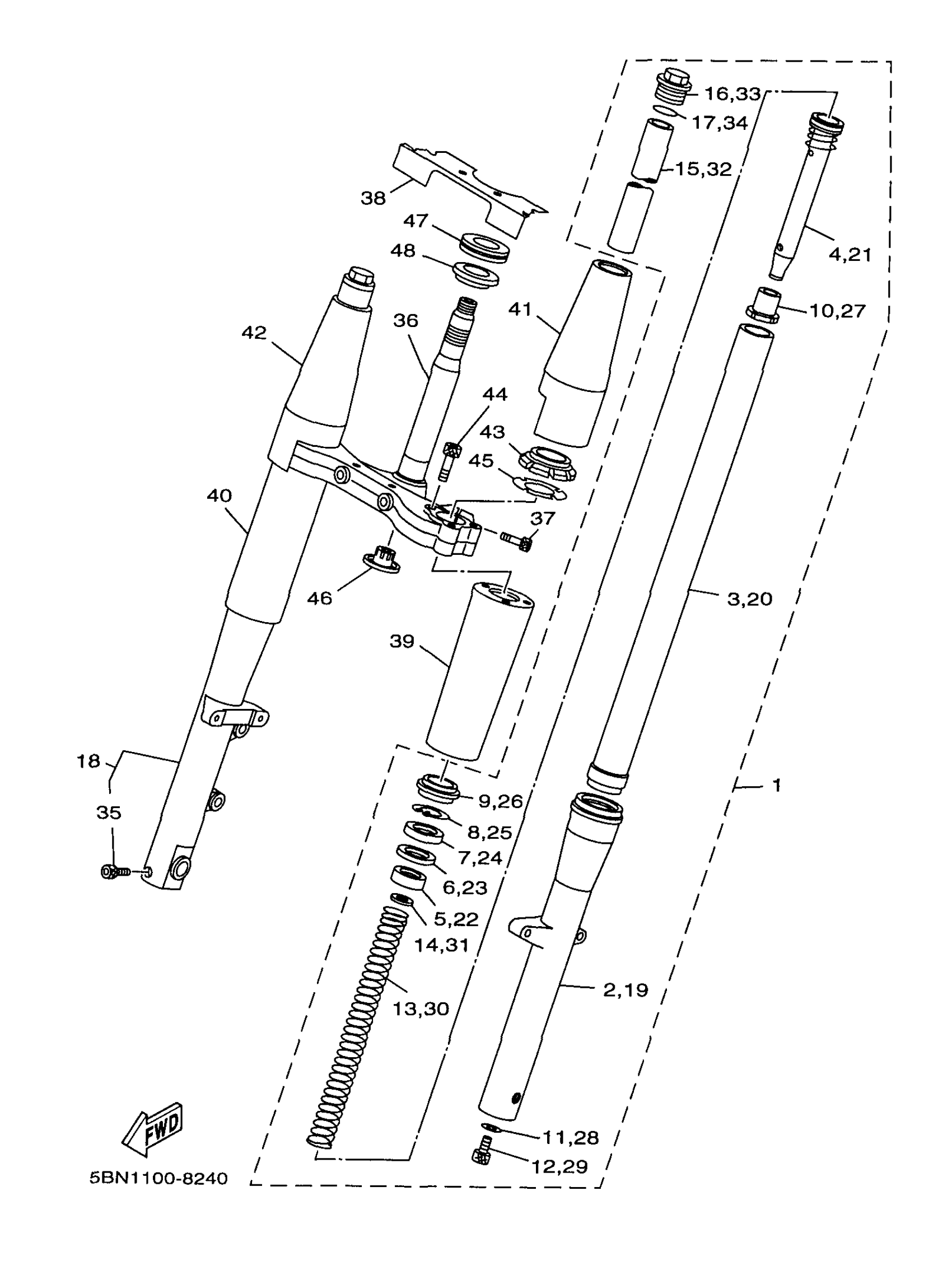

Yamaha XVS650AKC (V-STAR CLASSIC CA) 5BN2 1998 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

5BN-23102-02-00

Unavailable

2

. TUBE, OUTER (LEFT)

5BN-23126-00-00

Unavailable

3

INNER TUBE COMP.1

5BN-23110-01-00

Unavailable

4

CYLINDER COMP., FRONT FORK

5BN-23170-00-00

Unavailable

5

METAL, SLIDE 1

4FM-23125-40-00

$27.32

6

WASHER, OIL SEAL

36Y-23146-10-00

$20.60

7

OIL SEAL

4EB-23145-01-00

$22.64

8

CLIP, OIL SEAL

26H-23156-00-00

$6.17

9

SEAL, DUST

4EB-23144-00-00

$18.18

10

SPINDLE, TAPER

4YR-23173-00-00

Unavailable

11

GASKET

509-23158-L0-00

$13.39

12

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

13

SPRING, FRONT FORK

5BN-23141-00-00

Unavailable

14

WASHER, SPRING UPPER

4DW-23149-40-00

$6.33

15

SPACER

4TR-23118-00-00

Unavailable

16

BOLT, CAP

1D0-23111-00-00

Unavailable

17

O-RING

43F-23188-10-00

Unavailable

18

FRONT FORK ASSY (R.H)

5BN-23103-02-00

Unavailable

19

. TUBE, OUTER (RIGHT)

5BN-23136-00-00

Unavailable

20

INNER TUBE COMP.1

5BN-23110-01-00

Unavailable

21

CYLINDER COMP., FRONT FORK

5BN-23170-00-00

Unavailable

22

METAL, SLIDE 1

4FM-23125-40-00

$27.32

23

WASHER, OIL SEAL

36Y-23146-10-00

$20.60

24

OIL SEAL

4EB-23145-01-00

$22.64

25

CLIP, OIL SEAL

26H-23156-00-00

$6.17

26

SEAL, DUST

4EB-23144-00-00

$18.18

27

SPINDLE, TAPER

4YR-23173-00-00

Unavailable

28

GASKET

509-23158-L0-00

$13.39

29

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

30

SPRING, FRONT FORK

5BN-23141-00-00

Unavailable

31

WASHER, SPRING UPPER

4DW-23149-40-00

$6.33

32

SPACER

4TR-23118-00-00

Unavailable

33

BOLT, CAP

1D0-23111-00-00

Unavailable

34

O-RING

43F-23188-10-00

Unavailable

35

BOLT,SOCKET

91314-08040-00

Unavailable

36

UNDER BRACKET COMP.

5KS-23340-10-00

Unavailable

37

BOLT,SOCKET

91314-08020-00

Unavailable

38

PROTECTOR

5BN-23472-00-00

Unavailable

39

COVER, LOWER 1

5BN-23123-01-00

Unavailable

40

COVER, LOWER 2

5BN-23133-01-00

Unavailable

41

COVER, UPPER 1

5KS-23121-10-00

Unavailable

42

COVER, UPPER 2

5KS-23131-10-00

Unavailable

43

GASKET

5BN-23163-00-00

Unavailable

44

BOLT,SOCKET

91317-06045-00

Unavailable

45

WASHER, FELT

5BN-23165-00-00

Unavailable

46

COVER, LOWER 1

4KM-23123-01-00

Unavailable

47

BEARING(3FV)

93399-99932-00

Unavailable

48

SEAL, STEERING

3FV-23462-00-00

Unavailable

49

FORK SEAL KIT (TWO FORKS)

4EB-W003B-00-00

Unavailable
