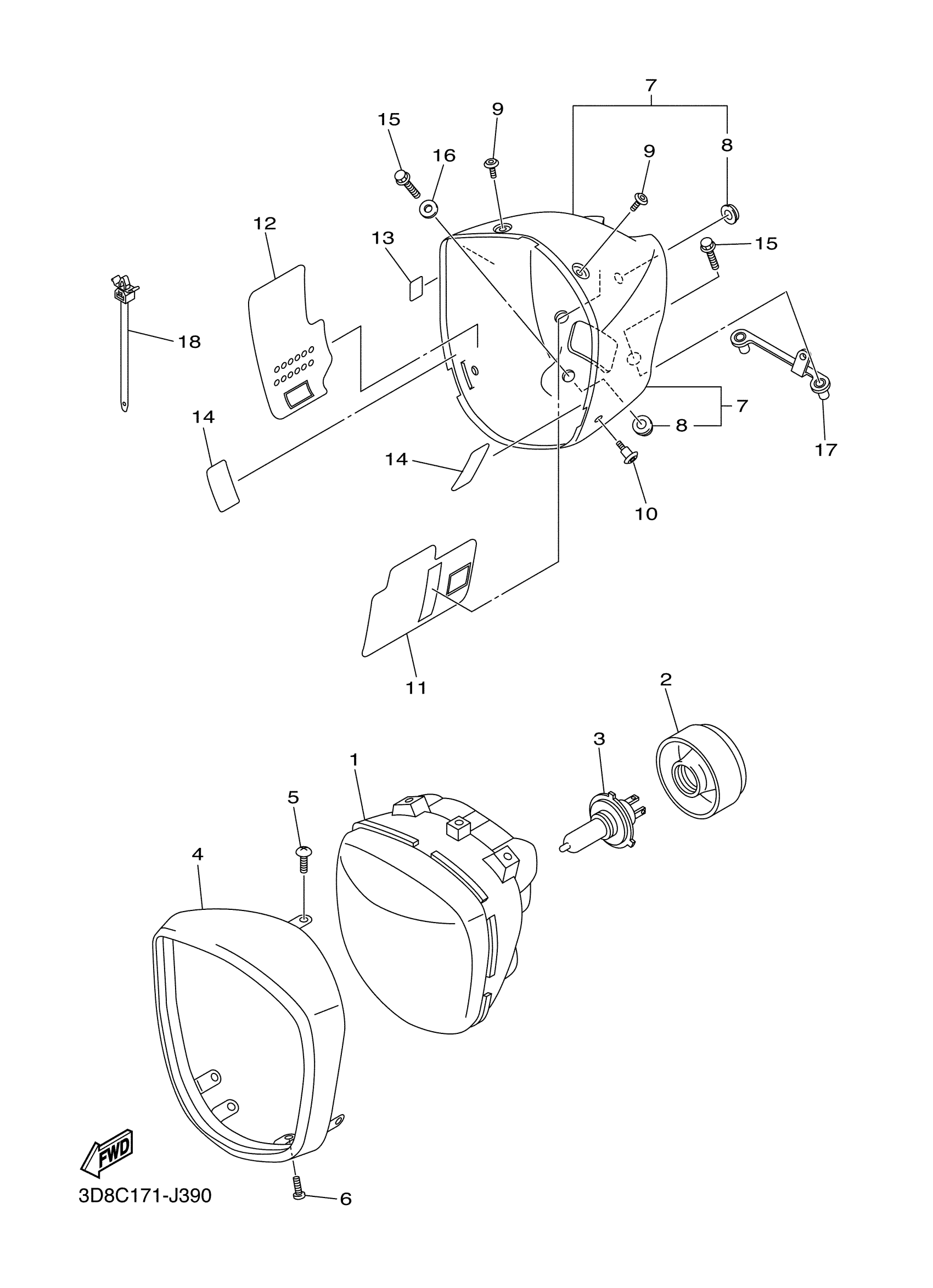

Yamaha XVS13CTFFC (V STAR 1300 DELUXE CA) 2CA8 2015 HEADLIGHT Diagram

#

Description
Price

1

LENS ASSY

3D8-84320-10-00

Unavailable

2

COVER, SOCKET

5JW-84397-00-00

Unavailable

3

BULB, HEADLIGHT

8V0-84314-10-00

$56.31

4

RIM, HEADLIGHT

3D8-84315-00-00

$126.70

5

SCREW, PAN

98517-05012-00

$3.65

6

SCREW, OVAL HEAD TAPPING

97780-40112-00

$3.61

7

BODY ASSY

3D8-84330-10-00

Unavailable

8

DAMPER, HEADLIGHT 1

42X-84366-00-00

$18.38

9

BOLT

90111-05007-00

$5.86

10

BOLT

90111-05020-00

$3.64

11

HOLDER, 1

3D8-8411T-00-00

Unavailable

12

HOLDER, 2

3D8-8411U-00-00

$13.50

13

PROTECTOR

3MA-27491-00-00

$7.91

14

SEAL 1

3D8-21575-00-00

Unavailable

15

BOLT, FLANGE

95022-06025-00

$1.37

16

COLLAR

90387-06175-00

Unavailable

17

HOLDER

3D8-84387-00-00

Unavailable

18

CLAMP

90464-14006-00

Unavailable
