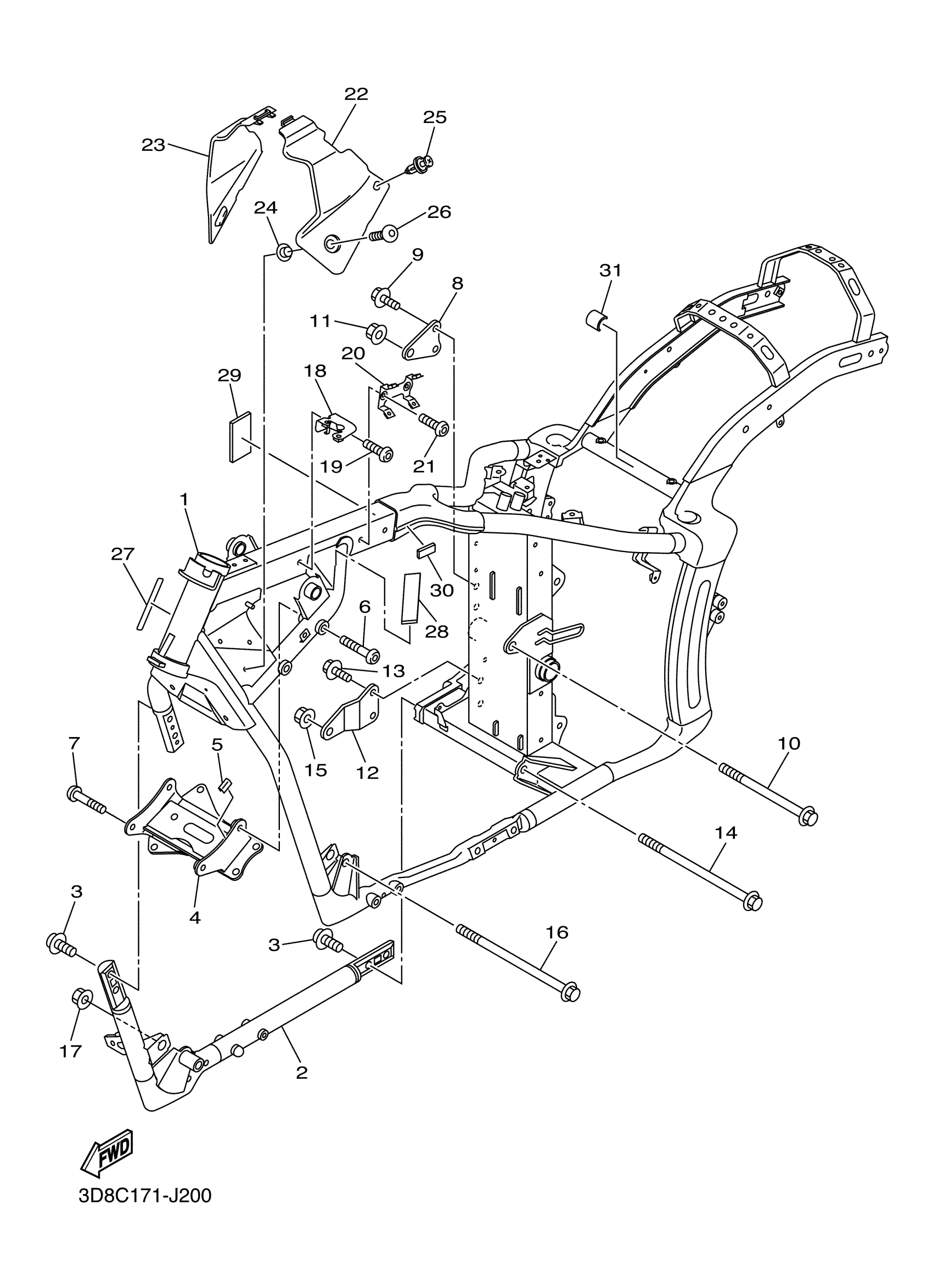

Yamaha XVS13CTFFC (V STAR 1300 DELUXE CA) 2CA8 2015 FRAME Diagram

#

Description
Price

1

FRAME COMP.

3D8-21110-40-00

$2,229.99

2

DOWN TUBE COMP.2

3D8-21150-11-00

$389.94

3

BOLT, HEXAGON SOCKET HEAD

90110-10017-00

$5.18

4

STAY, ENGINE 3

3D8-21317-10-00

Unavailable

5

PROTECTOR

3MA-27491-00-00

$7.91

6

BOLT,HEX. SOCKET BUTTON

90111-10028-00

Unavailable

7

BOLT,HEX. SOCKET BUTTON

90111-10030-00

$3.57

8

STAY, ENGINE 5

3D8-21314-00-00

Unavailable

9

BOLT, FLANGE

95817-10020-00

$4.89

10

BOLT, FLANGE

90105-12043-00

Unavailable

11

NUT, SELF-LOCKING

90185-12002-00

$9.38

12

STAY, ENGINE 3

3D8-21316-00-00

Unavailable

13

BOLT, FLANGE

95817-10020-00

$4.89

14

BOLT, FLANGE

90105-12044-00

$18.86

15

NUT, SELF-LOCKING

90185-12002-00

$9.38

16

BOLT, FLANGE

90105-12045-00

Unavailable

17

NUT, SELF-LOCKING

90185-12002-00

$9.38

18

BRKT., LH.

3D8-2119W-10-00

Unavailable

19

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

20

BRACKET, COIL

3D8-21359-01-00

Unavailable

21

BOLT (33M)

91312-06014-00

Unavailable

22

COVER, SIDE 5

3D8-2171E-01-00

Unavailable

23

COVER, SIDE 6

3D8-2171X-01-00

Unavailable

24

COLLAR

90387-06071-00

Unavailable

25

RIVET(4JH)

90269-07076-00

Unavailable

26

BOLT

90111-06061-00

Unavailable

27

PROTECTOR

3D8-2117G-00-00

$5.32

28

DAMPER

4XY-2834E-00-00

Unavailable

29

DAMPER

3D8-2113B-00-00

Unavailable

30

DAMPER

5H0-8235Y-M0-00

Unavailable

31

PROTECTOR

3MA-27491-00-00

$7.91
