2017 Yamaha Stryker CA (XVS13CHCB) Intake 1 Diagram

← All diagrams

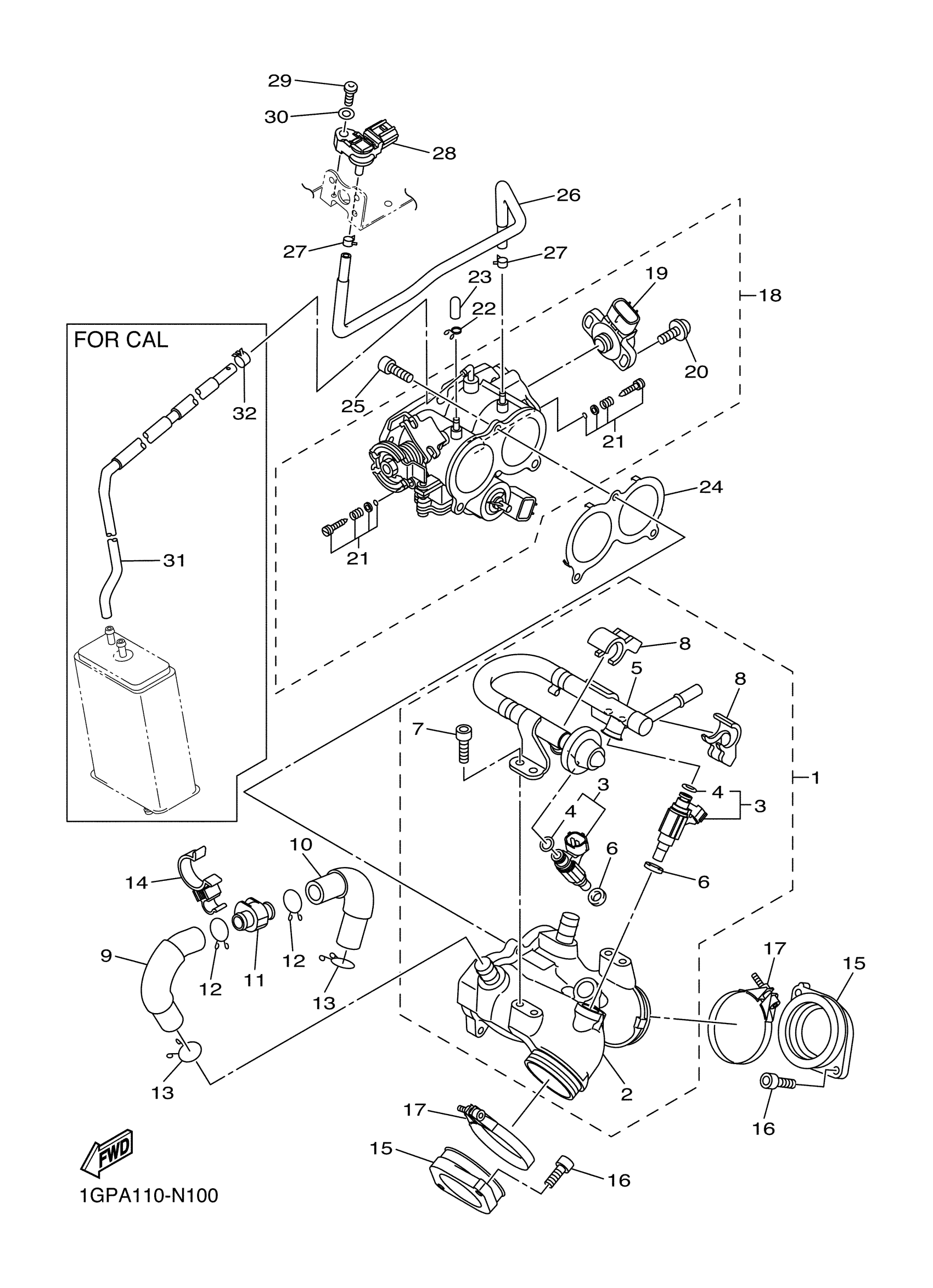

Find the part on the Intake 1 diagram for your 2017 Yamaha Stryker CA (XVS13CHCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha Stryker CA (XVS13CHCB) Intake 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR JOINT ASSY

3D8-13590-40-00

—
Out of stock

2

MANIFOLD

3D8-13640-00-00

—
Out of stock

3

INJECTOR ASSY

3D8-13761-00-00

1
Out of stock

4

O-RING

5FL-14147-00-00

1
Out of stock

5

PIPE INLET ASSEMBLY

3D8-13930-10-00

1
Out of stock

6

GASKET, MANIFOLD

8FP-13556-00-00

1

$12.27

In stock

7

BOLT (33M)

91312-06014-00

1

$4.74

In stock

8

HOLDER

3D8-14261-00-00

—
Out of stock

9

PIPE, SILENCER

3D8-1441J-01-00

—
Out of stock

10

PIPE, SILENCER 2

3D8-1442J-01-00

—
Out of stock

11

PLUG

3D8-14862-00-00

—
Out of stock

12

CLIP

90467-18196-00

1

$5.62

In stock

13

CLIP

90467-18196-00

1

$5.62

In stock

14

CLAMP

90464-23004-00

—

$2.45

In stock

15

JOINT, CARBURETOR 1

3D8-13586-00-00

1
Out of stock

16

BOLT,SOCKET HEAD

91314-06020-00

—

$2.05

In stock

17

HOSE CLAMP ASSY

90450-62006-00

—

$10.77

In stock

18

THROTTLE BODY ASSY

3D8-13750-42-00

—
Out of stock

19

THROTTLE SENSOR AS

8GL-85885-01-00

—

$76.17

In stock

20

SCREW

4KM-24453-00-00

—

$4.85

In stock

21

AIR SCREW SET

3D8-14104-00-00

—

$14.75

In stock

22

CLIP, PIPE

8A7-14139-00-00

—

$6.80

In stock

23

CAP

895-14169-00-00

—

$4.02

In stock

24

SEAL

BL3-14467-00-00

—

$11.25

In stock

25

BOLT,SOCKET HEAD

91314-06020-00

—

$2.05

In stock

26

HOSE, AIR

27D-13895-00-00

—
Out of stock

27

CLIP(42X)

90467-07093-00

—

$1.72

In stock

28

SENSOR, PRESSURE

5S7-82380-00-00

—

$161.56

In stock

29

BOLT(3JK)

97027-05020-00

—

$2.48

In stock

30

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock
