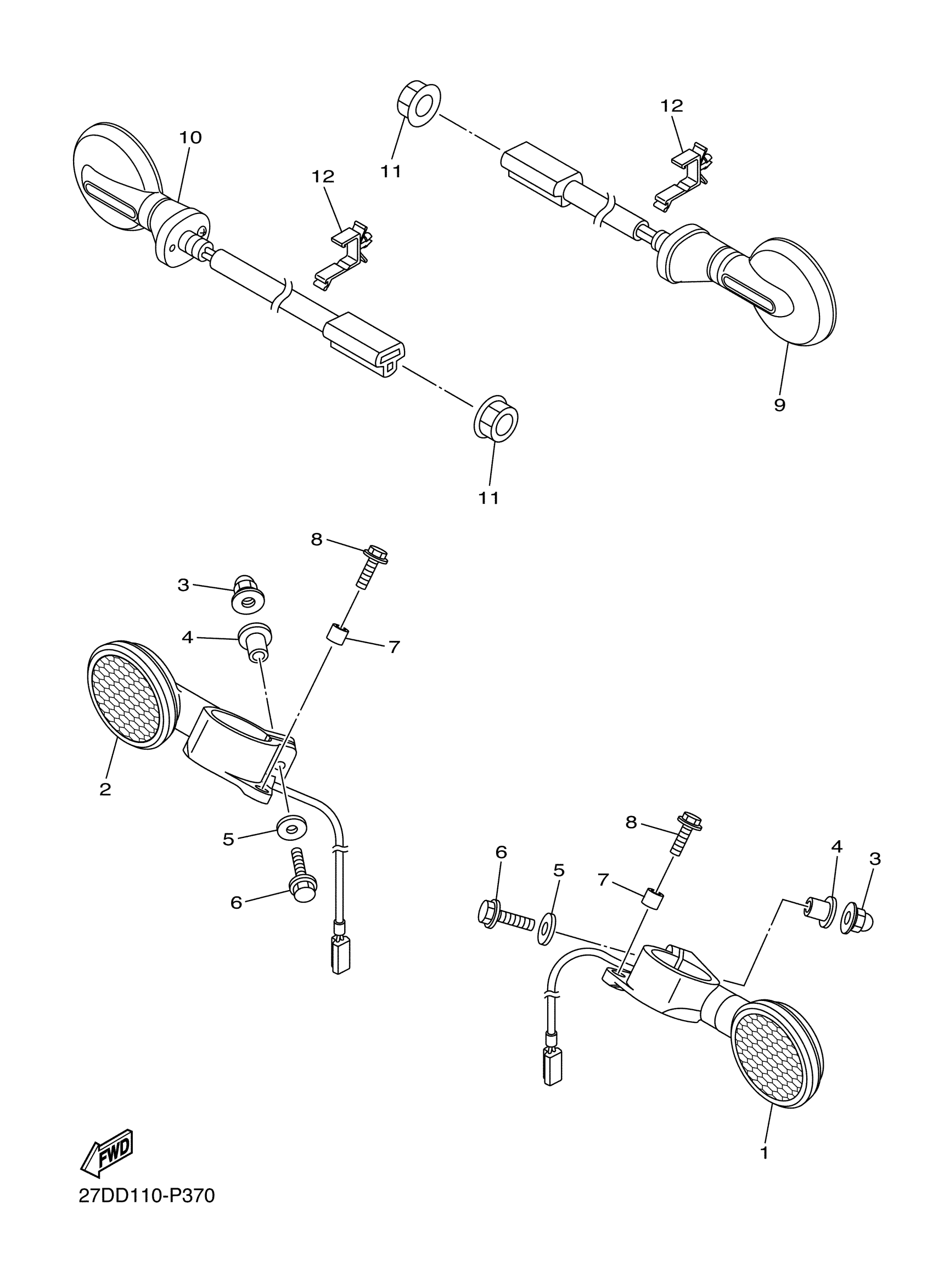

Yamaha XVS13CHCB (STRYKER CA) BJ35 2017 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

27D-83310-21-00

Unavailable

2

FRONT FLASHER LIGHT ASSY 2

27D-83320-21-00

Unavailable

3

NUT, CROWN(1FN)

90176-06055-00

$3.73

4

COLLAR

90387-06076-00

$5.23

5

WASHER, PLATE

90201-06045-00

$5.76

6

BOLT, FLANGE

95817-06025-00

Unavailable

7

COLLAR

90387-08085-00

$5.65

8

BOLT, SMALL FLANGE

95027-08020-00

$5.75

9

REAR FLASHER LIGHT

1US-83330-01-00

Unavailable

10

REAR FLASHER LIGHT

1US-83340-01-00

$115.78

11

95702-12500

95702-12500-00

$2.98

12

CLAMP (1J7)

90464-16021-00

$10.70
