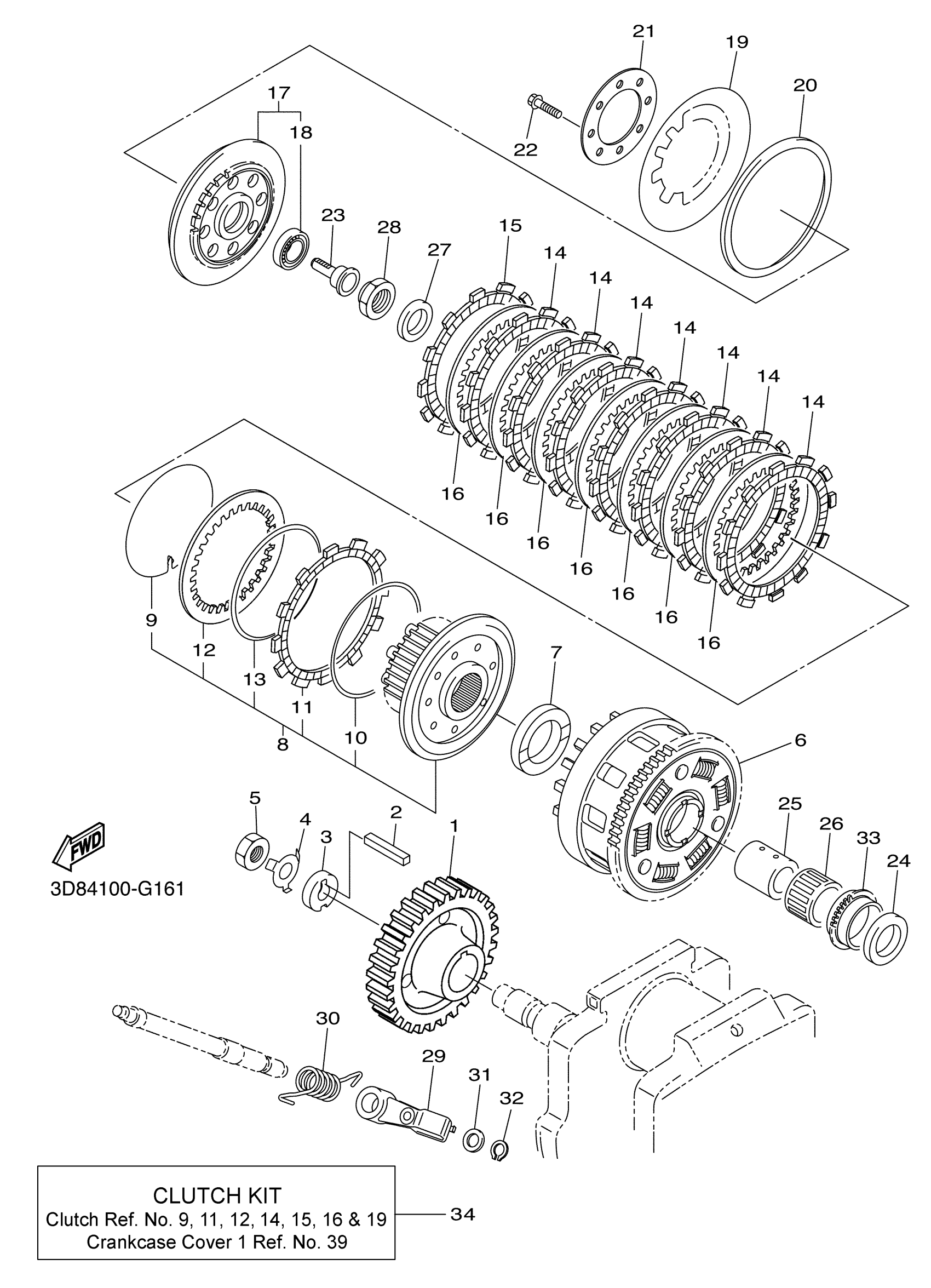

Find the part on the Clutch diagram for your 2017 Yamaha Stryker CA (XVS13CHCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha Stryker CA (XVS13CHCB) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVE

3D8-16111-10-00

—
Out of stock

2

KEY, STRAIGHT

90282-10001-00

—
Out of stock

3

SPACER 1

3D8-16181-10-00

—
Out of stock

4

WASHER, LOCK

90215-18003-00

1
Out of stock

5

NUT

90170-18008-00

—
Out of stock

6

PRIMARY DRIVEN GEAR COMP.

3D8-16150-20-00

—
Out of stock

7

PLATE, THRUST 1

5YU-16154-00-00

—
Out of stock

8

CLUTCH BOSS ASSY

3D8-16370-00-00

—
Out of stock

9

RING, CLUTCH BOSS SPRING SET

2H7-16385-00-00

1
Out of stock

10

PLATE, SEAT

36Y-16384-00-00

1
Out of stock

11

PLATE, FRICTION 2

4XV-16331-00-00

1
Out of stock

12

PLATE, CLUTCH 2

2H7-16325-10-00

1
Out of stock

13

SPRING, CLUTCH BOSS

36Y-16383-00-00

1
Out of stock

14

PLATE, FRICTION

5JW-16321-10-00

1
Out of stock

15

PLATE, FRICTION

341-16321-20-00

1
Out of stock

16

PLATE, CLUTCH 2

2H7-16325-10-00

1
Out of stock

17

PRESSURE PLATE ASSY

3D8-16350-00-00

—
Out of stock

18

BEARING(2JN)

93306-00315-00

—
Out of stock

19

SPRING, CLUTCH 2

1TX-16334-00-00

—
Out of stock

20

HOUSING, SPRING

36Y-16335-00-00

—
Out of stock

21

PLATE, PRESSURE 2

1TX-16352-00-00

—
Out of stock

22

BOLT, FLANGE

95817-06025-00

—
Out of stock

23

ROD, PUSH 1

4XV-16356-01-00

—
Out of stock

24

PLATE, THRUST 2

3D8-16164-10-00

—
Out of stock

25

COLLAR

90387-26006-00

—
Out of stock

26

BEARING

93310-33560-00

—
Out of stock

27

WASHER, CONICAL SPRING

90208-20001-00

—
Out of stock

28

NUT

90179-20022-00

—
Out of stock

29

PUSH LEVER ASSY

3D8-16340-00-00

—
Out of stock

30

SPRING, TORSION

90508-18040-00

—
Out of stock

31

WASHER, PLATE

90201-10029-00

—
Out of stock

32

CIRCLIP(10W)

99009-10400-00

—
Out of stock

33

SPROCKET, DRIVE

3D8-13354-10-00

—
Out of stock

34

CLUTCH PLATE KIT

27D-W001G-00-00

—
Out of stock
