2016 Yamaha Stryker (XVS13CGL) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2016 Yamaha Stryker (XVS13CGL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

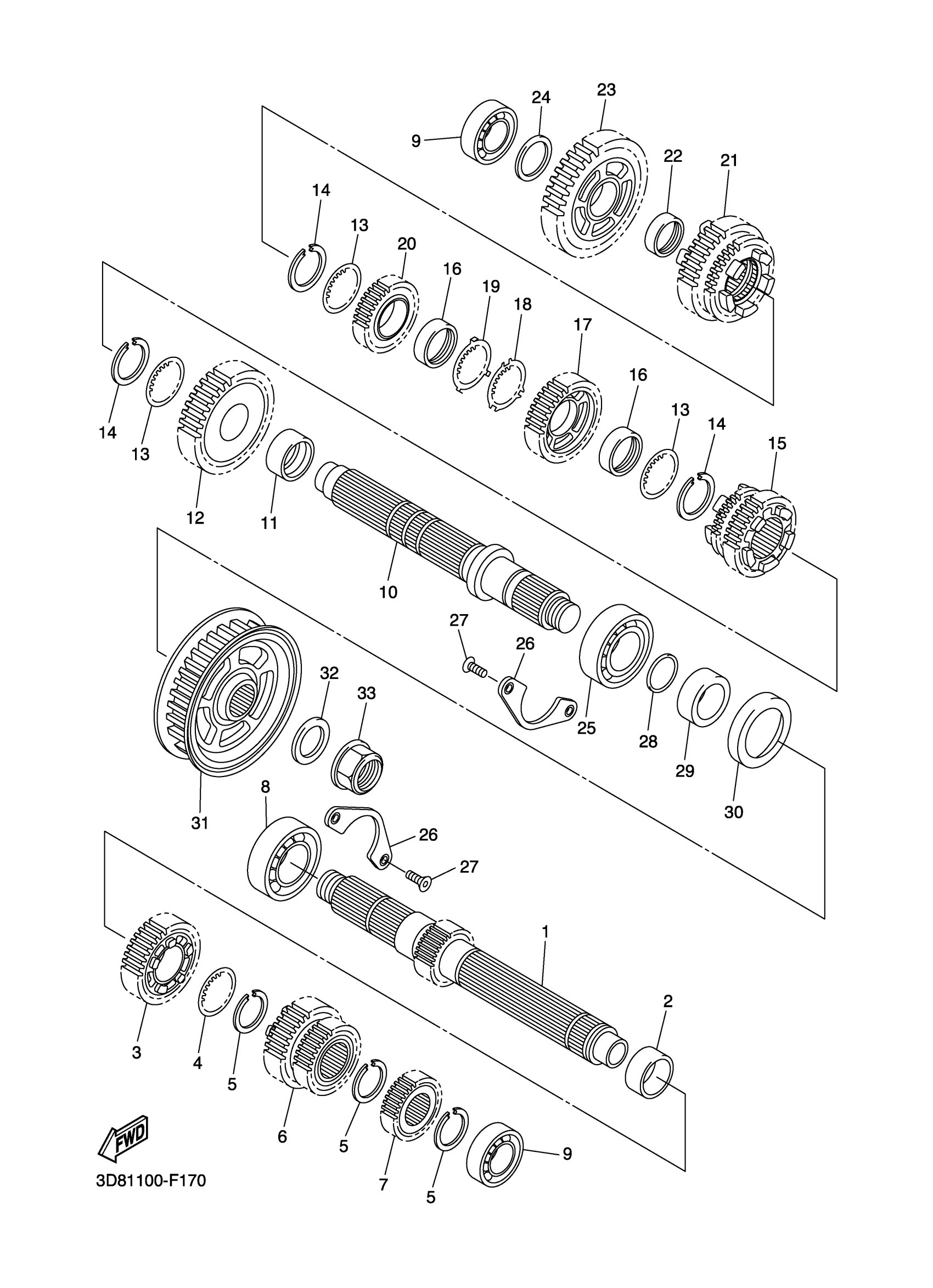

2016 Yamaha Stryker (XVS13CGL) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

3D8-17411-00-00

—
Out of stock

2

COLLAR

90387-28003-00

1
Out of stock

3

GEAR, 5TH PINION

3D8-17151-00-00

—
Out of stock

4

WASHER

90209-25011-00

1
Out of stock

5

CIRCLIP

93440-28184-00

1
Out of stock

6

GEAR, 3RD PINION

27D-17131-00-00

—
Out of stock

7

GEAR, 2ND PINION

3D8-17121-00-00

—
Out of stock

8

BEARING

93306-37817-00

1
Out of stock

9

BEARING

93306-37215-00

1
Out of stock

10

AXLE, DRIVE

3D8-17421-00-00

—
Out of stock

11

COLLAR

90387-31003-00

1
Out of stock

12

GEAR, 2ND WHEEL

3D8-17221-00-00

—
Out of stock

13

WASHER

90209-28008-00

—
Out of stock

14

CIRCLIP

93440-31187-00

1
Out of stock

15

CLUTCH, DOG

3D8-17285-00-00

—
Out of stock

16

COLLAR

90387-28004-00

—
Out of stock

17

GEAR, 3RD WHEEL

3D8-17231-00-00

—
Out of stock

18

WASHER, CLAW

90214-29002-00

—
Out of stock

19

WASHER, CLAW

90214-28002-00

—
Out of stock

20

GEAR, 4TH WHEEL

3D8-17241-00-00

—
Out of stock

21

GEAR, 5TH WHEEL

3D8-17251-00-00

—
Out of stock

22

COLLAR

90387-25008-00

—
Out of stock

23

GEAR, 1ST WHEEL

3D8-17211-00-00

—
Out of stock

24

WASHER, PLATE(83R)

90201-224L4-00

—
Out of stock

25

BRG. R-B 6306 72MM 352.5GK

93306-30610-00

—
Out of stock

26

PLATE, BEARING COVER

3D8-15381-00-00

—
Out of stock

27

SCREW, COUNTERSUNK

90151-06023-00

—
Out of stock

28

O-RING(50M)

93210-27672-00

—
Out of stock

29

COLLAR

90387-30010-00

—
Out of stock

30

OIL SEAL

93102-45012-00

—
Out of stock

31

PULLEY, BELT

27D-17651-00-00

—
Out of stock

32

WASHER, CONICAL SPRING

90208-22004-00

—
Out of stock

33

NUT

90179-22016-00

—
Out of stock
