2016 Yamaha Stryker (XVS13CGL) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2016 Yamaha Stryker (XVS13CGL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

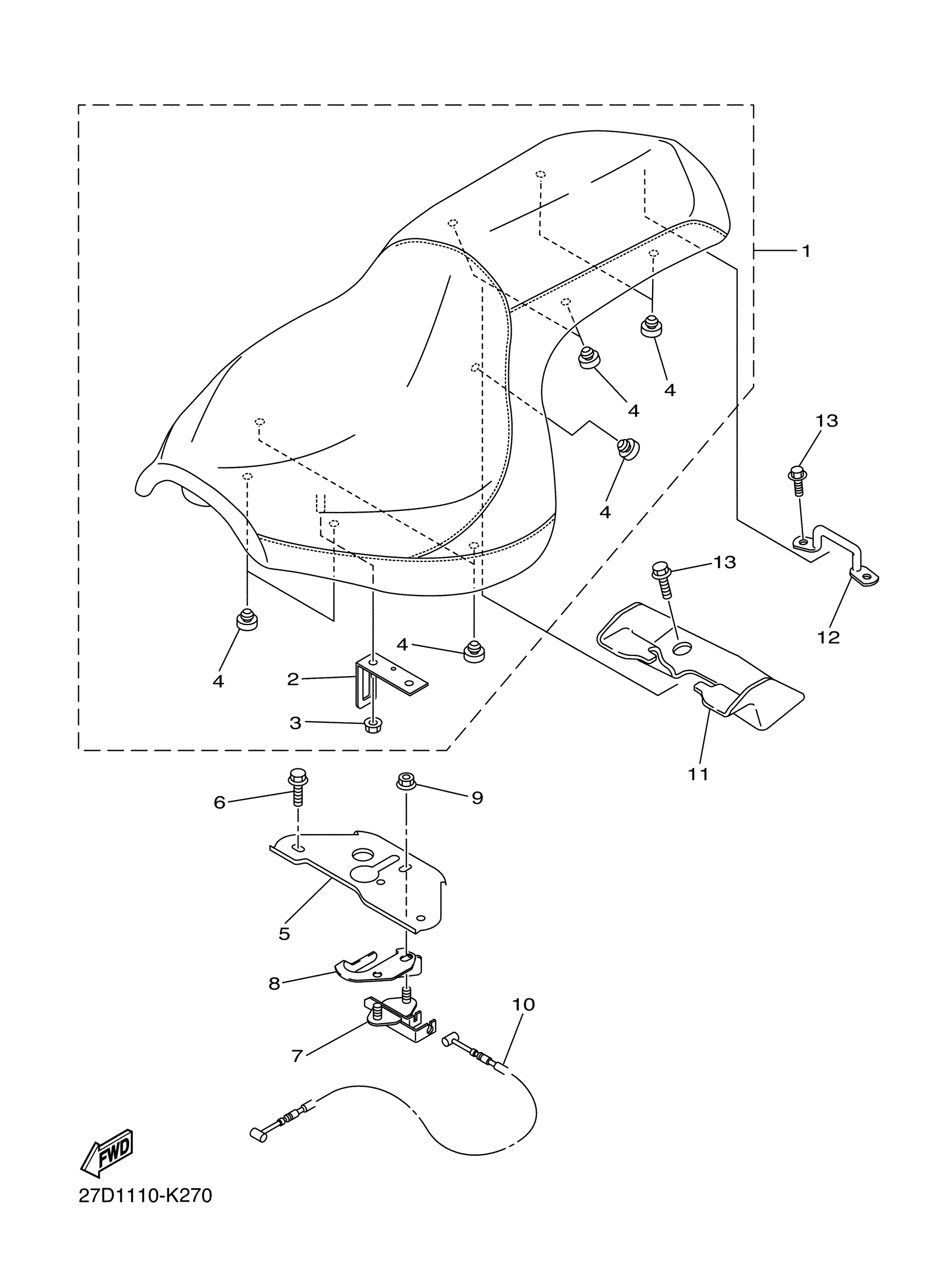

2016 Yamaha Stryker (XVS13CGL) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSY

27D-24730-01-00

—
Out of stock

2

BRACKET, SEAT

4NK-24728-00-00

1
Out of stock

3

NUT, U FLANGE

95604-06200-00

1

$2.35

In stock

4

PAD, SEAT

22W-24741-00-00

1

$7.72

In stock

5

BRACKET, SEAT 1

3D8-21341-10-00

—
Out of stock

6

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock

7

SEAT LOCK ASSY

4BP-24780-00-00

1

$91.92

In stock

8

PLATE

27D-24792-00-00

1
Out of stock

9

NUT, FLANGE

95702-06500-00

1

$1.98

In stock

10

CABLE, SEAT LOCK

5PX-2478E-00-00

1

$17.78

In stock

11

BRACKET

27D-2475N-00-00

1
Out of stock

12

BRACKET 6

1D7-2475R-00-00

1
Out of stock

13

BOLT, FLANGE

95022-08012-00

1

$9.51

In stock
