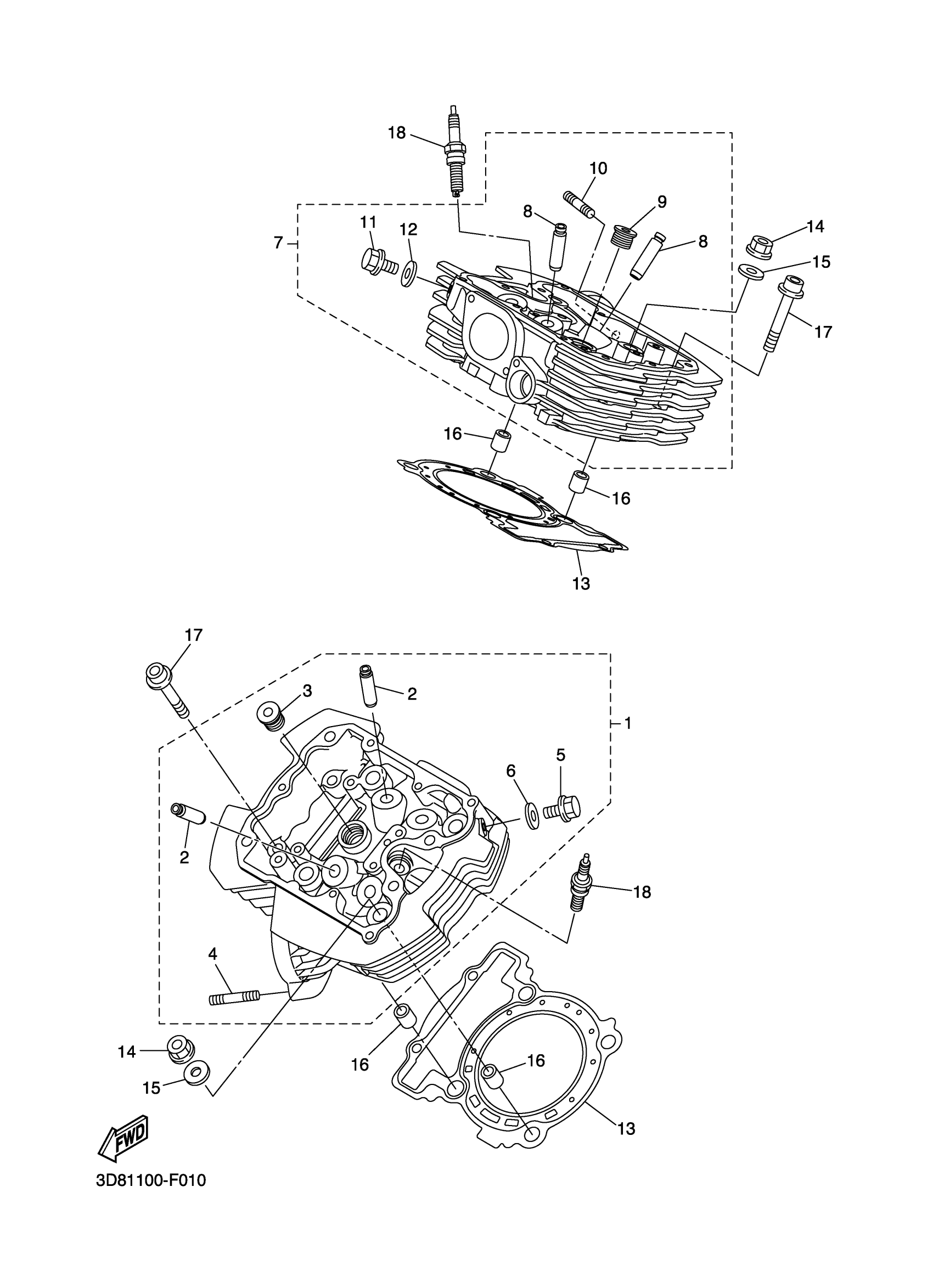

Yamaha XVS13CGL (STRYKER) 27DG 2016 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

3D8-11101-09-00

Unavailable

2

GUIDE, INTAKE VALVE

4G0-11133-11-00

$41.54

3

PLUG, STRAIGHT SCREW

90340-18002-00

$8.95

4

BOLT, STUD

95612-08625-00

$4.37

5

BOLT, FLANGE

95022-08012-00

$8.86

6

GASKET

90430-08119-00

Unavailable

7

CYLINDER HEAD ASSY

3D8-11101-19-00

Unavailable

8

GUIDE, INTAKE VALVE

4G0-11133-11-00

$41.54

9

PLUG, STRAIGHT SCREW

90340-18002-00

$8.95

10

BOLT, STUD

95612-08625-00

$4.37

11

BOLT, FLANGE

95022-08012-00

$8.86

12

GASKET

90430-08119-00

Unavailable

13

GASKET, CYLINDER HEAD 1

3D8-11181-00-00

$35.49

14

Nut

90179-12004-00

$4.87

15

WASHER, PLATE

90201-12025-00

Unavailable

16

PIN, DOWEL(MH0)

91815-16017-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-08065-00

Unavailable

18

LMAR7A9 NGK SPLUG 10PK

LMA-R7A90-00-00

$11.27

18

LMAR6A9 NGK SPLUG 10PK

LMA-R6A90-00-00

$11.84
