2015 Yamaha Stryker (XVS13CFS) Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2015 Yamaha Stryker (XVS13CFS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

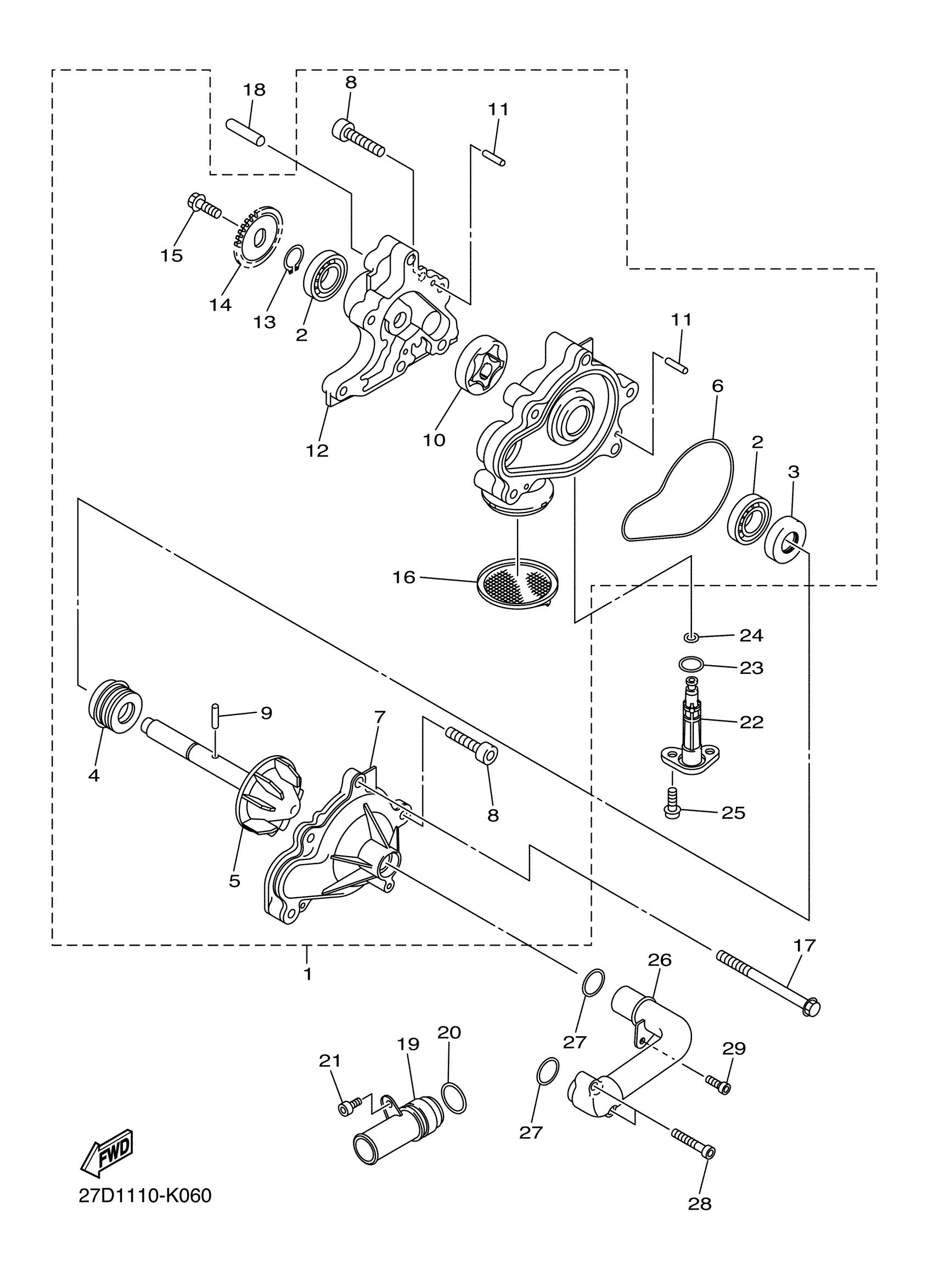

2015 Yamaha Stryker (XVS13CFS) Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WATER PUMP ASSY

3D8-12420-03-00

—
Out of stock

2

BRG,R-B 6001 28MM 28G KY

93306-00105-00

1
Out of stock

3

OIL SEAL

93102-12372-00

1
Out of stock

4

SEAL, MECHANICAL

5VK-12438-00-00

—
Out of stock

5

IMPELLER SHAFT ASSY

3D8-12450-01-00

—
Out of stock

6

O-RING

3D8-12439-00-00

—
Out of stock

7

COVER, HOUSING

3D8-12422-00-00

—
Out of stock

8

BOLT,SOCKET

91317-06025-00

1
Out of stock

9

PIN,DOWEL

93603-17070-00

1
Out of stock

10

ROTOR ASSY 1

3D8-13310-00-00

1
Out of stock

11

PIN,DOWEL (603)

93603-12007-00

1
Out of stock

12

HOUSING, ROTOR

3D8-13336-00-00

—
Out of stock

13

CIRCLIP(10Y)

99009-12400-00

1
Out of stock

14

SPROCKET, DRIVEN

3D8-13355-00-00

—
Out of stock

15

BOLT, FLANGE

90105-06066-00

1
Out of stock

16

STRAINER, OIL

3D8-13411-00-00

—
Out of stock

17

BOLT, HEXAGON SOCKET HEAD

90110-08049-00

—
Out of stock

18

PIN, DOWEL

99530-08012-00

1
Out of stock

19

PIPE 9

3D8-1248E-01-00

—
Out of stock

20

O-RING(1KT)

93210-27778-00

—
Out of stock

21

BOLT,SOCKET

91317-06012-00

—
Out of stock

22

BODY, DRAIN COCK

27D-12562-00-00

—
Out of stock

23

O-RING (32N)

93210-15639-00

—
Out of stock

24

O-RING (11M)

93210-07540-00

—
Out of stock

25

BOLT, HEXAGON SOCKET HEAD

90110-06219-00

—
Out of stock

26

PIPE, WATER

3D8-12564-00-00

—
Out of stock

27

O-RING

93210-235A1-00

—
Out of stock

28

BOLT(J17)

91312-06035-00

—
Out of stock

29

BOLT,SOCKET

91317-06016-00

—
Out of stock
