2015 Yamaha Stryker (XVS13CFS) Intake 2 Diagram

← All diagrams

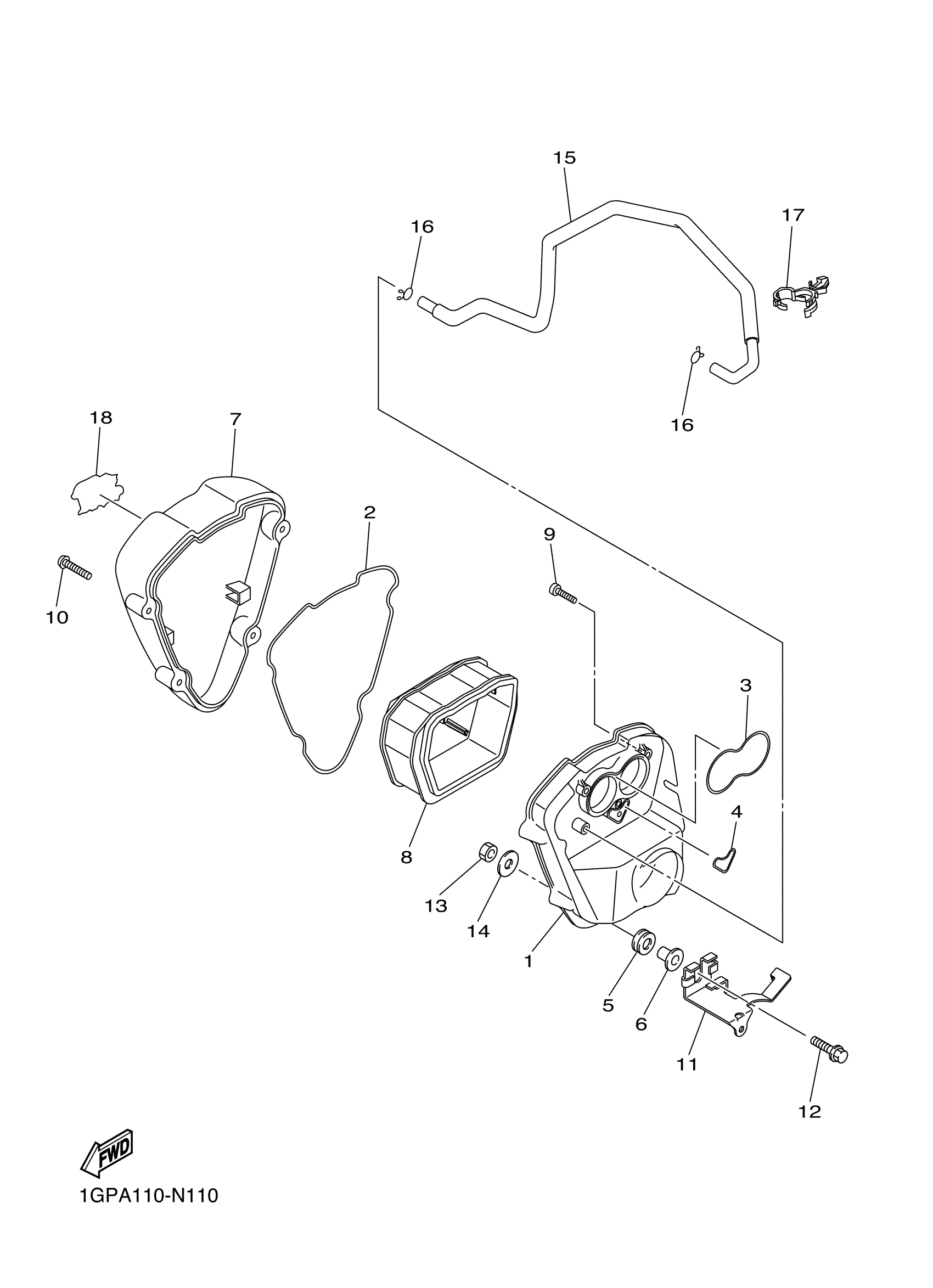

Find the part on the Intake 2 diagram for your 2015 Yamaha Stryker (XVS13CFS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Yamaha Stryker (XVS13CFS) Intake 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

3D8-14411-02-00

1
Out of stock

2

SEAL

51Y-14462-00-00

1

$11.61

In stock

3

SEAL

3D8-14457-00-00

1

$5.93

In stock

4

SEAL

3D8-14462-00-00

1

$5.93

In stock

5

GROMMET

90480-11006-00

1

$3.08

In stock

6

COLLAR(50M)

90387-087L0-00

1

$6.18

In stock

7

CASE, AIR CLEANER 2

1GP-14421-02-00

—
Out of stock

8

ELEMENT, AIR CLEANER

3D8-14451-00-00

1
Out of stock

9

BOLT

91312-05025-00

1

$6.25

In stock

10

BOLT,HEX. SOCKET BUTTON

90111-05024-00

1

$3.56

In stock

11

STAY 1

3D8-14498-10-00

—
Out of stock

12

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

13

NUT, FLANGE

95702-06500-00

1

$1.98

In stock

14

WASHER, PLATE

90201-06088-00

—

$6.26

In stock

15

PIPE, BREATHER 1

3D8-11166-00-00

—
Out of stock

16

CLIP(62Y)

90467-15M14-00

1

$3.46

In stock

17

CLAMP

90464-20009-00

—

$1.88

In stock

18

EMBLEM

1GP-1441K-10-00

—
Out of stock
