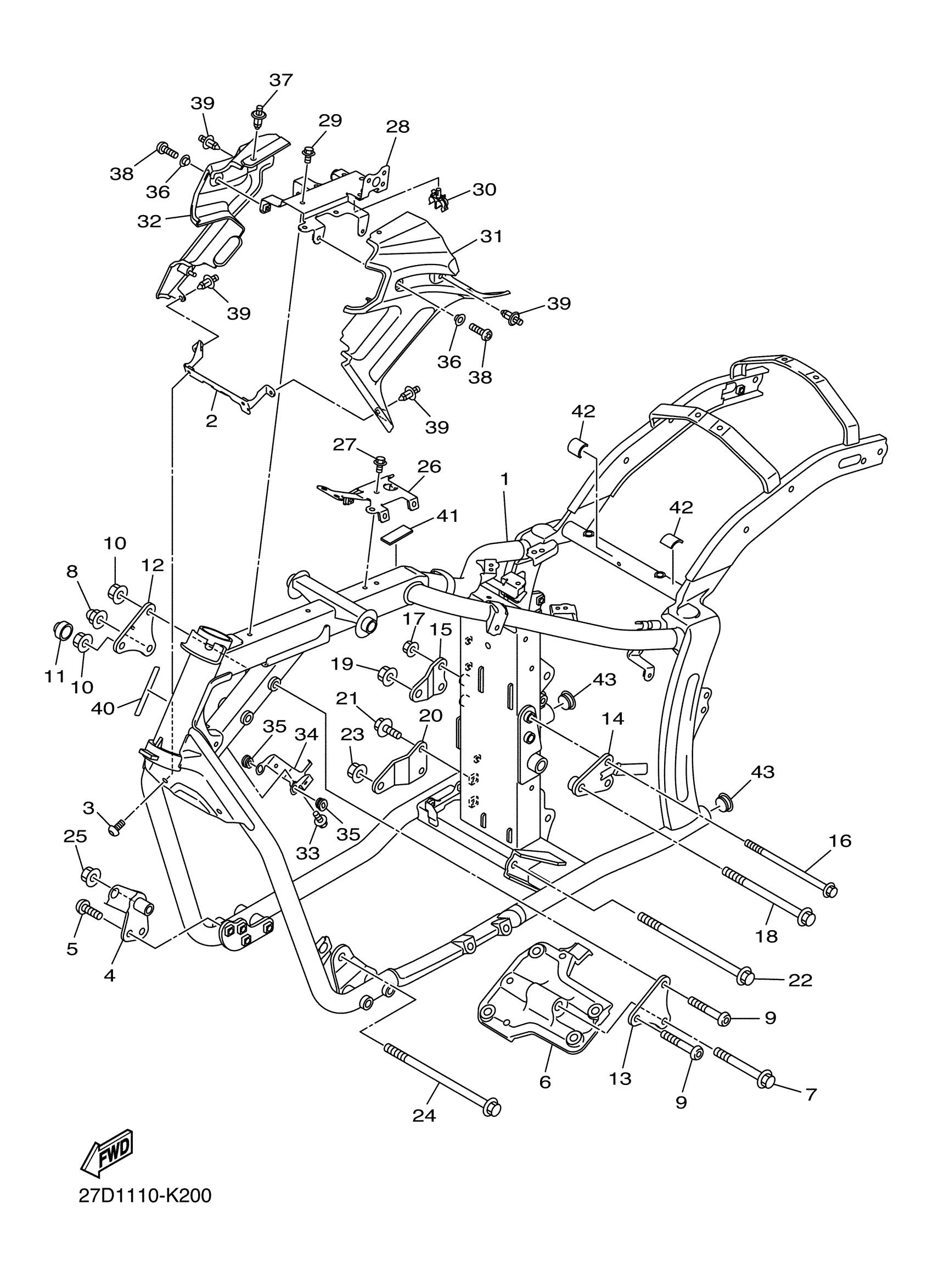

Find the part on the Frame diagram for your 2015 Yamaha Stryker (XVS13CFR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Yamaha Stryker (XVS13CFR) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

27D-21110-00-00

1
Out of stock

2

BRKT., 10

27D-2119M-00-00

—
Out of stock

3

BOLT, BUTTON HEAD

92017-06014-00

1

$2.78

In stock

4

STAY, ENGINE 7

27D-21387-00-00

—
Out of stock

5

BOLT,HEX. SOCKET BUTTON

90111-10047-00

—

$3.86

In stock

6

STAY, ENGINE 3

27D-21317-00-00

—
Out of stock

7

BOLT, FLANGE

90105-12083-00

1
Out of stock

8

NUT, CROWN

90176-12003-00

—
Out of stock

9

BOLT,HEX. SOCKET BUTTON

90111-10052-00

1
Out of stock

10

NUT, SELF-LOCKING

90185-10011-00

1

$3.92

In stock

11

CAP

5YU-2143A-00-00

1

$4.51

In stock

12

BRACKET 11

27D-2114V-00-00

1
Out of stock

13

BRKT.

27D-2116B-00-00

—
Out of stock

14

STAY, ENGINE 5

27D-21318-00-00

—
Out of stock

15

STAY, ENGINE 5

27D-21314-00-00

—
Out of stock

16

BOLT, FLANGE

90105-10391-00

—

$9.98

In stock

17

NUT, S/L FLANGE

95602-10200-00

—

$2.29

In stock

18

BOLT, FLANGE

90105-12080-00

—
Out of stock

19

NUT, SELF-LOCKING

90185-12002-00

—
Out of stock

20

STAY, ENGINE 3

3D8-21316-00-00

—
Out of stock

21

BOLT, FLANGE

95817-10020-00

—

$6.17

In stock

22

BOLT, FLANGE

90105-12044-00

—
Out of stock

23

NUT, SELF-LOCKING

90185-12002-00

—
Out of stock

24

BOLT, FLANGE

90105-12045-00

—
Out of stock

25

NUT, SELF-LOCKING

90185-12002-00

—
Out of stock

26

BRACKET, COIL

27D-21359-00-00

—
Out of stock

27

BOLT, FLANGE

95022-06012-00

—

$3.00

In stock

28

BRACKET, FRONT UPPER 1

27D-21415-00-00

—
Out of stock

29

BOLT, FLANGE

95022-06012-00

—

$3.00

In stock

30

CLAMP

90464-11007-00

—

$3.54

In stock

31

COVER, SIDE 5

27D-2171E-00-00

—
Out of stock

32

COVER, SIDE 6

27D-2171X-00-00

—
Out of stock

33

BOLT, FLANGE(4MY)

95027-06012-00

—

$3.28

In stock

34

STAY, SIDE COVER 2

27D-21322-00-00

—
Out of stock

35

GROMMET

90480-01022-00

—

$2.83

In stock

36

SPACER (25G)

90560-06244-00

—

$6.68

In stock

37

RIVET

90269-07007-00

—

$3.37

In stock

38

SCREW(3XV)

90149-06298-00

—
Out of stock

39

RIVET

90269-05079-00

—

$1.80

In stock

40

PROTECTOR

3D8-2117G-00-00

1

$5.40

In stock

41

DAMPER

5H0-8235Y-M0-00

—

$6.46

In stock

42

PROTECTOR

3MA-27491-00-00

—

$8.03

In stock

43

PLUG

90338-27007-00

—
Out of stock
