2014 Yamaha Stryker (XVS13CER) Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 2014 Yamaha Stryker (XVS13CER), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

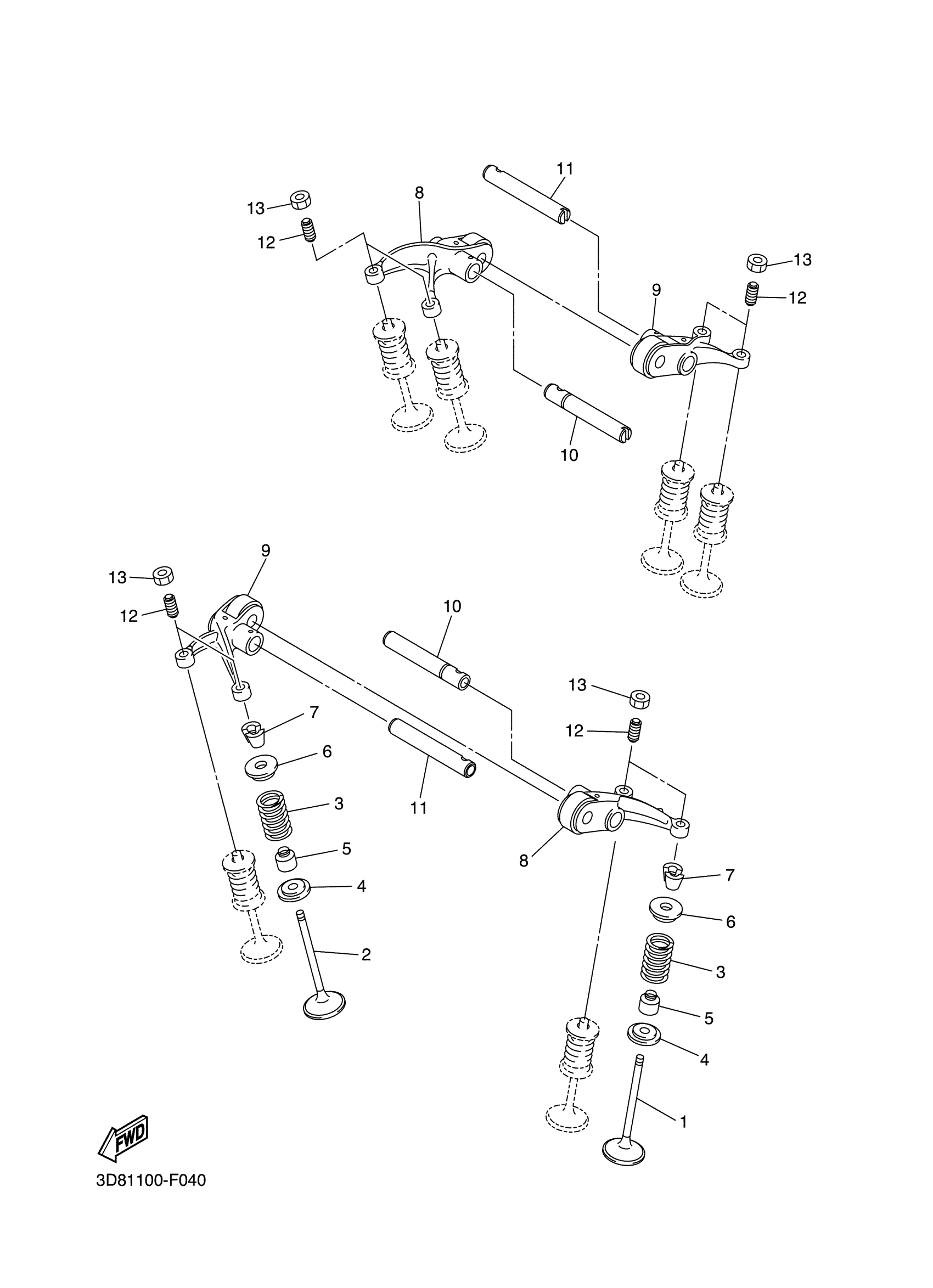

2014 Yamaha Stryker (XVS13CER) Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE, INTAKE

3D8-12111-00-00

—
Out of stock

2

VALVE, EXHAUST

5VK-12121-00-00

1

$73.65

In stock

3

SPRING, VALVE INNER

3D8-12113-00-00

—
Out of stock

4

SEAT, VALVE SPRING

3YF-12116-00-00

1
Out of stock

5

SEAL, VALVE STEM

5H0-12119-00-00

1

$14.72

In stock

6

RETAINER, VALVE SPRING

3YF-12117-01-00

1

$13.06

In stock

7

COTTER, VALVE

4G0-12118-00-00

1

$6.72

In stock

8

ARM, VALVE ROCKER

3D8-12151-00-00

—
Out of stock

9

ARM, VALVE ROCKER 2

3D8-12161-00-00

—
Out of stock

10

SHAFT, ROCKER

3D8-12146-00-00

—
Out of stock

11

SHAFT, ROCKER 2

3D8-12156-00-00

—
Out of stock

12

SCREW, VALVE ADJUSTING

5XT-12159-00-00

1

$8.63

In stock

13

NUT HEXAGON 371121580000

90170-06128-00

1

$6.17

In stock
