2014 Yamaha Stryker (XVS13CER) Front Fork Diagram

← All diagrams

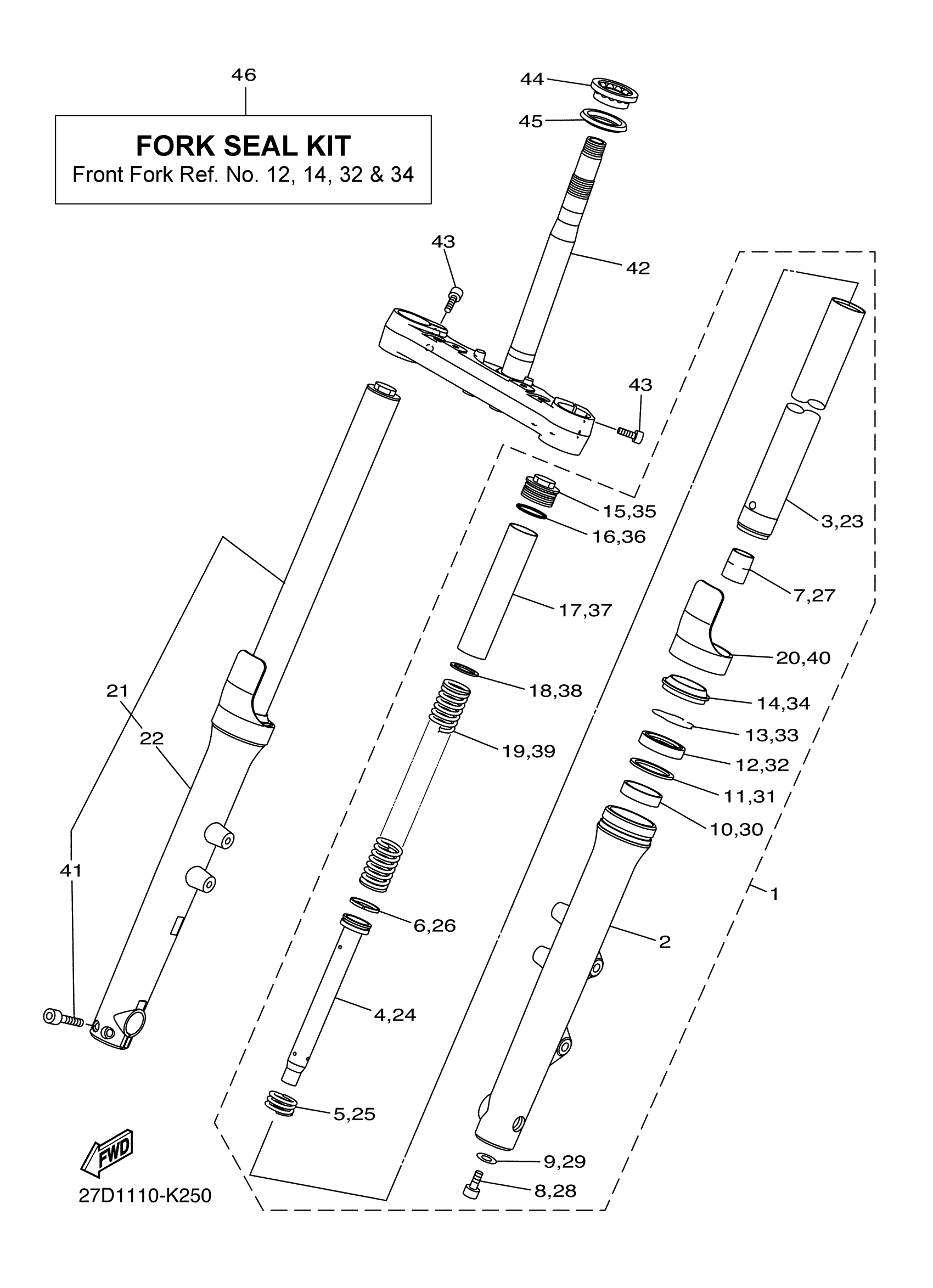

Find the part on the Front Fork diagram for your 2014 Yamaha Stryker (XVS13CER), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Yamaha Stryker (XVS13CER) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

27D-23102-01-00

1
Out of stock

2

TUBE, OUTER (L.H)

27D-23126-01-00

—
Out of stock

3

. INNER TUBE COMP 1

27D-23110-00-00

1
Out of stock

4

PISTON, FRONT FORK

27D-23171-00-00

—
Out of stock

5

. SPRING, REBOUND

3VD-23151-00-00

1
Out of stock

6

RING, PISTON

27D-23157-00-00

1
Out of stock

7

SPINDLE, TAPER

27D-23173-00-00

—
Out of stock

8

BOLT, HEXAGON SOCKET HEAD

90110-10N52-00

1
Out of stock

9

GASKET (5R6)

90430-10171-00

1

$3.17

In stock

10

METAL, SLIDE 1

3VD-23125-10-00

—
Out of stock

11

GUIDE, COVER UPPER

3VD-23115-00-00

1
Out of stock

12

OIL SEAL

5VU-23145-00-00

1
Out of stock

13

CLIP, OIL SEAL

3VD-23156-00-00

1
Out of stock

14

SEAL, DUST

3VD-23144-00-00

1
Out of stock

15

FORK BOLT

27D-2311H-00-00

1
Out of stock

16

O-RING(3VD)

93210-35N02-00

—
Out of stock

17

. SPACER

27D-23118-00-00

1
Out of stock

18

—

$7.18

In stock

19

SPRING, FRONT FORK

27D-23141-00-00

—
Out of stock

20

COVER

4TX-2331G-00-00

—
Out of stock

21

FRONT FORK ASSY (R.H)

27D-23103-01-00

1
Out of stock

22

TUBE, OUTER (R.H)

27D-23136-01-00

—
Out of stock

23

. INNER TUBE COMP 1

27D-23110-00-00

1
Out of stock

24

PISTON, FRONT FORK

27D-23171-00-00

—
Out of stock

25

. SPRING, REBOUND

3VD-23151-00-00

1
Out of stock

26

RING, PISTON

27D-23157-00-00

1
Out of stock

27

SPINDLE, TAPER

27D-23173-00-00

—
Out of stock

28

BOLT, HEXAGON SOCKET HEAD

90110-10N52-00

1
Out of stock

29

GASKET (5R6)

90430-10171-00

1

$3.17

In stock

30

METAL, SLIDE 1

3VD-23125-10-00

—
Out of stock

31

GUIDE, COVER UPPER

3VD-23115-00-00

1
Out of stock

32

OIL SEAL

5VU-23145-00-00

1
Out of stock

33

CLIP, OIL SEAL

3VD-23156-00-00

1
Out of stock

34

SEAL, DUST

3VD-23144-00-00

1
Out of stock

35

FORK BOLT

27D-2311H-00-00

1
Out of stock

36

O-RING(3VD)

93210-35N02-00

—
Out of stock

37

. SPACER

27D-23118-00-00

1
Out of stock

38

—

$7.18

In stock

39

SPRING, FRONT FORK

27D-23141-00-00

—
Out of stock

40

COVER

4TX-2331G-00-00

—
Out of stock

41

BOLT, SOCKET

91314-08035-00

—
Out of stock

42

UNDER BRACKET COMP.

27D-23340-00-00

—
Out of stock

43

BOLT,SOCKET

91314-10025-00

—

$6.78

In stock

44

BEARING(3FV)

93399-99932-00

—

$55.01

In stock

45

SEAL, STEERING

3FV-23462-00-00

—

$21.37

In stock

46

FORK SEAL KIT (TWO FORKS)

5VU-W003B-00-00

—
Out of stock
