2014 Yamaha Stryker (XVS13CER) Flasher Light Diagram

← All diagrams

Find the part on the Flasher Light diagram for your 2014 Yamaha Stryker (XVS13CER), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

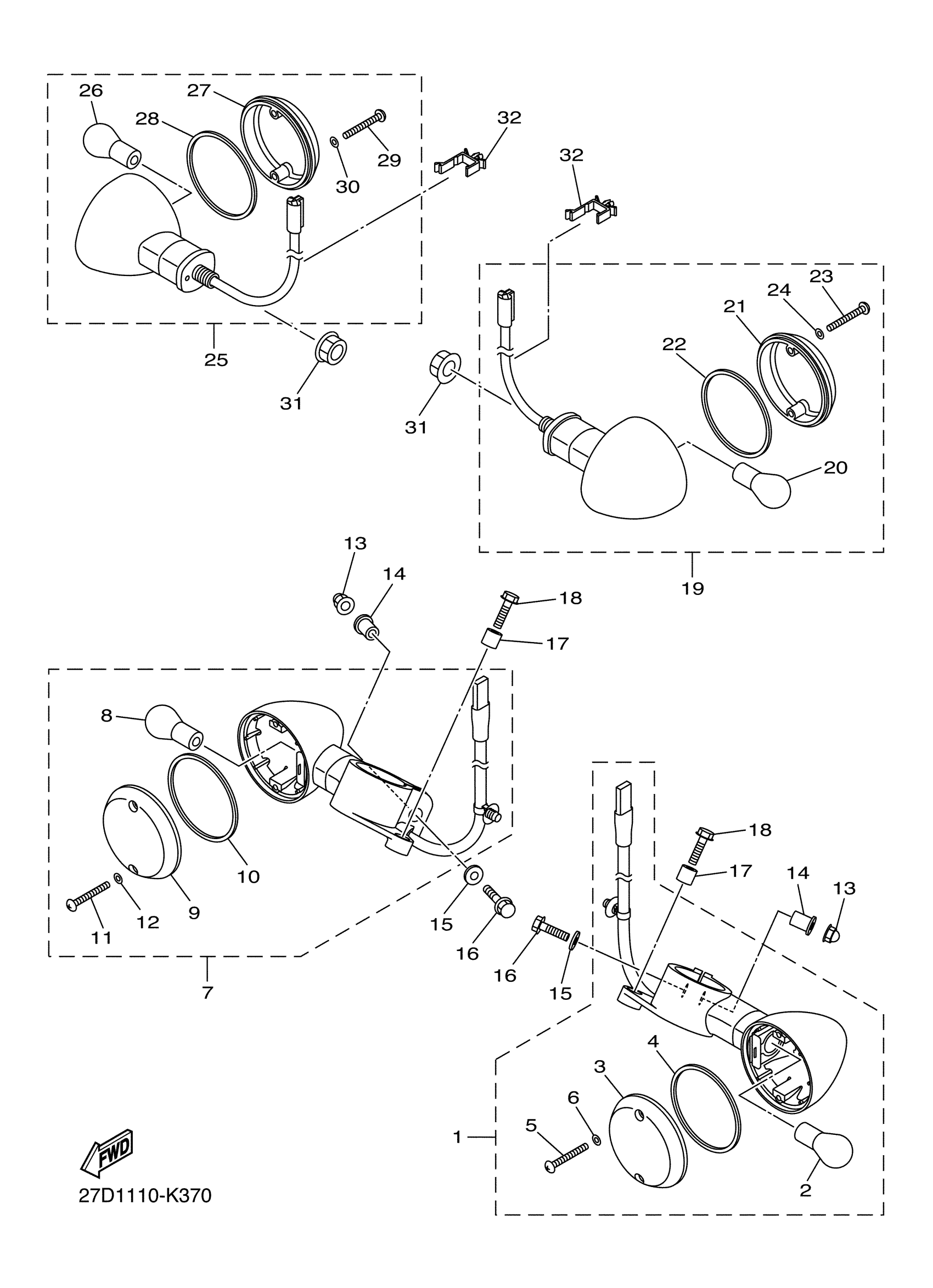

2014 Yamaha Stryker (XVS13CER) Flasher Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FLASHER LIGHT ASSY 1

27D-83310-00-00

1
Out of stock

2

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

1

$13.06

In stock

3

LENS, FLASHER

5PX-83312-10-00

1

$8.32

In stock

4

GASKET, FLASHER LENS

5PX-83313-00-00

1

$6.38

In stock

5

SCREW, TAPPING

97704-40625-00

1

$6.25

In stock

6

WASHER

5PX-83348-00-00

1

$6.38

In stock

7

FRONT FLASHER LIGHT ASSY 2

27D-83320-00-00

1
Out of stock

8

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

1

$13.06

In stock

9

LENS, FLASHER

5PX-83312-10-00

1

$8.32

In stock

10

GASKET, FLASHER LENS

5PX-83313-00-00

1

$6.38

In stock

11

SCREW, TAPPING

97704-40625-00

1

$6.25

In stock

12

WASHER

5PX-83348-00-00

1

$6.38

In stock

13

NUT, CROWN(1FN)

90176-06055-00

1

$3.89

In stock

14

COLLAR

90387-06076-00

1

$5.60

In stock

15

WASHER, PLATE

90201-06045-00

1

$6.18

In stock

16

BOLT, FLANGE

95822-06025-00

—

$1.46

In stock

17

COLLAR

90387-08085-00

—

$5.74

In stock

18

BOLT, SMALL FLANGE

95027-08020-00

—
Out of stock

19

REAR FLASHER LIGHT ASSY 1

5C7-83330-00-00

—
Out of stock

20

BULB, FLASHER (12V-21W)

5VN-83331-00-00

—

$12.28

In stock

21

LENS, FLASHER

5PX-83312-10-00

1

$8.32

In stock

22

GASKET, FLASHER LENS

5PX-83313-00-00

1

$6.38

In stock

23

SCREW, TAPPING

97704-40625-00

1

$6.25

In stock

24

WASHER

5PX-83348-00-00

1

$6.38

In stock

25

REAR FLASHER LIGHT ASSY 2

5C7-83340-00-00

—
Out of stock

26

BULB, FLASHER (12V-21W)

5VN-83331-00-00

—

$12.28

In stock

27

LENS, FLASHER 2

5PX-83342-10-00

—

$18.09

In stock

28

GASKET, FLASHER LENS

5PX-83313-00-00

1

$6.38

In stock

29

SCREW, TAPPING

97704-40625-00

1

$6.25

In stock

30

WASHER

5PX-83348-00-00

1

$6.38

In stock

31

95702-12500

95702-12500-00

—

$3.03

In stock

32

CLAMP (1J7)

90464-16021-00

—

$10.86

In stock
