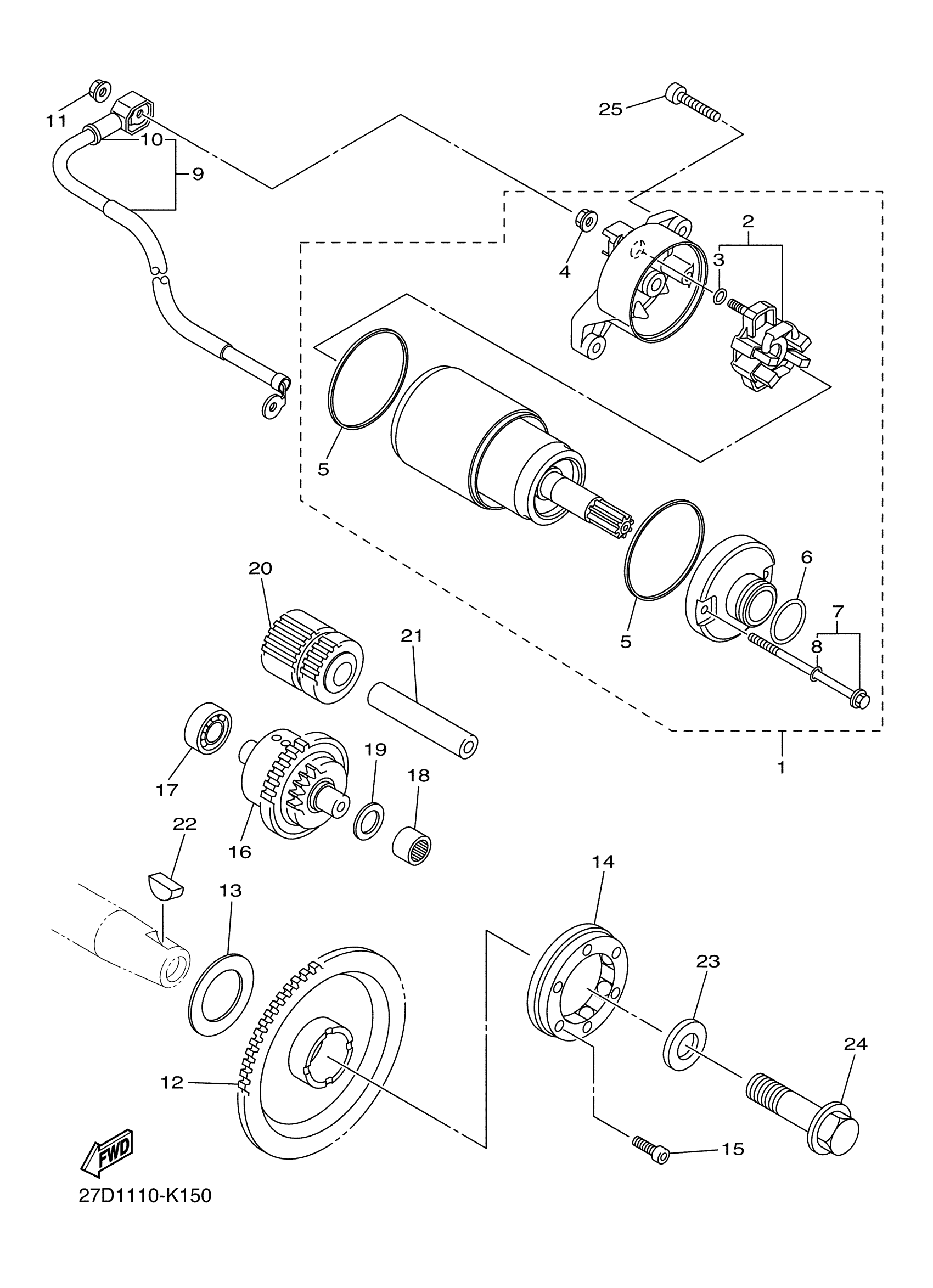

Find the part on the Starter diagram for your 2013 Yamaha Stryker (XVS13CDR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Yamaha Stryker (XVS13CDR) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY

5S7-81890-10-00

1
Out of stock

2

BRUSH HOLDER ASSY

4B5-81840-00-00

1

$95.57

In stock

3

.. O-RING

3TB-81847-00-00

1

$2.31

In stock

4

NUT

4XV-8182A-00-00

1

$6.28

In stock

5

GASKET

35C-81844-00-00

—

$43.01

In stock

6

O-RING (437)

93210-24235-00

1

$5.72

In stock

7

BOLT

28P-81826-00-00

—

$13.35

In stock

8

.. O-RING

3TB-81847-00-00

1

$2.31

In stock

9

CORD, STARTER MOTOR

3D8-81815-10-00

—
Out of stock

10

CAP

4B5-81871-00-00

—

$9.46

In stock

11

NUT

4XV-8182A-00-00

1

$6.28

In stock

12

GEAR 3

3D8-15515-10-00

—
Out of stock

13

WASHER, PLATE(1VJ)

90201-303P4-00

—
Out of stock

14

STARTER ONE-WAY ASSY

4NK-15590-00-00

—

$278.48

In stock

15

BOLT, SOCKET

91317-08025-00

1

$6.25

In stock

16

DAMPER ASSY

3D8-15560-10-00

—
Out of stock

17

BRG,R-B 6000 26MM 19G KY

93306-00004-00

—

$31.81

In stock

18

BEARING

93317-11096-00

—
Out of stock

19

WASHER PLATE (3L6)

90201-08759-00

—

$2.52

In stock

20

GEAR, IDLER 1

3D8-15512-01-00

—

$68.98

In stock

21

SHAFT 2

4WM-15522-00-00

—

$11.69

In stock

22

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

23

WASHER, PLATE

90201-12008-00

—

$11.15

In stock

24

BOLT, WASHER BASED(3LD)

90105-12584-00

—

$17.25

In stock

25

BOLT, SOCKET

91314-06030-00

—
Out of stock
