2013 Yamaha Stryker (XVS13CDR) Side Cover Diagram

← All diagrams

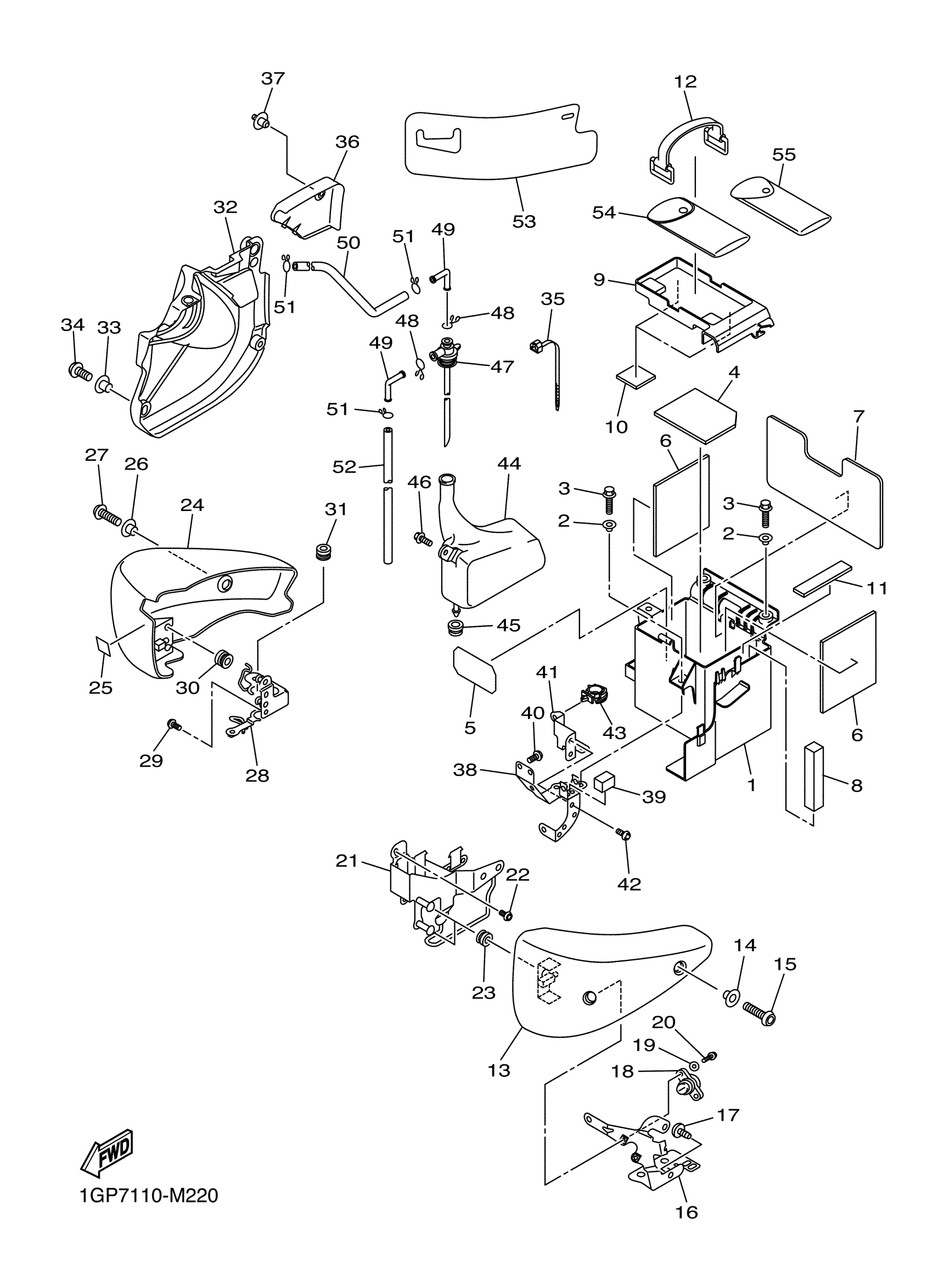

Find the part on the Side Cover diagram for your 2013 Yamaha Stryker (XVS13CDR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Yamaha Stryker (XVS13CDR) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOX, BATTERY

3D8-2177G-02-00

1
Out of stock

2

COLLAR

90387-06267-00

—
Out of stock

3

BOLT, FLANGE

95022-06020-00

1
Out of stock

4

SEAT, BATTERY

51Y-82122-00-00

1
Out of stock

5

PROTECTOR

5PX-21652-00-00

—
Out of stock

6

DAMPER

3D8-2174Y-00-00

1
Out of stock

7

DAMPER

3D8-2174X-00-00

1
Out of stock

8

DAMPER, LOCATING 2

3D8-21779-00-00

—
Out of stock

9

BOX, TOOL

3D8-28173-10-00

1
Out of stock

10

DAMPER

2GH-24185-00-00

1
Out of stock

11

DAMPER (L.H)

1AE-2834E-00-00

1
Out of stock

12

BAND, BATTERY

22F-82131-00-00

1
Out of stock

13

COVER, SIDE 1

3D8-21711-00-P0

—
Out of stock

14

COLLAR

90387-06173-00

1
Out of stock

15

SCREW

90149-06023-00

1
Out of stock

16

BRACKET 1

3D8-2175T-00-00

—
Out of stock

17

SCREW, TRUSS TAP.

97707-50012-00

—
Out of stock

18

ROTOR SET

5PX-W2470-00-00

—
Out of stock

19

WASHER, PLATE

90201-06034-00

—
Out of stock

20

BOLT, FLANGE(2UJ)

95024-06016-00

—
Out of stock

21

BRACKET 3

3D8-2172M-10-00

—
Out of stock

22

BOLT, BUTTON HEAD

92012-06012-00

—
Out of stock

23

GROMMET(3VD)

90480-12550-00

—
Out of stock

24

COVER, SIDE 2

3D8-21721-00-P0

—
Out of stock

25

PROTECTOR

3MA-27491-00-00

—
Out of stock

26

COLLAR

90387-06173-00

1
Out of stock

27

BOLT

90111-06038-00

—
Out of stock

28

BRACKET 4

27D-2172N-00-00

—
Out of stock

29

BOLT, BUTTON HEAD

92012-06012-00

—
Out of stock

30

GROMMET(3VD)

90480-12550-00

—
Out of stock

31

GROMMET(3AK)

90480-18495-00

—
Out of stock

32

COVER, SIDE 4

3D8-21741-10-00

—
Out of stock

33

COLLAR

90387-06184-00

—
Out of stock

34

BOLT

90111-06038-00

—
Out of stock

35

CLAMP(4FM)

90464-15195-00

—
Out of stock

36

PLATE

3D8-2176E-10-00

—
Out of stock

37

RIVET(4PH)

90269-07077-00

—
Out of stock

38

BRACKET 1

3D8-2172K-01-00

—
Out of stock

39

DAMPER, LOCATING 1

3D8-21778-00-00

—
Out of stock

40

BOLT, BUTTON HEAD

92012-06012-00

—
Out of stock

41

BRACKET 2

3D8-2172L-00-00

—
Out of stock

42

BOLT, BUTTON HEAD

92012-06012-00

—
Out of stock

43

CLAMP

90464-17008-00

—
Out of stock

44

TANK, RECOVERY

3D8-21871-00-00

—
Out of stock

45

GROMMET(4FU)

90480-13567-00

—
Out of stock

46

BOLT, WITH WASHER

90119-06137-00

—
Out of stock

47

CAP

3D8-21875-00-00

—
Out of stock

48

CLIP(72X)

90467-11M08-00

1
Out of stock

49

ELBOW

26H-21828-00-00

—
Out of stock

50

PIPE, BREATHER

27D-21826-00-00

—
Out of stock

51

CLIP 101235600

90467-08003-00

—
Out of stock

52

HOSE (L420)

90445-092K1-00

—
Out of stock

53

COVER

27D-24796-00-00

—
Out of stock

54

TOOL KIT

27D-28100-00-00

—
Out of stock

55

TOOL KIT 2

3D8-28110-01-00

—
Out of stock
