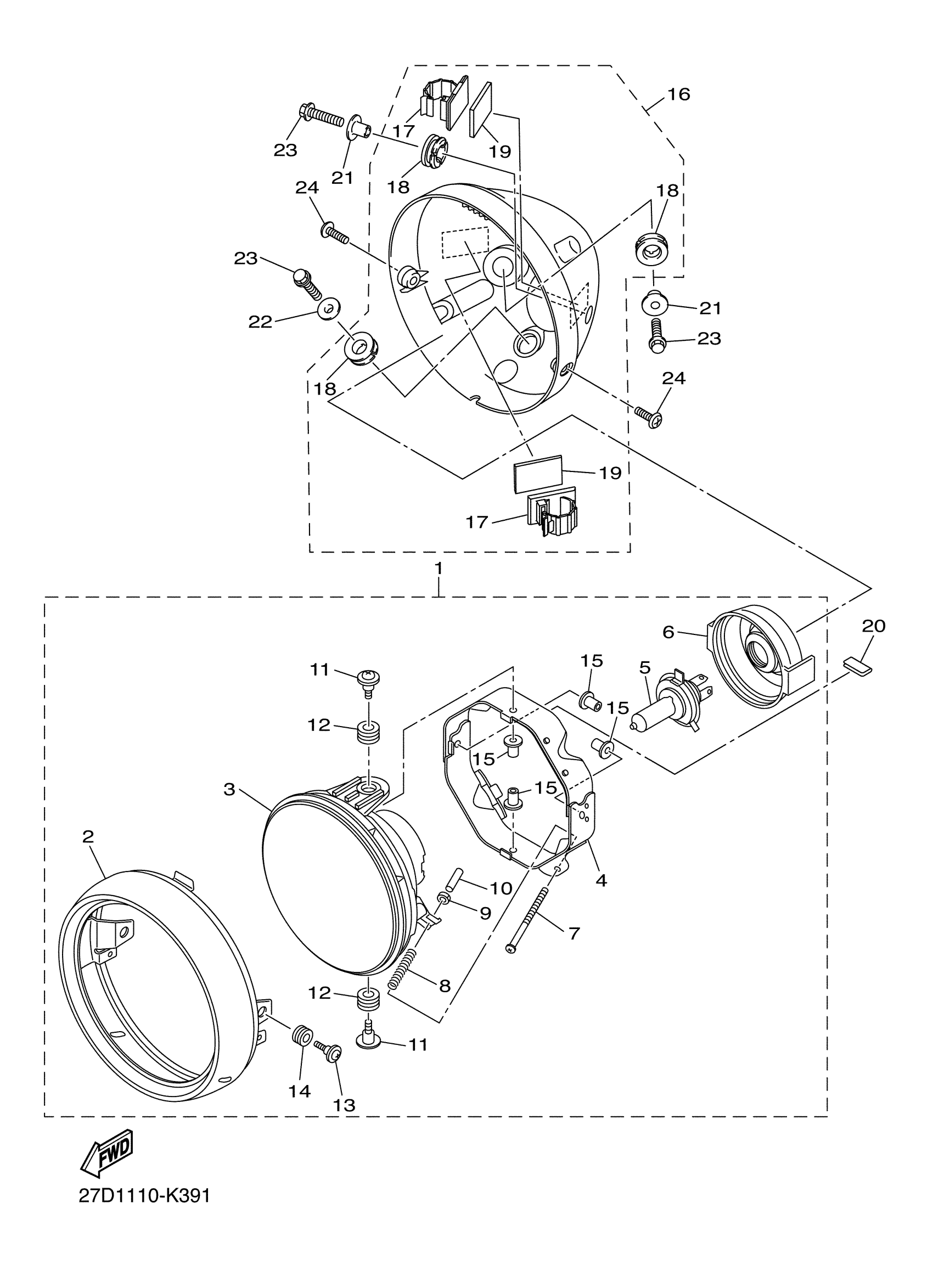

Yamaha XVS13CBR (STRYKER) 27D4 2012 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSY

5S7-84310-00-00

$444.18

2

RIM, HEADLIGHT

5S7-84315-00-00

$79.03

3

LENS ASSY

5PX-84320-00-00

$176.07

4

STAY, HEADLIGHT 1

5PX-84318-00-00

$58.85

5

BULB, HEADLIGHT

8V0-84314-10-00

$70.00

6

COVER, SOCKET

5PX-84397-00-00

$32.54

7

SCREW, RIM ADJUSTING

5PX-84331-00-00

$6.10

8

SPRING, SCREW

5PX-84332-00-00

$6.10

9

NUT, ADJUSTING

5PX-84334-00-00

$6.10

10

CAP,1

5PX-84385-00-00

$6.10

11

SCREW, RIM FITTING

5PX-84325-00-00

$6.15

12

GROMMET

5PX-84354-00-00

$4.69

13

SCREW, RIM FITTING

5PX-84125-00-00

$5.99

14

GROMMET

5PX-84352-00-00

$5.69

15

NUT

5PX-84317-00-00

$9.75

16

BODY ASSY

27D-84330-00-00

Unavailable

17

CLAMP

90464-17002-00

Unavailable

18

DAMPER, HEADLIGHT 1

4WM-84366-00-00

Unavailable

19

SEAL 1

5S7-28428-00-00

Unavailable

20

PROTECTOR

3MA-27491-00-00

Unavailable

21

COLLAR(36Y)

90387-067K8-00

Unavailable

22

COLLAR

90387-06170-00

Unavailable

23

BOLT, FLANGE

95022-06025-00

Unavailable

24

SCREW, BIND(4DN)

98980-05014-00

Unavailable
