2012 Yamaha Stryker (XVS13CBO) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2012 Yamaha Stryker (XVS13CBO), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

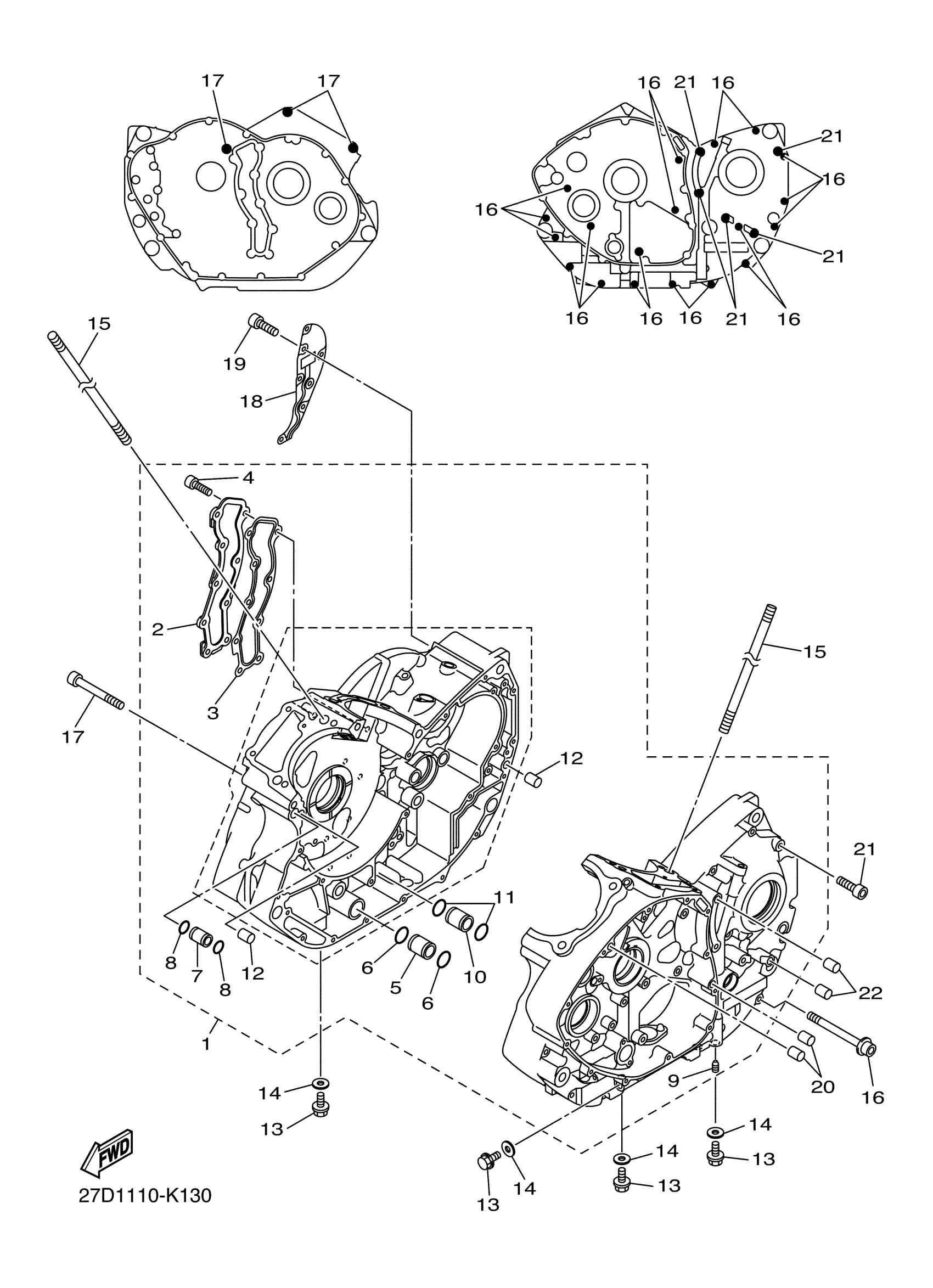

2012 Yamaha Stryker (XVS13CBO) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

3D8-15100-28-00

—
Out of stock

2

COVER, CRANKCASE 3

3D8-15431-00-00

—
Out of stock

3

GASKET, CRANKCASE COVER 3

3D8-15462-00-00

—
Out of stock

4

BOLT,SOCKET HEAD

91314-06020-00

1

$2.05

In stock

5

NOZZLE ASSY., 2

3D8-15154-00-00

1

$18.45

In stock

6

O-RING (1J7)

93210-18319-00

1

$6.85

In stock

7

NOZZLE 1

1D7-15138-00-00

1
Out of stock

8

O-RING

93210-10001-00

1

$1.25

In stock

9

NOZZLE 1

2H7-15138-00-00

—

$4.11

In stock

10

NOZZLE 3

3D8-15155-00-00

1
Out of stock

11

O-RING

93210-22298-00

1

$6.57

In stock

12

PIN, DOWEL(2VG)

99530-10116-00

1

$3.37

In stock

13

BOLT, FLANGE

95022-10016-00

1

$6.28

In stock

14

GASKET (5R6)

90430-10171-00

1

$3.17

In stock

15

BOLT, STUD

90116-12011-00

—

$13.80

In stock

16

BOLT, FLANGE

90105-06144-00

—

$2.09

In stock

17

BOLT

91314-10110-00

—
Out of stock

18

SEPERATOR, OIL

3D8-15368-00-00

—

$41.48

In stock

19

BOLT,SOCKET

91317-06016-00

—

$1.16

In stock

20

PIN, DOWEL

99530-08012-00

1

$6.62

In stock

21

BOLT, SOCKET

91317-08035-00

—
Out of stock

22

PIN, DOWEL

99590-10114-00

1

$4.74

In stock
