2012 Yamaha Stryker CA (XVS13CBCB) Fender Diagram

← All diagrams

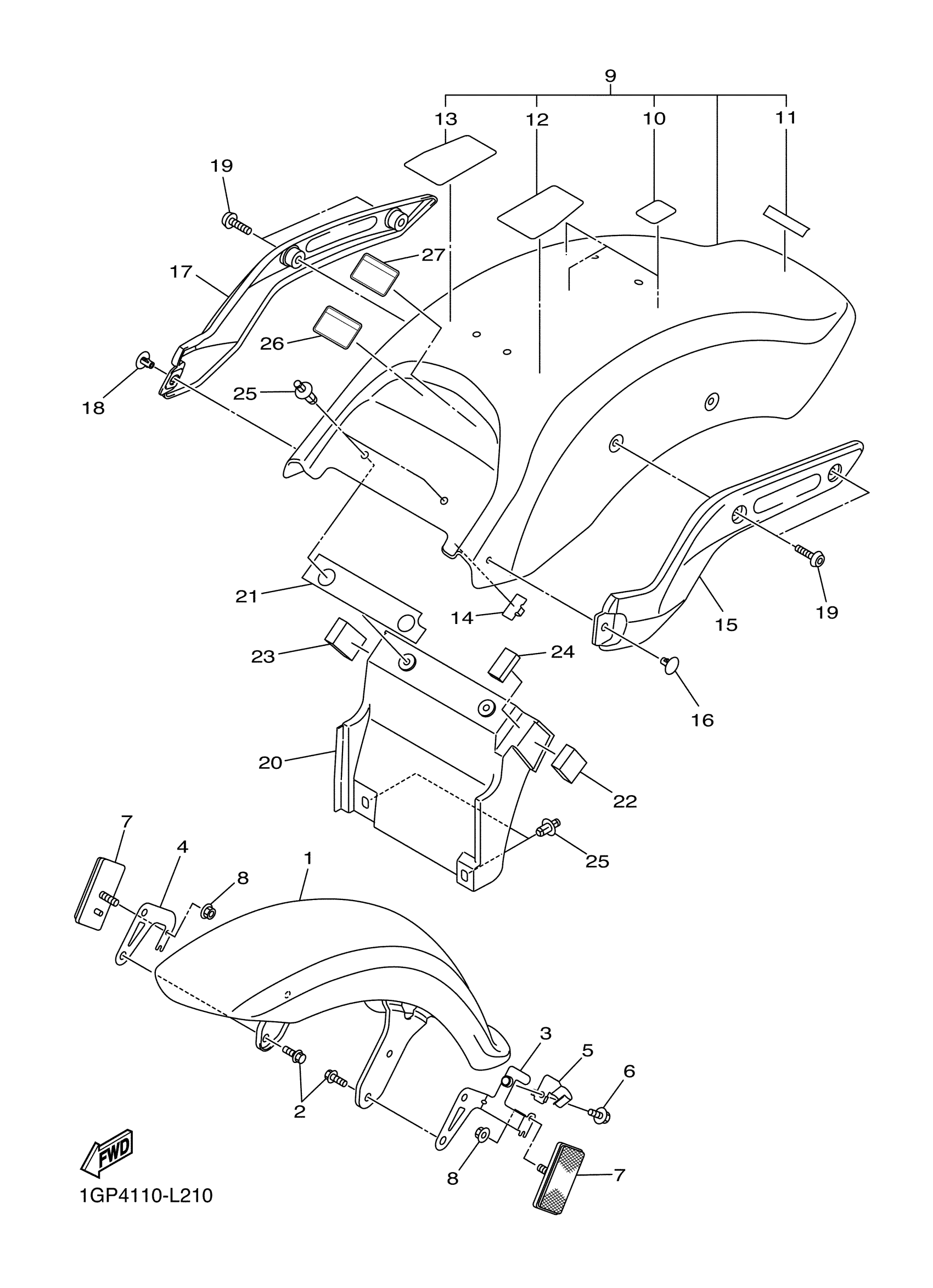

Find the part on the Fender diagram for your 2012 Yamaha Stryker CA (XVS13CBCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha Stryker CA (XVS13CBCB) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FENDER COMP.

27D-21510-01-P0

—
Out of stock

2

BOLT, FLANGE(JN5)

95817-08016-00

1
Out of stock

3

STAY 1

27D-21587-00-00

—
Out of stock

4

STAY 2

27D-21588-00-00

—
Out of stock

5

HOLDER, BRAKE HOSE

27D-25887-00-00

—
Out of stock

6

BOLT, FLANGE(4MY)

95027-06010-00

1
Out of stock

7

FRONT REFLECTOR ASSY

11H-85110-01-00

1
Out of stock

8

NUT, FLANGE(3GM)

95707-05500-00

1
Out of stock

9

REAR FENDER COMP.

27D-W2161-80-P0

1
Out of stock

10

SEAL

5PX-21669-01-00

1
Out of stock

11

EMBLEM, YAMAHA

3WF-2153E-71-00

1
Out of stock

12

SEAL, 2

27D-216A2-00-00

—
Out of stock

13

SEAL, 3

27D-216A3-00-00

—
Out of stock

14

CLAMP

90465-04020-00

—
Out of stock

15

STAY 1

27D-2164F-00-00

—
Out of stock

16

RIVET(4KM)

90269-05074-00

—
Out of stock

17

STAY 2

27D-2164G-00-00

—
Out of stock

18

RIVET(4KM)

90269-05074-00

—
Out of stock

19

BOLT

90111-08033-00

—
Out of stock

20

GUARD, MUD

27D-21629-00-00

—
Out of stock

21

DAMPER 1

3D8-21638-00-00

—
Out of stock

22

DAMPER, PLATE

90520-13001-00

—
Out of stock

23

DAMPER, PLATE

90520-13002-00

—
Out of stock

24

MOLE

7CF-22869-00-00

—
Out of stock

25

RIVET(4PH)

90269-07077-00

—
Out of stock
