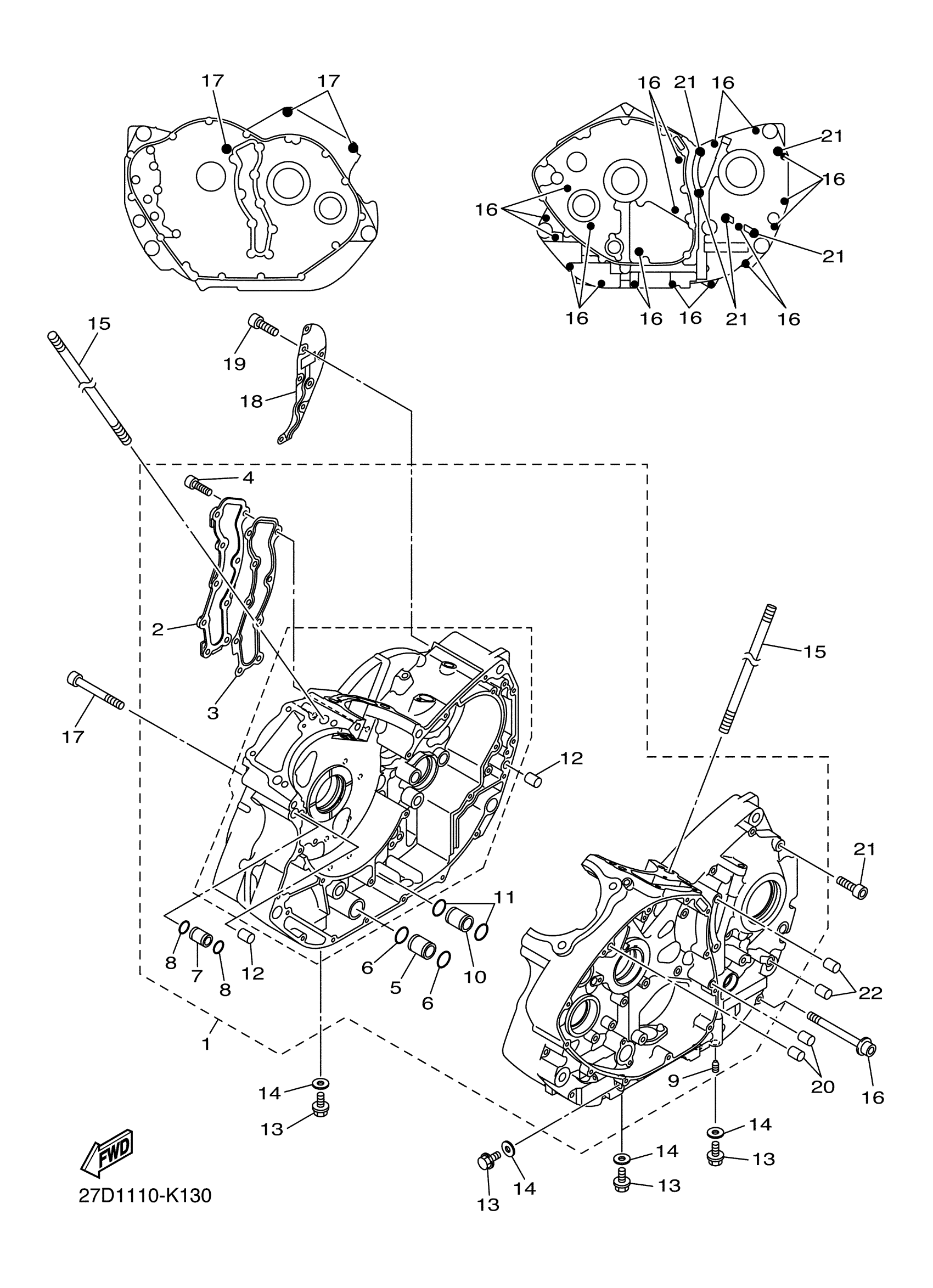

Yamaha XVS13CACB (STRYKER CA) 1GP2 2011 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

3D8-15100-29-00

Unavailable

2

COVER, CRANKCASE 3

3D8-15431-00-00

Unavailable

3

GASKET, CRANKCASE COVER 3

3D8-15462-00-00

Unavailable

4

BOLT,SOCKET HEAD

91314-06020-00

$1.91

5

NOZZLE ASSY., 2

3D8-15154-00-00

$18.17

6

O-RING (1J7)

93210-18319-00

$6.39

7

NOZZLE 1

1D7-15138-00-00

$5.62

8

O-RING

93210-10001-00

$1.23

9

NOZZLE 1

2H7-15138-00-00

Unavailable

10

NOZZLE 3

3D8-15155-00-00

$20.29

11

O-RING

93210-22298-00

$6.12

12

PIN, DOWEL(2VG)

99530-10116-00

$3.14

13

BOLT, FLANGE

95022-10016-00

$5.86

14

GASKET (5R6)

90430-10171-00

$2.52

15

BOLT, STUD

90116-12011-00

Unavailable

16

BOLT, FLANGE

90105-06144-00

Unavailable

17

BOLT

91314-10110-00

Unavailable

18

SEPERATOR, OIL

3D8-15368-00-00

Unavailable

19

BOLT,SOCKET

91317-06016-00

Unavailable

20

PIN, DOWEL

99530-08012-00

$4.89

21

BOLT, SOCKET

91317-08035-00

Unavailable

22

PIN, DOWEL

99590-10114-00

$4.11
