1981 Yamaha XV920RH (XV920RH) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 1981 Yamaha XV920RH (XV920RH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

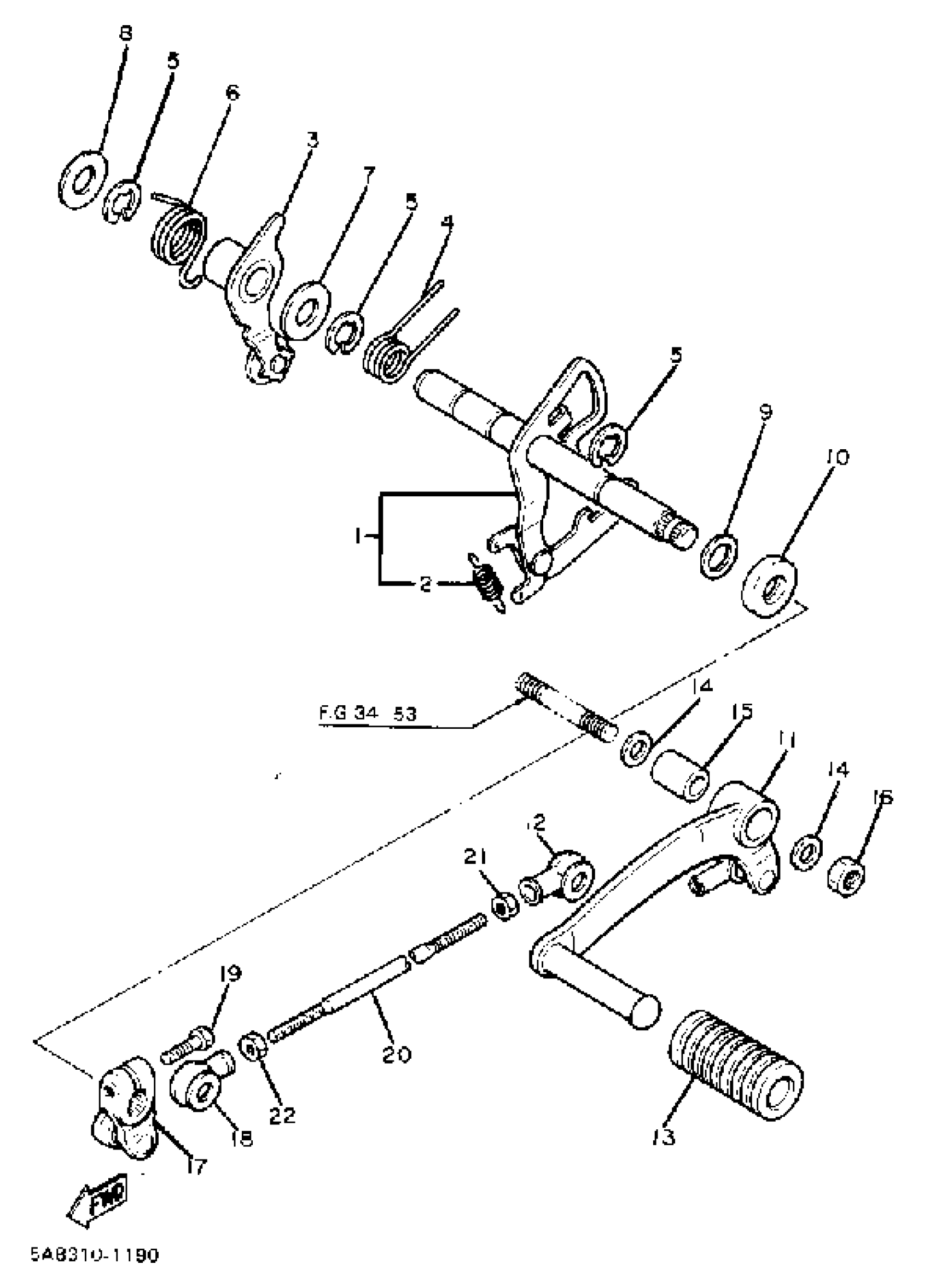

1981 Yamaha XV920RH (XV920RH) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT LEVER ASSEMBLY

4X7-18120-01-00

1
Out of stock

2

SPRING, TENSION (4H7)

90506-08227-00

1

$2.85

In stock

3

STOPPER LEVER ASSY

5EL-18140-00-00

—

$42.09

In stock

4

COLLAR

90387-12033-00

1

$6.51

In stock

4

SPRING, TORSION (4H7)

90508-32535-00

1

$8.43

In stock

4

SPRING W/ COLLAR

99999-01179-00

1
Out of stock

5

CIRCLIP

99006-10600-00

1

$6.91

In stock

6

SPRING, TORSION (4X7)

90508-29531-00

1
Out of stock

7

WASHER

90201-12588-00

1

$6.37

In stock

8

WASHER

90201-12588-00

1

$6.37

In stock

9

WASHER PLATE 164185720000

90201-12166-00

1

$6.29

In stock

10

OIL SEAL (12X22X5-371)

93102-12106-00

1
Out of stock

11

PEDAL, SHIFT

5A8-18111-00-00

1
Out of stock

12

COVER, DUST

2H9-18154-00-00

1
Out of stock

13

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

14

—

$3.00

In stock

15

COLLAR

90387-102E9-00

1
Out of stock

16

NUT (3WP1)

95317-10700-00

—

$6.17

In stock

17

ARM SHIFT

3SX-18112-00-00

1
Out of stock

18

COVER, DUST

2H9-18154-00-00

1
Out of stock

19

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

20

ROD, SHIFT

5A8-18115-00-00

—

$27.02

In stock

21

NUT (2H9)

90170-06228-00

—

$5.20

In stock

22

UNAVAILABLE IN PRICE BOOK

95303-56700-00

1
Out of stock
