1981 Yamaha XV920RH (XV920RH) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1981 Yamaha XV920RH (XV920RH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

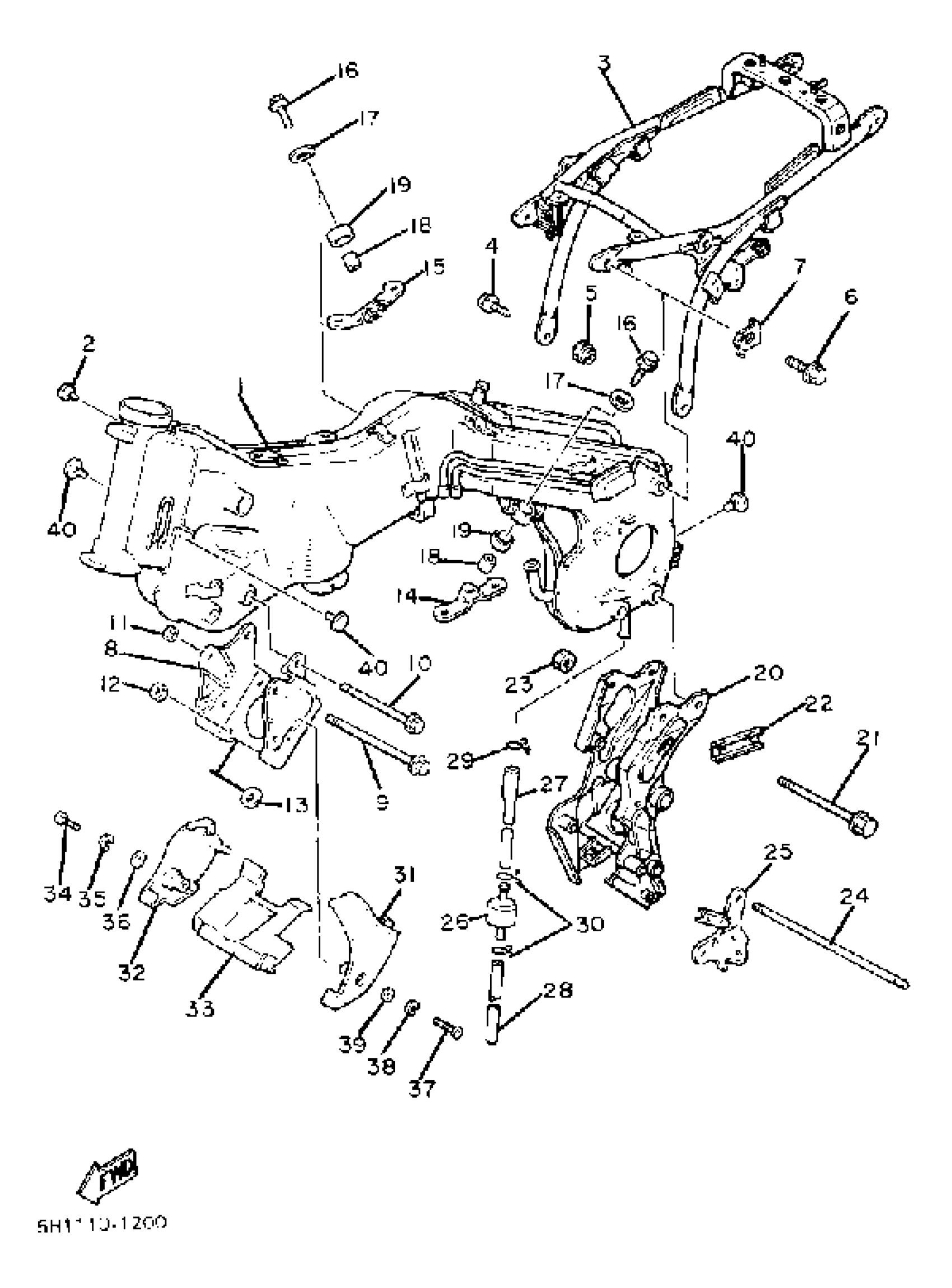

1981 Yamaha XV920RH (XV920RH) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(4X7-21110-00-33)

1
Out of stock

2

PLUG, SPEC''L SHAPE

(90338-03116-00)

1
Out of stock

3

FRAME, REAR

5A8-21190-01-33

1
Out of stock

4

BOLT, FLANGE

95817-10035-00

1

$6.85

In stock

5

1

$6.02

In stock

6

BOLT (583)

90101-10303-00

1

$6.25

In stock

7

WASHER, LOCK

90215-10192-00

1
Out of stock

8

STAY, ENGINE 4

4X7-21317-00-00

1
Out of stock

9

BOLT, WASHER BASED (5E3)

90105-10183-00

1

$10.25

In stock

10

BOLT, WASHER BASED (2H7)

90105-10105-00

1
Out of stock

11

NUT(4KG)

90179-10658-00

1

$7.49

In stock

12

NUT(3EF)

90179-12657-00

1

$5.32

In stock

13

WASHER, PLATE (5E3)

90201-125A3-00

1
Out of stock

14

STAY, ENGINE 2

(4X7-21315-00-00)

1
Out of stock

15

STAY, ENGINE 3

(4X7-21316-00-00)

1
Out of stock

16

BOLT (4W3)

90105-10186-00

1
Out of stock

17

WASHER, PLATE(42X)

90201-105H3-00

—

$5.68

In stock

18

COLLAR (5E3)

90387-100E2-00

—
Out of stock

19

DAMPER, RUBBER 1

4X7-21485-00-00

1
Out of stock

20

BRACKET, REAR ARM

(5A8-21430-00-00)

1
Out of stock

21

BOLT

90101-10074-00

1
Out of stock

22

WASHER, LOCK

(4X7-21491-00-00)

1
Out of stock

23

NUT(4KG)

90179-10658-00

1

$7.49

In stock

24

BOLT, STUD

90116-10352-00

1
Out of stock

25

BRACKET, SIDE STAND

(4X7-21458-01-00)

1
Out of stock

26

FILTER ASSY

4X7-2149Y-00-00

—

$17.23

In stock

27

HOSE

(90445-11545-00)

1
Out of stock

28

HOSE (L198)

90445-11293-00

—

$6.97

In stock

29

CLIP(6M6)

90467-13M13-00

1

$6.92

In stock

30

CLIP(1JH)

90467-11106-00

—
Out of stock

31

SCOOP, AIR 1

5A8-2137W-00-98

1
Out of stock

32

NO LONGER AVAILABLE

5A8-2137X-00-98

1
Out of stock

33

NO LONGER AVAILABLE

5A8-2137Y-00-98

1
Out of stock

34

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

35

WASHER, SPRING

92907-06100-00

—
Out of stock

36

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

37

SCREW, PAN

98507-06050-00

—
Out of stock

38

WASHER, SPRING

92907-06100-00

—
Out of stock

39

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

40

PLUG 288833190000

90338-07043-00

—

$5.35

In stock
