1981 Yamaha XV920RH (XV920RH) Crankcase Diagram

← All diagrams

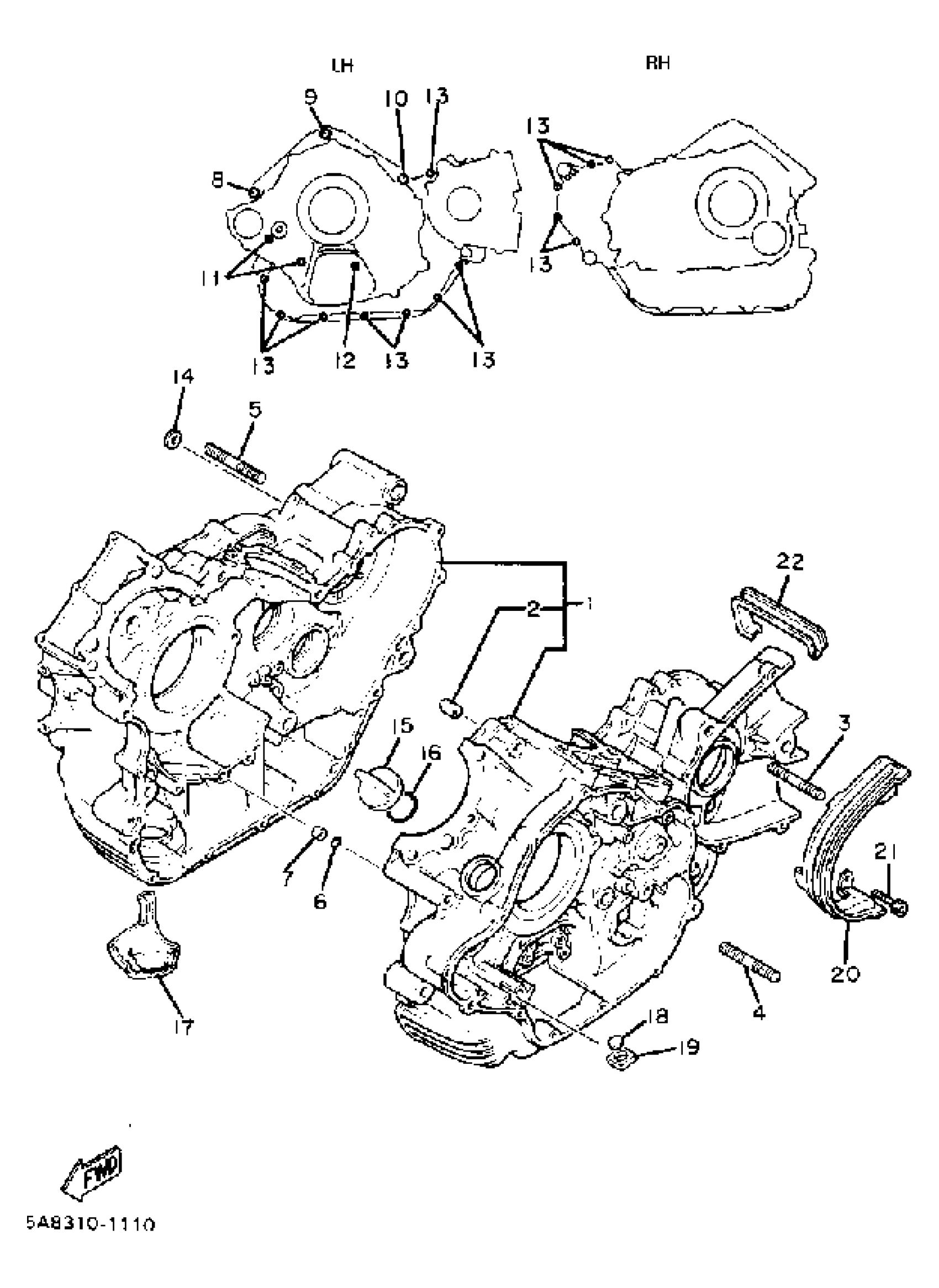

Find the part on the Crankcase diagram for your 1981 Yamaha XV920RH (XV920RH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XV920RH (XV920RH) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

(5H1-15100-01-00)

1
Out of stock

2

PIN, DOWEL

99530-14016-00

1

$3.20

In stock

3

BOLT, STUD

(95611-10650-00)

1
Out of stock

4

BOLT, STUD

95617-10630-00

1
Out of stock

5

BOLT, STUD

(95611-10635-00)

1
Out of stock

6

O-RING

93210-07438-00

1

$6.17

In stock

7

COLLAR

90387-06704-00

1
Out of stock

8

BOLT, SOCKET

91317-10100-00

1

$7.58

In stock

9

BOLT,SOCKET

91317-10070-00

—

$6.43

In stock

10

BOLT,SOCKET

91314-10060-00

1
Out of stock

11

BOLT, SOCKET

91314-06080-00

1

$3.40

In stock

12

BOLT,SOCKET

91314-06055-00

1
Out of stock

13

BOLT, SOCKET

91314-06030-00

1
Out of stock

14

GASKET 256113960000

90430-06014-00

—

$7.23

In stock

15

O-RING (371)

93210-29198-00

1

$5.78

In stock

16

O-RING (371)

93210-29198-00

1

$5.78

In stock

17

PROTECTOR

4X7-15491-00-00

—
Out of stock

18

PLUG

4X7-13419-00-00

1
Out of stock

19

GROMMET

90480-20302-00

1
Out of stock

20

PROTECTOR

5A8-15493-01-00

1
Out of stock

21

BOLT,SOCKET

91317-06016-00

—

$1.16

In stock

22

CLAMP

(90465-08171-00)

1
Out of stock
