1982 Yamaha XV920J (XV920J) Frame Diagram

← All diagrams

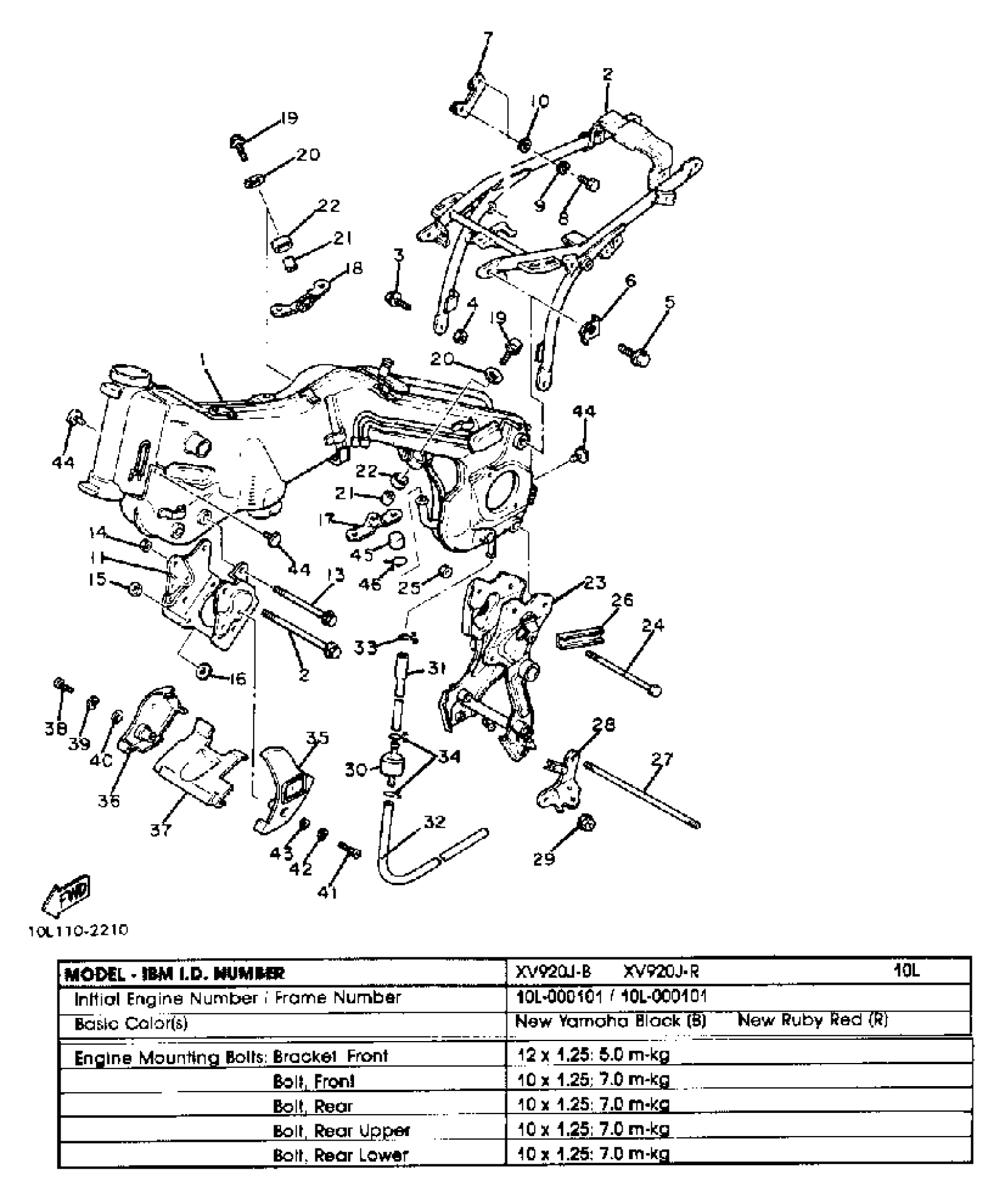

Find the part on the Frame diagram for your 1982 Yamaha XV920J (XV920J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XV920J (XV920J) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(10L-21110-00-98)

1
Out of stock

2

FRAME, REAR

10L-21190-00-98

1
Out of stock

3

BOLT, FLANGE

95817-10035-00

1

$6.85

In stock

4

1

$6.02

In stock

5

BOLT (583)

90101-10303-00

1

$6.25

In stock

6

WASHER, LOCK

90215-10192-00

1
Out of stock

7

BRACKET 2

4X7-2138L-00-00

1
Out of stock

8

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

9

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

10

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

11

STAY, ENGINE 4

4X7-21317-00-00

1
Out of stock

12

BOLT, WASHER BASED (5E3)

90105-10183-00

1

$10.25

In stock

13

BOLT, WASHER BASED (2H7)

90105-10105-00

1
Out of stock

14

NUT(4KG)

90179-10658-00

1

$7.49

In stock

15

NUT(3EF)

90179-12657-00

1

$5.32

In stock

16

WASHER, PLATE (5E3)

90201-125A3-00

—
Out of stock

17

STAY, ENGINE 2

(4X7-21315-00-00)

1
Out of stock

18

STAY, ENGINE 3

(4X7-21316-00-00)

1
Out of stock

19

BOLT (4W3)

90105-10186-00

1
Out of stock

20

WASHER, PLATE(42X)

90201-105H3-00

—

$5.68

In stock

21

COLLAR (5E3)

90387-100E2-00

—
Out of stock

22

DAMPER, RUBBER 1

4X7-21485-00-00

1
Out of stock

23

BRACKET, REAR ARM

4X7-21430-00-00

1
Out of stock

24

BOLT

90101-10074-00

1
Out of stock

25

NUT(4KG)

90179-10658-00

1

$7.49

In stock

26

WASHER, LOCK

(4X7-21491-00-00)

1
Out of stock

27

BOLT, STUD

90116-10343-00

1
Out of stock

28

BRACKET, SIDE STAND

10L-21458-00-00

1
Out of stock

29

NUT(4KG)

90179-10658-00

1

$7.49

In stock

30

FILTER ASSY

4X7-2149Y-00-00

—

$17.23

In stock

31

HOSE

(90445-11545-00)

1
Out of stock

32

HOSE (L198)

90445-11293-00

—

$6.97

In stock

33

CLIP(6M6)

90467-13M13-00

1

$6.92

In stock

34

CLIP(1JH)

90467-11106-00

—
Out of stock

35

SCOOP, AIR 1

4X7-2137W-00-98

1
Out of stock

36

SCOOP, AIR 2

4X7-2137X-00-98

1
Out of stock

37

GUIDE, AIR

4X7-2137Y-00-98

1
Out of stock

38

SCREW, PAN HEAD(3TJ)

98507-06016-00

—

$2.43

In stock

39

WASHER, SPRING

92907-06100-00

—
Out of stock

40

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

41

SCREW, PAN

98507-06040-00

—

$2.25

In stock

42

WASHER, SPRING

92907-06100-00

—
Out of stock

43

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

44

PLUG 288833190000

90338-07043-00

—

$5.35

In stock

45

CAP, TOOL BOX

5A8-21399-00-00

1
Out of stock

46

CLIP (371)

90467-14015-00

—

$7.51

In stock
